50 ST6000 Plus Autopilot Control Unit Owner,s Handbook

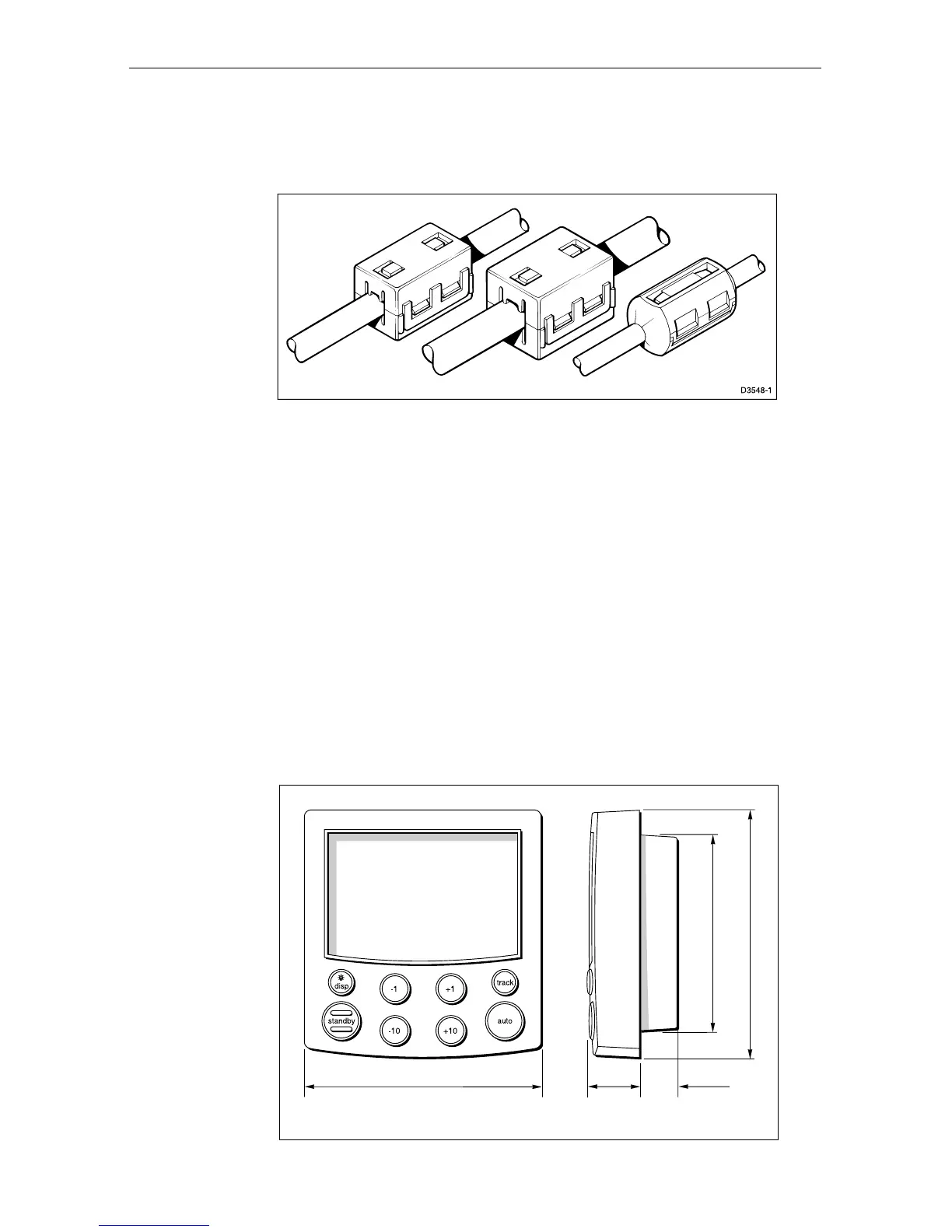

The following illustration shows the typical range of suppression
ferrites fitted to Raytheon equipment. Always use the ferrites specified
by Raytheon.
Connections to other equipment
If your Raytheon equipment is going to be connected to other
equipment using a cable not supplied by Raytheon, a suppression
ferrite MUST always be fitted to the cable close to the Raytheon unit.
Cabling
Avoid running cables through bilges where possible
Secure coiled lengths at regular intervals
Avoid running cables close to fluorescent lights, engines, radio
transmitting equipment etc
6.2 Control head
110mm (4.33in)
115mm (4.53in)
91mm (3.6in)
24mm
(0.95in)
17mm
(0.67in)
D3242-1
