UNC100 Hardware Manual V1.4 RBH Access Technologies Inc.

Page 15 of 36

UNC- N E T ( C o n t r o l l e r N e t w o r k )

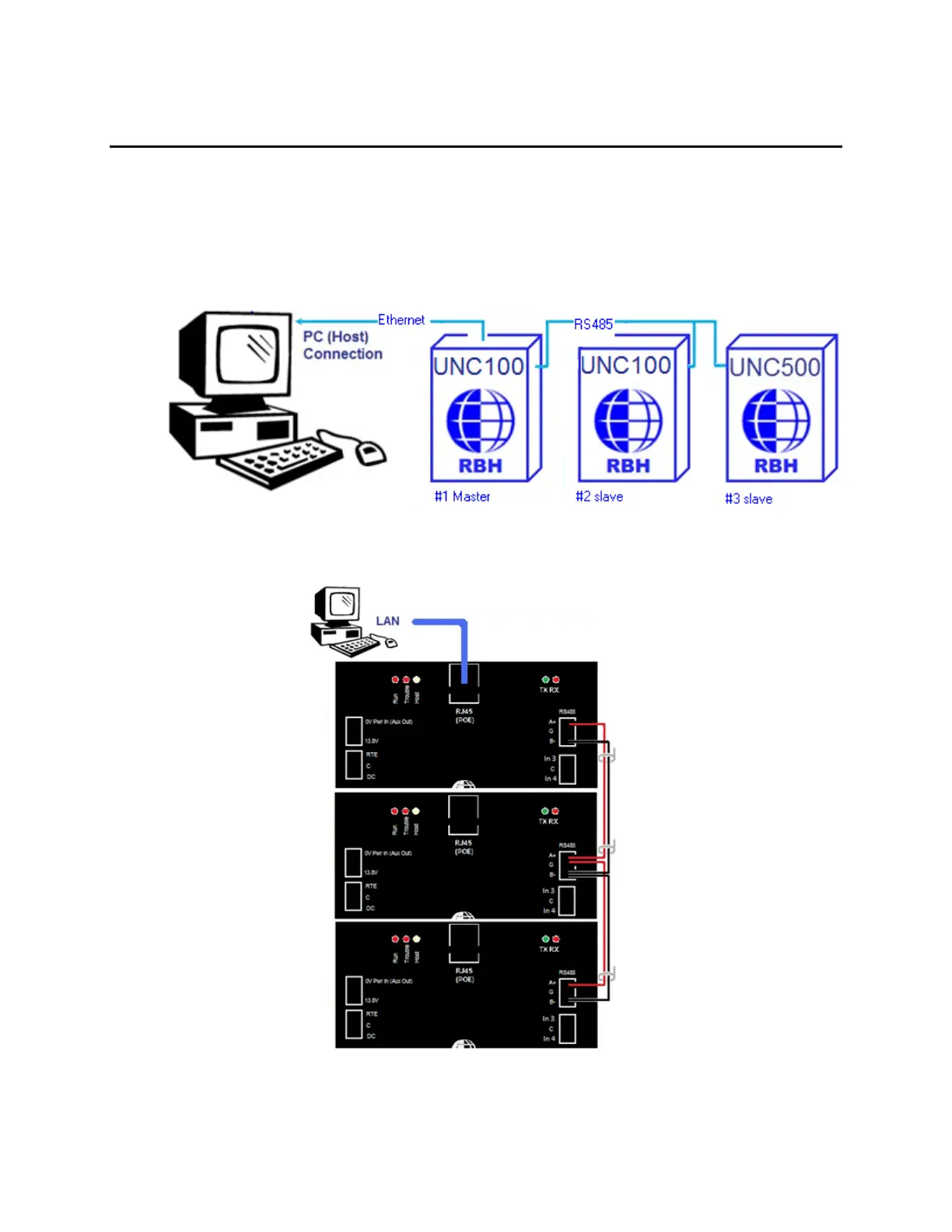

Up to fifteen network controllers (UNC-100) can be linked together and feed into a single communication

port on the PC. Controller number 1 is designated the master controller and connected to the PC using

TCP/IP communications. The remaining controllers are referred to as slaves and can only communicate to

the PC through the master UNC-100.

UNC-NET (Controller Network)
