UNC100 Hardware Manual V1.4 RBH Access Technologies Inc.
Page 8 of 36

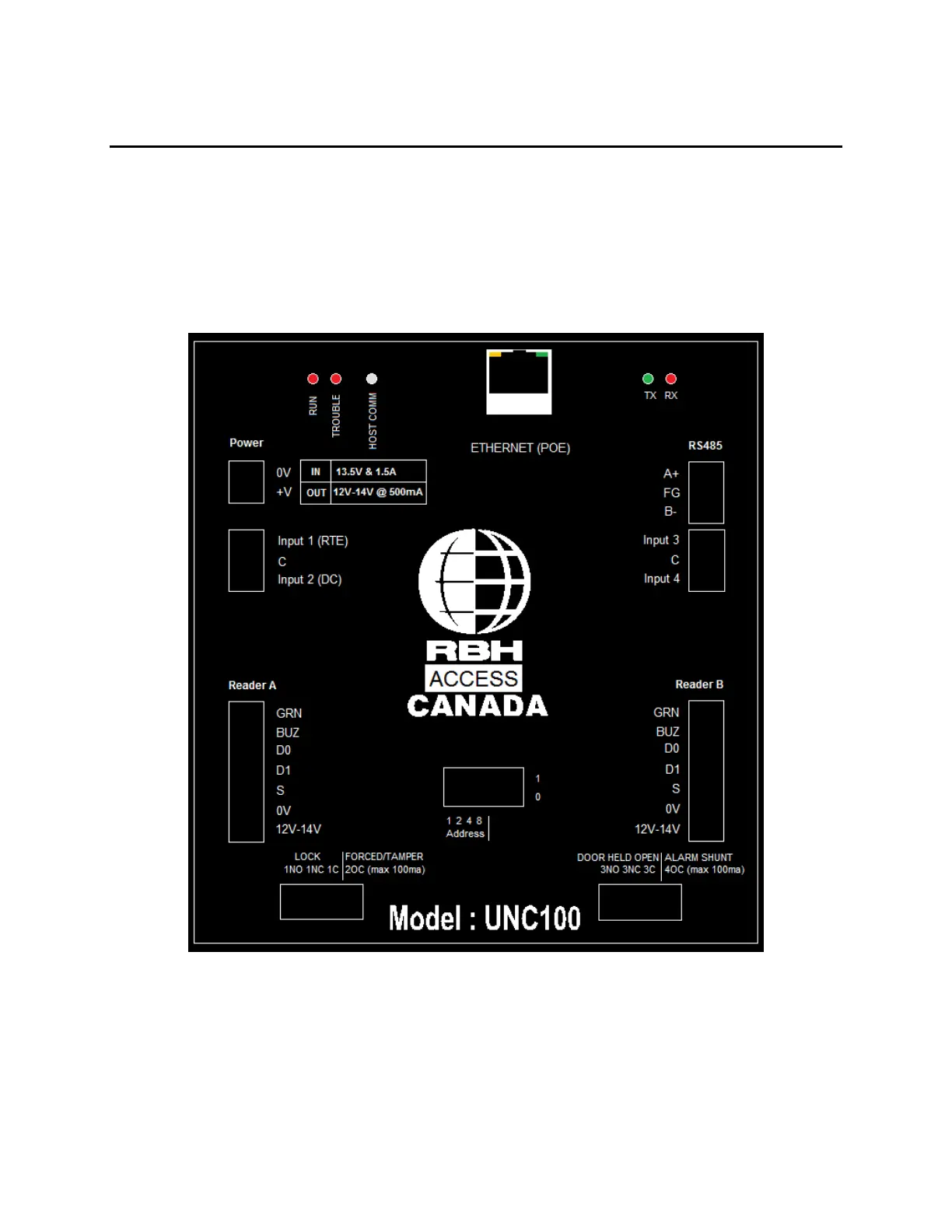

UNC1 00 C o n t r o l l e r D e s c r i p t i o n
The Axiom
™
access control system consists of one or more network controllers (UNC100). All information
required by the controller is downloaded from the PC and stored locally non-volatile flash memory. This
information includes configuration data, cardholder records, access levels, schedules, and all other records
necessary for the operation of the system. The controller operates independent of the PC and all decision-
making is performed locally, even in the event of total power loss.
Battery Protection
To protect the battery from being drained during shipping/storage of the UNC100, there is a small paper
between the battery and the panel. This must be removed before powering up the panel.
