RFCoaxial cable
White
Audio video cables are
usually color-coded red,
white, and yellow.
Ch p er C@ nec ÷ns and

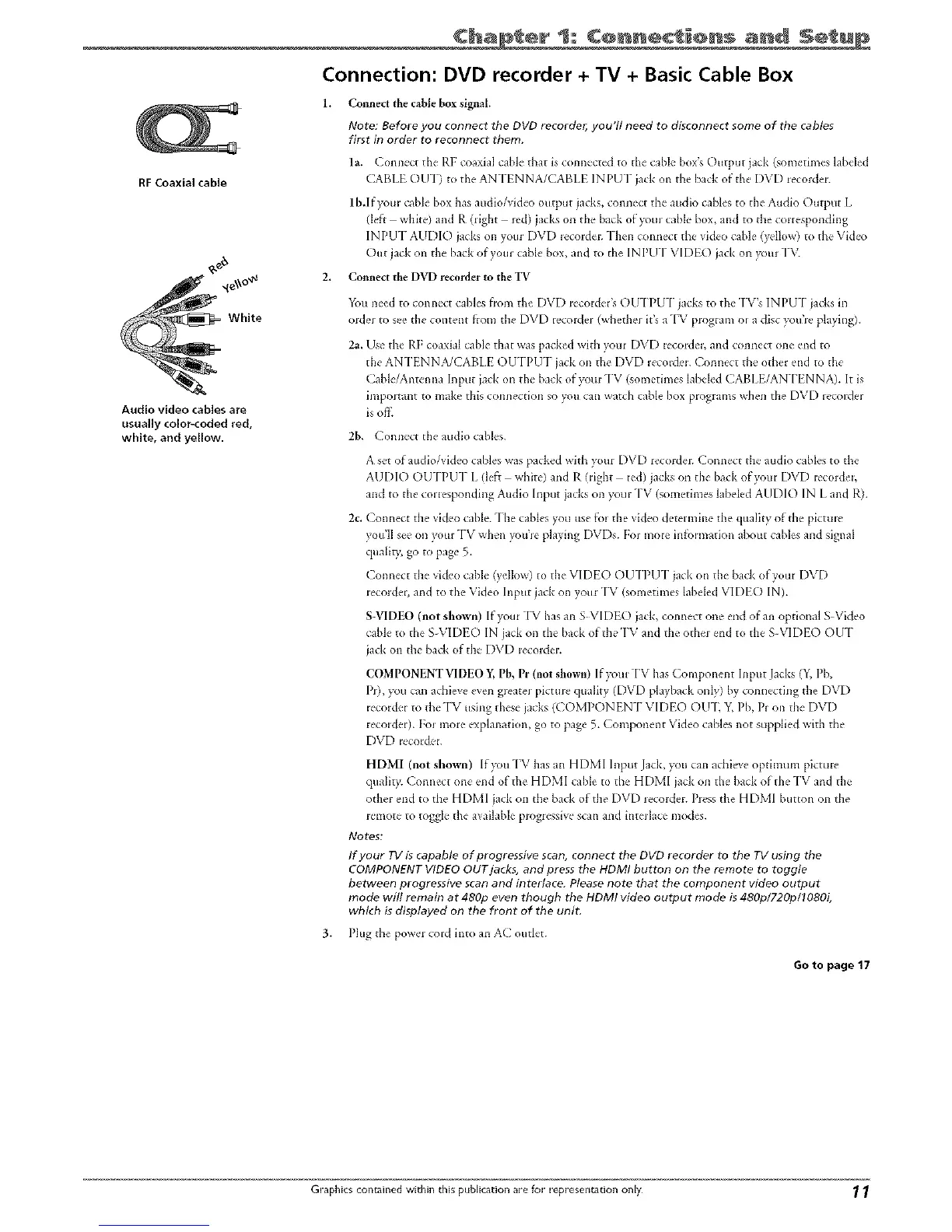

Connection: DVD recorder + TV + Basic Cable Box
1. Connect the cable box signal
Note: Before you connect the DVD recorder, you'll need to disconnect some of the cables
first in order to reconnect them,
la. Connect the RF coaxial cable that is connected to the cable box'_ Output jack (sometimes labeled
CABLE OUT) to the ANTENNA/CABLE IN PUT jack on the back of the DVD recorder.
lb.Ifyour twble box has audio/video output jacks, connect the audio cables to tile Audio Output L
Cleft white) and R (right red) jacks on the back of yore cable box, and to the corlesponding
INPU'I AUDIO jacks on youl DVD iecordei: "lhen connect the video cable (ydlow) to the Vide()
Out jack on the back ofyoul cable box, and to the INPUT VIDEO jack on )_)urTM
Connect the DVD recorder to the TV
You need to connect cables flora the DVD lecorder's OU-[PUT jacks to tl_e TV's INPU-[ jacks in
order to see the content born the DVD recordeJ (_ hether it's a'I_. I program ol a disc 5oure playing).
2a, Use the RF coaxial cable that was packed with yore DVD recorder, and connect one end to
the ANTENNA/CABLE OUTPUT jack oil tbe DVD recoldel. Connect die other end to tbe
Cable/Antemla Input jack on the back of yore TV (sometimes labeled CABLI/ANTENNA). It is
inlportant to make ibis connection so you call watch cable box programs when tbe DVD i_'corder
is off.
2b, Connect the audio cables.
A set of audio/video cables was packed with your DVD recorder: Connect the audio cables to the
AUDIO OUTPUT L Cleft white) and R (fight ted) jacks on die back of your DVD recorder,
and to the coltesponding Audio Input jacks on )<)tit TV (sometimes labeled AUDIO IN L and P.).
2c. Connect the vi&,o cable. The cables you use f_lJ the video determine the quality of the picmle
you;ll see on your TV when youJe playing DVDs. Fo_ more infom/ation about cables and signal
quality, go to page 5.
Connect the video cable (yellow) to the VIDEO OUTP! JT jack on the back of your DVD
lecorder, and to tbe Video Input jack on your TV (sometimes labeled VIDEO IN).
S-VIDEO (not shown) If yore TV has an g VIDEO jack, connect one end of an optional g-Video
cable to the S;VIDEO IN jack on the back of rile TV and the other end to the g VIDEO OUT
jack on the back of the DVD lecolder.
COMPONENTVIDEO Y_Pb, Pr (not shown) Ifyoul TV has Component hlput Jacks (Y, Pb,
Pl), you can achieve even greatel pictule quality (DVD playback only) by connectblg the DVD
lecorder to theTV using these jacks (COMPONENT VIDEO OU-[, Y, Pb, Pr on the DVD
recorder). FoJ more e×planation, go to page 5. Component Video cables not supplied with the
DVD lecorder.
HDMI (not shown) If you TV has an HDMI Input Jack, you can achieve optbmlm picture
qualit)< Connect one end oftbe HDMI cable to the HDMI iack on the back of the TV and the
other end to the HDMI jack on the back of the DVD Iecorder. Press the HDMI button on the
lemote to toggle the available piog_essive scan and interlace modes.
Notes;
If your TV is capable of progressive scan, connect the DVD recorder to the TV using the
COMPONENT VIDEO OUT jacks, and press the HDMI button on the remote to toggle
between progressive scan and interlace. Please note that the component video output
mode will remain at 480p even though the HDMI video output mode is 480p/72Op/l OBOi,
which is displayed on the front of the unit.
3. Plug the power cold i_to an AC outlet.
Go to page 17
Graphics contained within this publication are for representation only 1 1
