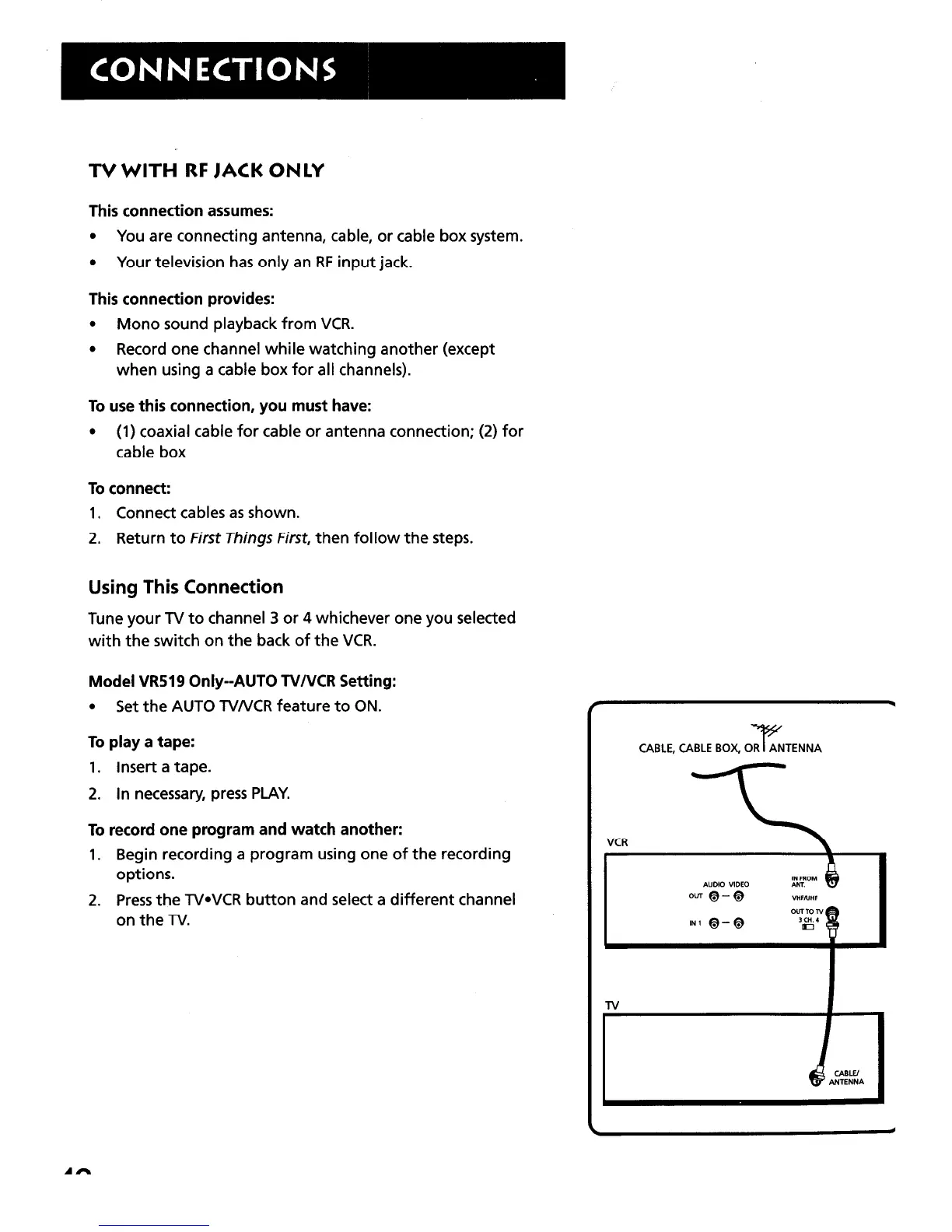

m WITH RF JACK ONLY
This connection assumes:
l
You are connecting antenna, cable, or cable box system.
l
Your television has only an RF input jack.
This connection provides:
l
Mono sound playback from VCR.
l
Record one channel while watching another (except
when using a cable box for all channels).
To use this connection, you must have:
l
(1) coaxial cable for cable or antenna connection; (2) for
cable box
To connect:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
Using This Connection
Tune your TV to channel 3 or 4 whichever one you selected
with the switch on the back of the VCR.
Model VR519 Only--AUTO TV/VCR Setting:
l
Set the AUTO TV/VCR feature to ON.
To play a tape:
1. Inset-t a tape.
2. In necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the recording
options.
2. Press the TV*VCR button and select a different channel
on the TV.
“Ty CABLE, CABLE BOX, OR ANTENNA
VCR
cc
