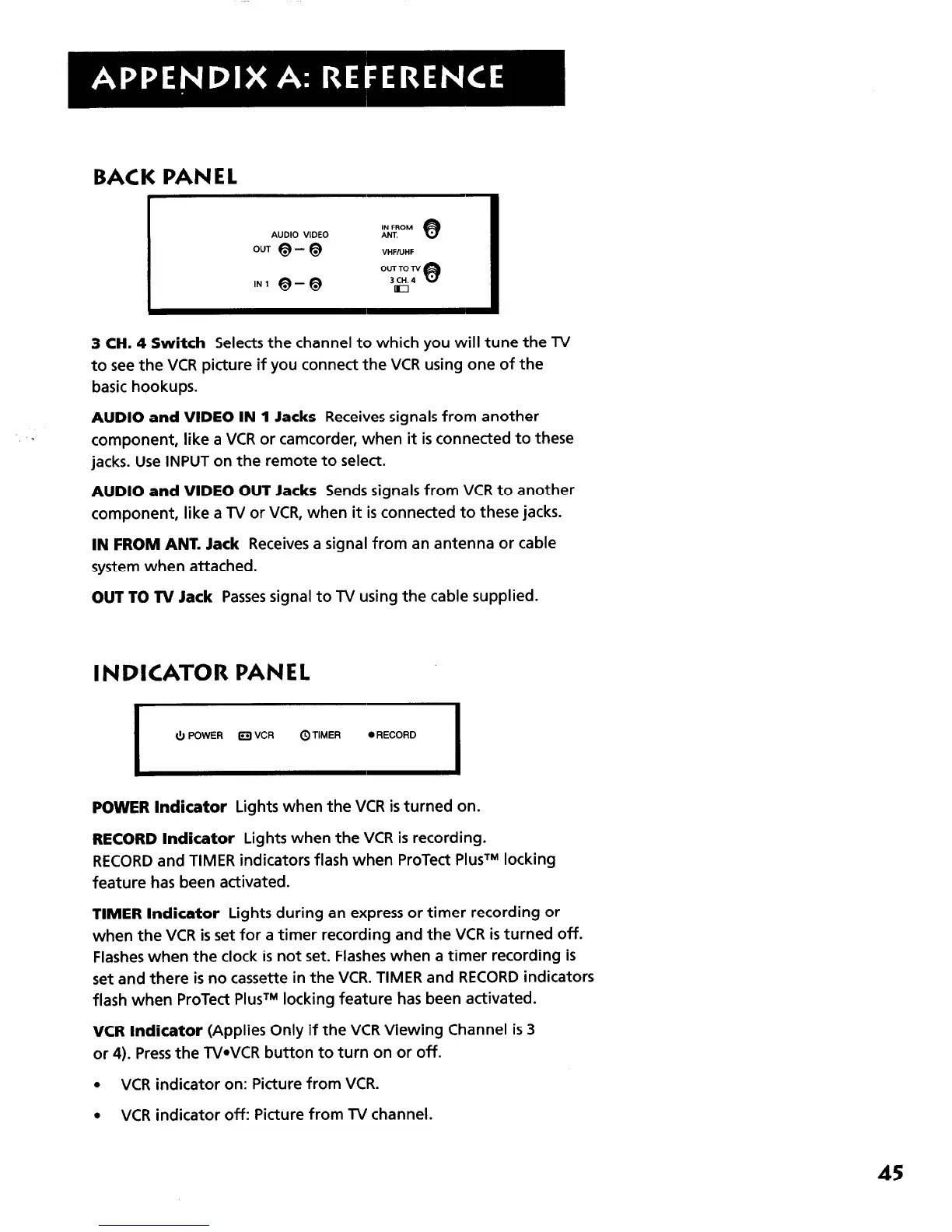

BACK PANEL
IN FROM
AUDIO VIDEO ANT.
OUT 8-8
VHFAJHF
OUTTDTV
IN1 6-8
%Y
3 CH. 4 Switch Selects
the channel to which you will tune the TV
to see the VCR picture if you connect the VCR using one of the
basic hookups.
AUDIO and VIDEO IN 1 Jacks
Receives signals from another
component, like a VCR or camcorder, when it is connected to these
jacks. Use INPUT on the remote to select.
AUDIO and VIDEO OUT Jacks
Sends signals from VCR to another
component, like a TV or VCR, when it is connected to these jacks.
IN FROM ANT. Jack
Receives a signal from an antenna or cable
system when attached.
OUT TO TV Jack
Passes signal to TV using the cable supplied.
INDICATOR PANEL
I
c.!J POWER ~VCR
0 TIMER 0 RECORD
I
POWER Indicator
Lights when the VCR is turned on.
RECORD Indicator
Lights when the VCR is recording.
RECORD and TIMER indicators flash when ProTect PlusTM locking
feature has been activated.
TIMER Indicator
Lights during an express or timer recording or
when the VCR is set for a timer recording and the VCR is turned off.
Flashes when the clock is not set. Flashes when a timer recording is
set and there is no cassette in the VCR. TIMER and RECORD indicators
flash when ProTect PlusTM locking feature has been activated.
VCR Indicator
(Applies Only if the VCR Viewing Channel is 3
or 4). Press the TV*VCR button to turn on or off.
l
VCR indicator on: Picture from VCR.
l
VCR indicator off: Picture from TV channel.
45
