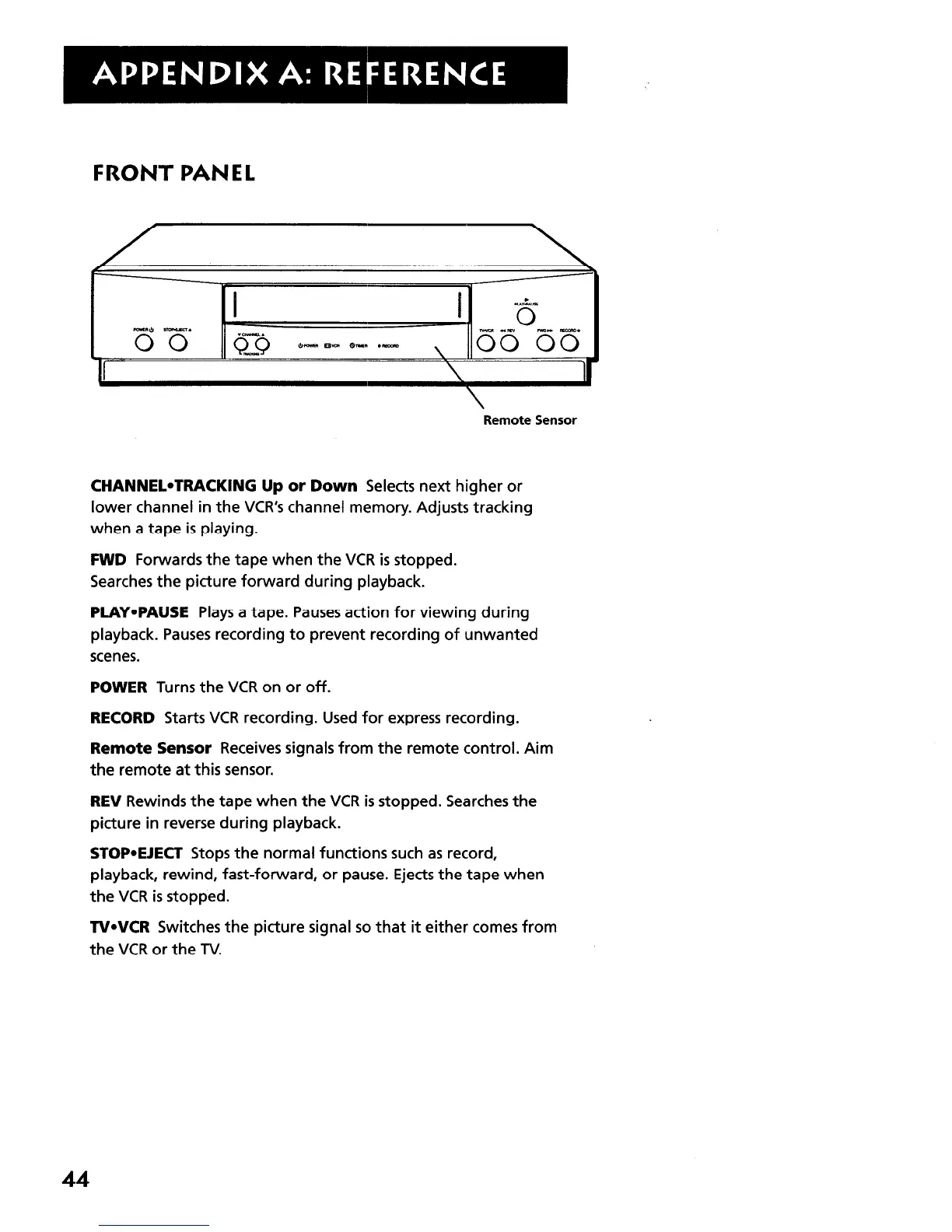

FRONT PANEL
\
Remote Sensor
CHANNEbTRACKING Up or Down Selects next higher or
lower channel in the VCR’s channel memory. Adjusts tracking
when a tape is playing.
FWD Forwards the tape when the VCR is stopped.
Searches the picture forward during playback.
PLAY*PAUSE Plays a tape. Pauses action for viewing during
playback. Pauses recording to prevent recording of unwanted
scenes.
POWER Turns the VCR on or off.
RECORD Starts VCR recording. Used for express recording.
Remote Sensor Receives signals from the remote control. Aim
the remote at this sensor.
REV Rewinds the tape when the VCR is stopped. Searches the
picture in reverse during playback.
STOP*EJECT Stops the normal functions such as record,
playback, rewind, fast-forward, or pause. Ejects the tape when
the VCR is stopped.
TVd/CR Switches the picture signal so that it either comes from
the VCR or the TV.
44
