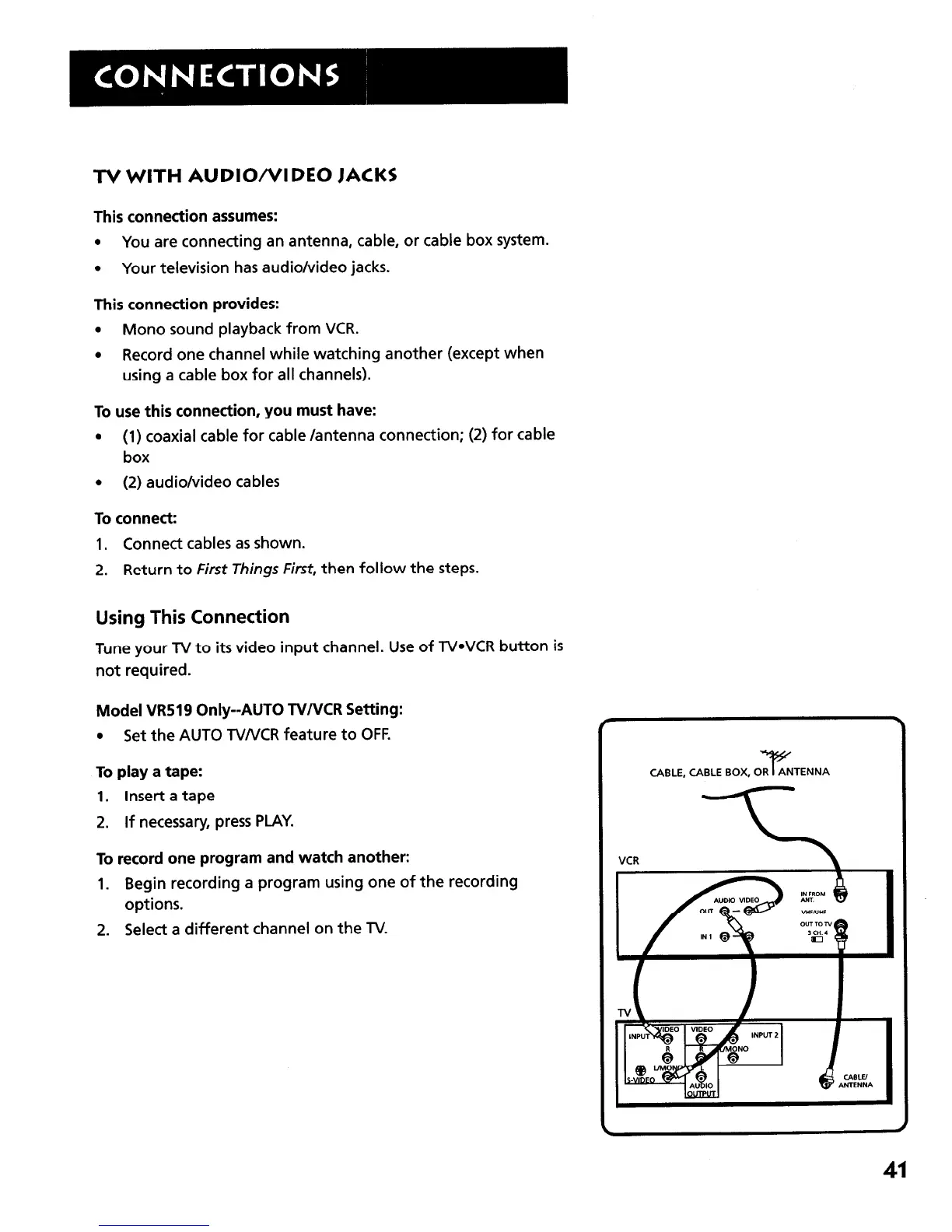

TV WITH AUDIO/VIDEO JACKS
This connection assumes:
l
You are connecting an antenna, cable, or cable box system.
l
Your television has audio/video jacks.
This connection provides:
l
Mono sound playback from VCR.
l
Record one channel while watching another (except when
using a cable box for all channels).
To use this connection, you must have:
l
(1) coaxial cable for cable /antenna connection; (2) for cable
box
l
(2) audio/video cables
To connect:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
Using This Connection
Tune your TV to its video input channel. Use of TVWCR button is
not required.
Model VR519 Only--AUTO TVNCR Setting:
l
Set the AUTO TV/VCR feature to OFF.
To play a tape:
1.
Insert a tape
2. If necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the recording
options.
2. Select a different channel on the TV.
T-+ CABLE, CABLE BOX, OR ANTENNA
VCR
To Next Page
