15 | P a g e
Example: For a flue run of 8.5mts
Flue run length N = 8.5mts
Minimum insulation required X = N - 1 mts
= 8.5 - 1 = 7.5 mts
Insulation is supplied in lengths of 1000mm.

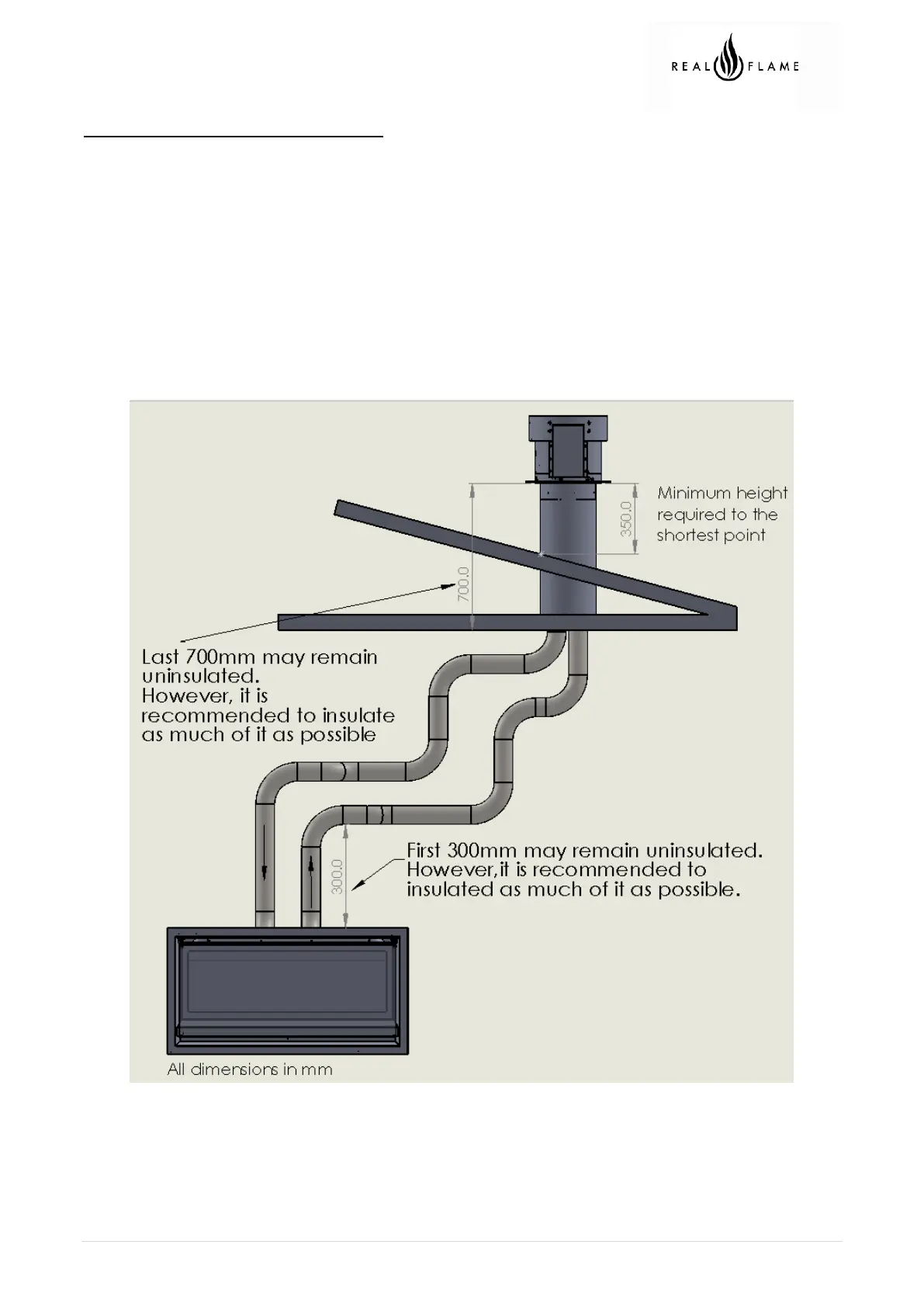

Initial 300mm from appliance exit may remain uninsulated (Refer image below)
Last 700mm from rooftop termination down may remain uninsulated.
Note: The insulation can be cut to shorter lengths to allow for bends.
