2 Startup Procedure
2.1 EVB Download image Wire Map

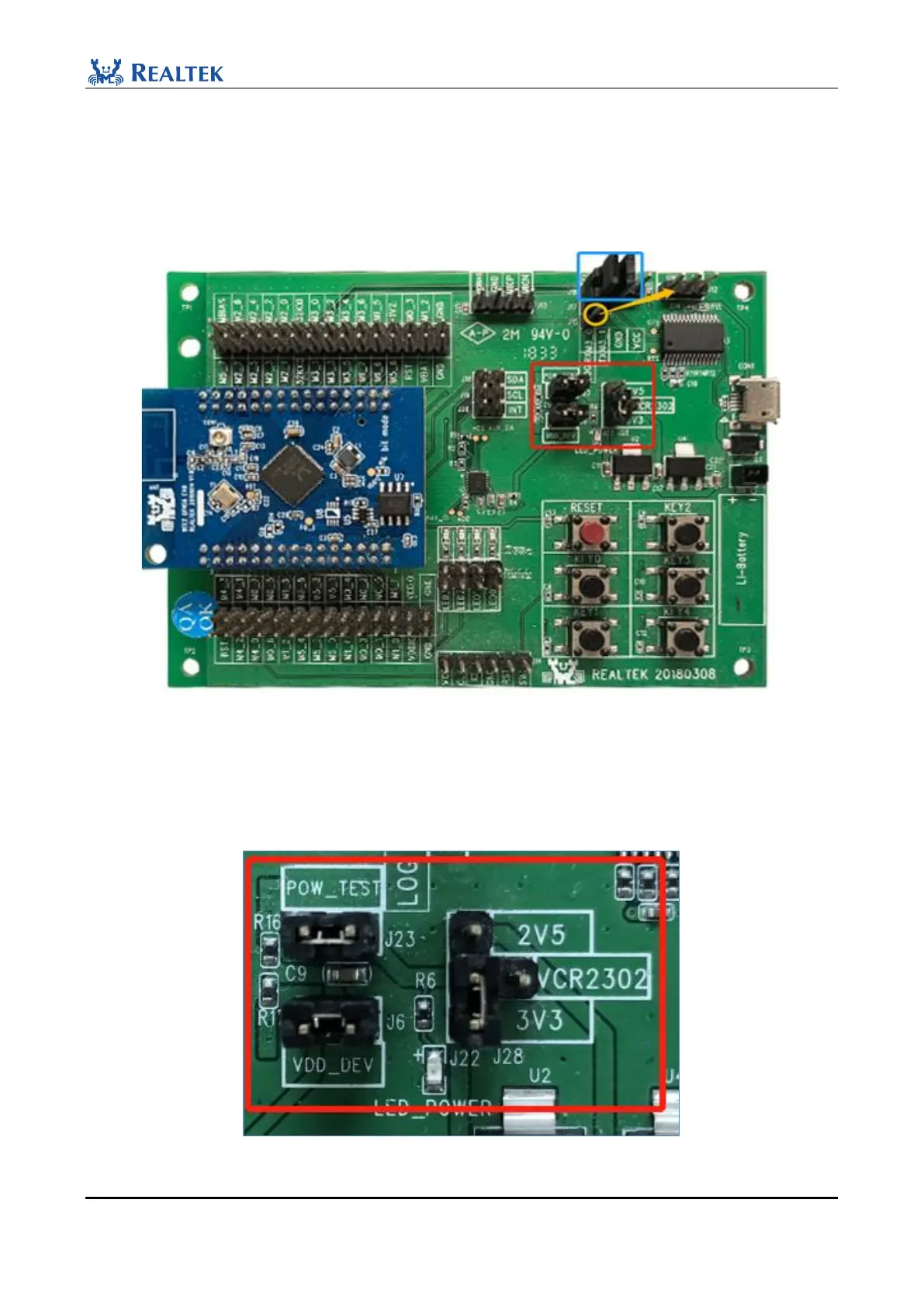

Figure 2-1 EVB Wire Map
As shown above:
1. When the EVB board is in normal use, the three jumper caps in the red box need to be connected to supply power
to the sub-board.
Figure 2-2 EVB board jumper connection
