3. Stand & Wheel Kit Assembly (Optional) - cont.
3.4 Fitting the bandsaw to the stand
CAUTION! The machine is heavy.
Additional help or a suitable lifting
device or support will be required for
lifting the machine onto the stand.
1. Lift the bandsaw over the stand and
place the long fixing bolts through the
four location holes in the bandsaw base
Fig.3.19.
2. Secure the bandsaw to the stand with
the remaining washers and
nuts Fig.3.20.

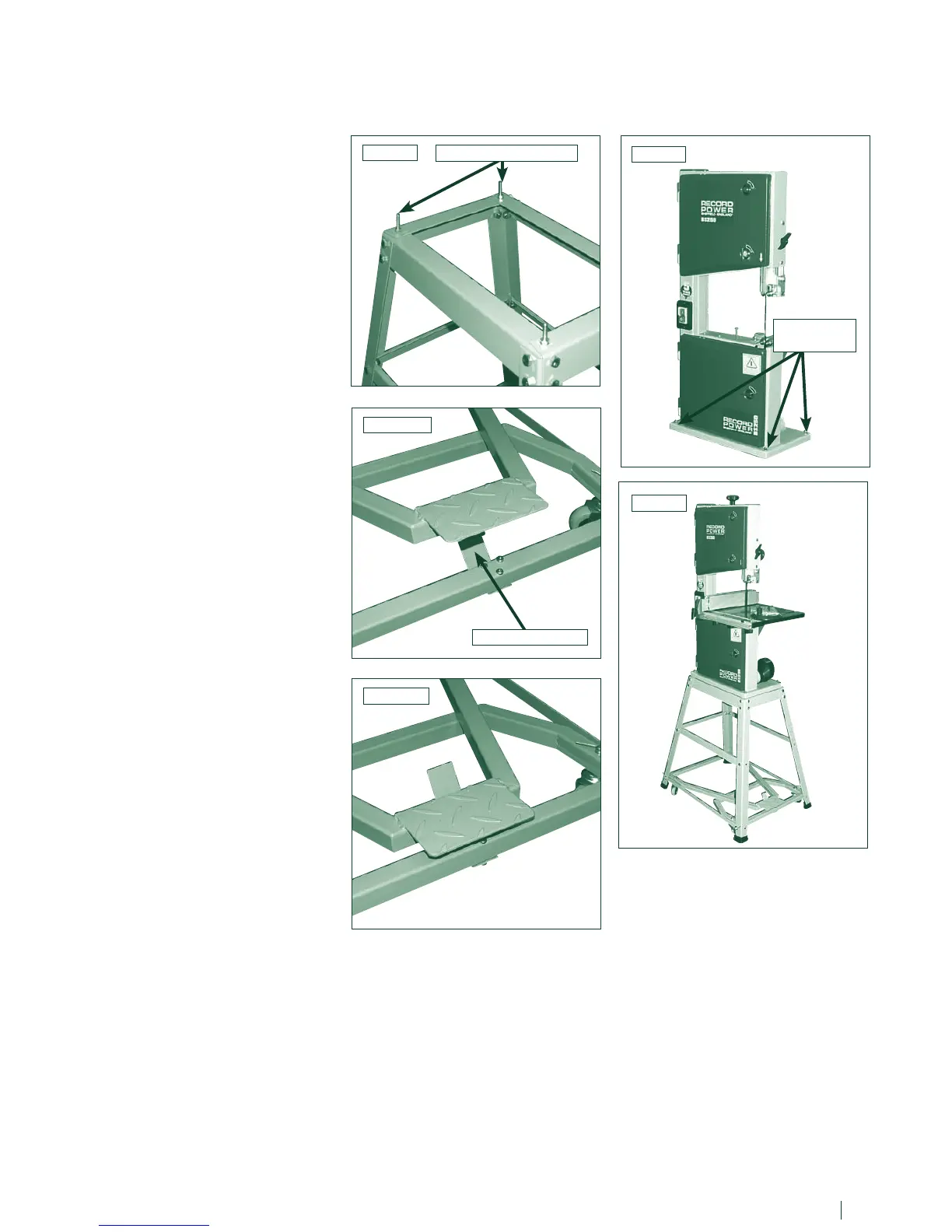

Fig.3.17
LONG FIXING BOLTS
10 11
Note
Before fully tightening all of the
fixtures on the stand ensure that the
long fixing bolts and nuts are fitted
through each top corner of the stand.
Once this is complete the rest of the
stand can be fully tightened and the
bandsaw can be fitted.
1. Feed the long fixing bolts up through
the stand and secure the four corners
using the washers and bolts provided
Fig.3.17.
2. Once the stand is fully tightened
adjust the position of the release pedal
so it fastens the operating pedal down
Fig.3.18A and Fig.3.18B. The bandsaw
can now be fitted
.
Fig.3.20
Fig.3.19
LOCATION
HOLES
Fig.3.18A
Fig.3.18B
RELEASE PEDAL
