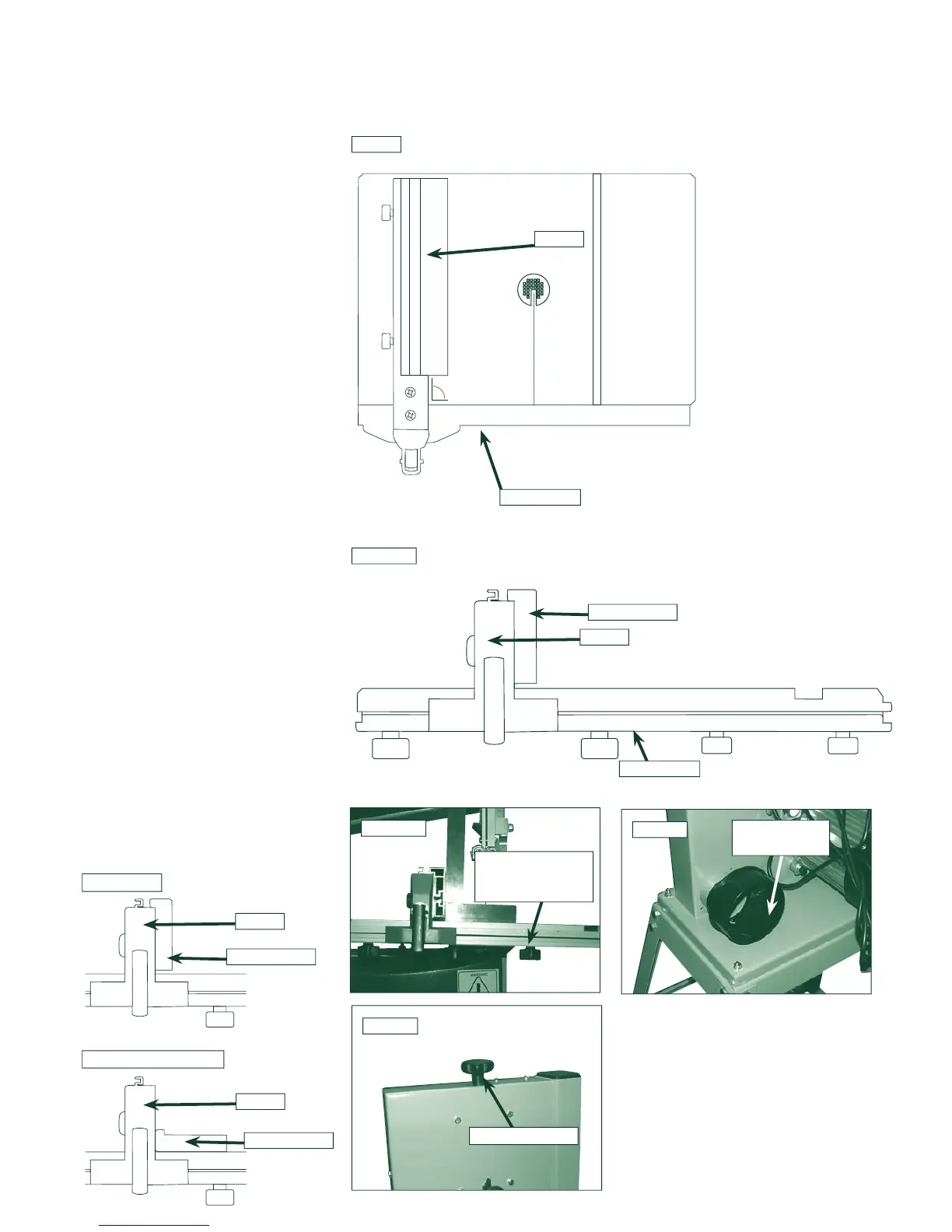

4.4 Fence alignment 1
Adjustment can be made to the fence
in relation to being square to the blade.
This is done by slackening the four star
knobs on the fence rail and adjusting the
rails position until the fence is square to
the blade.
Please note this adjustment must be
made with the fence in a clamped
position Fig.4.9.
4.5 Fence alignment 2
Check that the fence is
90º to the table
using a suitable square, there is no need
for adjustment as this area is factory
set Fig.4.10A. However if settings have
slipped during transit slight adjustment
may be needed. The best way to adjust
this is by adding extra washers or shims
between the star knobs and the
fence rail
where required Fig.4.10B.
Tip
When an accurate cut is crucial it is
good practi
ce to check all settings
before machining the workpiece and
make a test cut with some scrap
material.
4.6 Fitting the tension knob
To fit the tension knob simply place
into the slot on the top of the machine
Fig.4.11.
4.7 Fitting the extraction port
If the machine is to be used with a
100mm dust extractor, it is necessary to
fit the adapter supplied. Simply
slide this
onto the existing port
Fig.4.12.
4.8 Sub Fence
The sub fence is supplied for use with
thin material to enable the blade guard to
be lowered over the workpiece. The sub
fence can be re-fitted as seen below.
4. Machine Assembly - cont.
