Record Power BS250 - Stand Assembly and Bandsaw Attachment

3. Stand & Wheel Kit Assembly (Optional) - cont.
Note: When assembling this legstand
Do Not fully tighten the nuts and bolts
until the assembly is complete. Finger
tight should be sufficient.

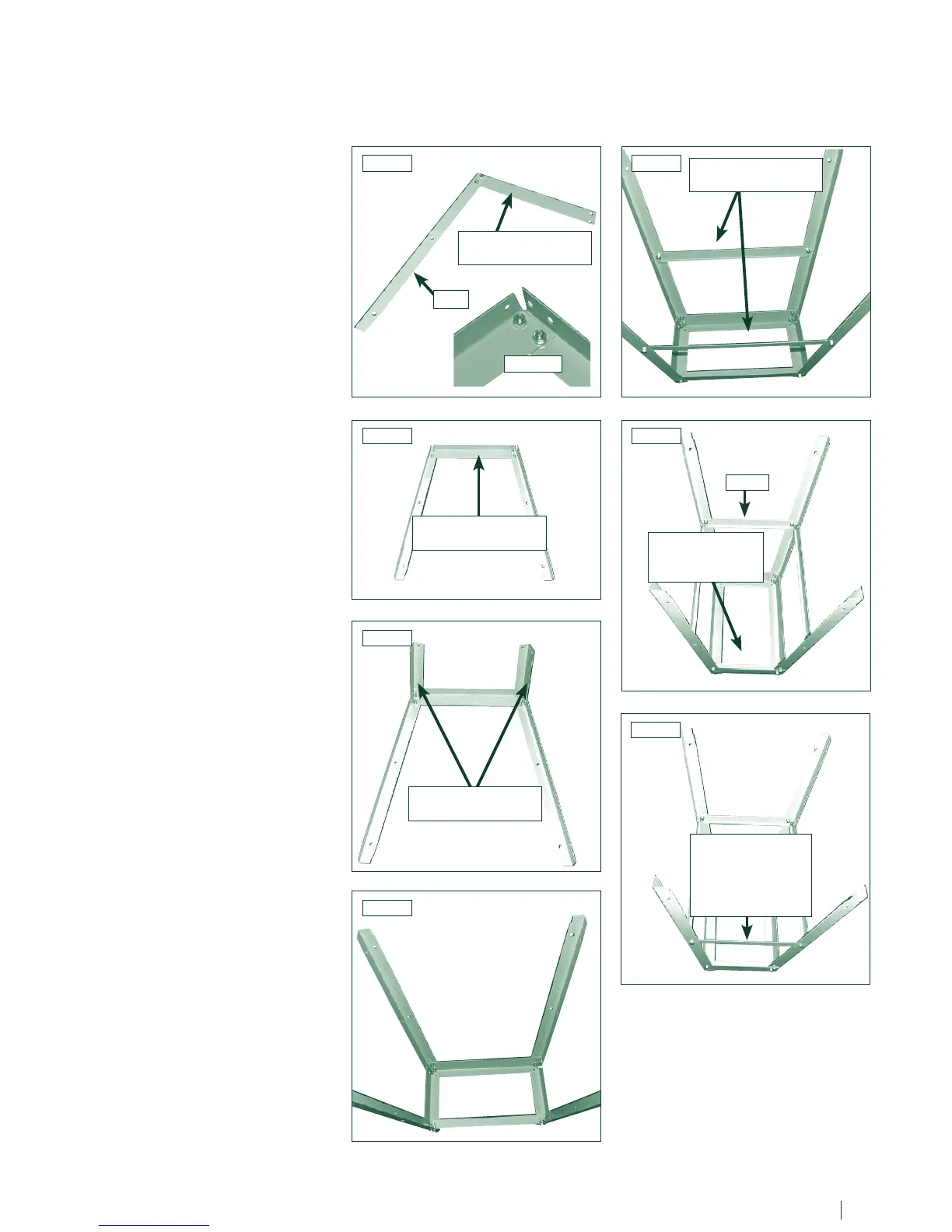

3.2 Stand Assembly
1. Locate the first leg and secure it to
one of the long top brace supports using
the nuts, bolts and washers supplied
Fig.3.2 and Fig.3.2B.
2. In the same way, attach the second
leg to the brace support
Fig.3.3.
3. Locate the short top brace supports
and fix the to the legs as shown Fig.3.4.
4. Continue in this way until all of the
legs and top brace supports have been
fitted Fig.3.5.
5. Locating holes a third of the way
down each leg are for securing the
mid
brace supports. Fix the long mid brace
supports to the frame using the nuts,
bolts and washers Fig.3.6.
6. Finally, fit the short mid brace support
to one of the shorter sides
Fig.3.7.
Note
The side with the short mid brace
support fitted will be referred to as the
back of the stand. This leaves the front
area free for wheel kit operation
.
Note
If you are not fitting the wheel kit,
attach the final brace as shown in
Fig.3.8.
Fig.3.3
Fig.3.4
Fig.3.5
Fig.3.6Fig.3.2
Fig.3.7
Fig.3.2B
BACK
LONG TOP BRACE
SUPPORT
SHORT TOP BRACE
SUPPORTS
8 9
Fig.3.8
LONG TOP BRACE
SUPPORT
LONG MID BRACE
SUPPORTS
LEG
SHORT MID
BRACE SUPPORT
TO BE FITTED IF
THE WHEEL KIT
IS NOT REQUIRED
SPACE LEFT
FOR WHEEL KIT
OPERATION
