4. Stand & Wheel Kit Assembly - cont.
4.4 Fitting the bandsaw to the stand
CAUTION! The machine is heavy.
Additional help or a suitable lifting
device or support will be required for
lifting the machine onto the stand.

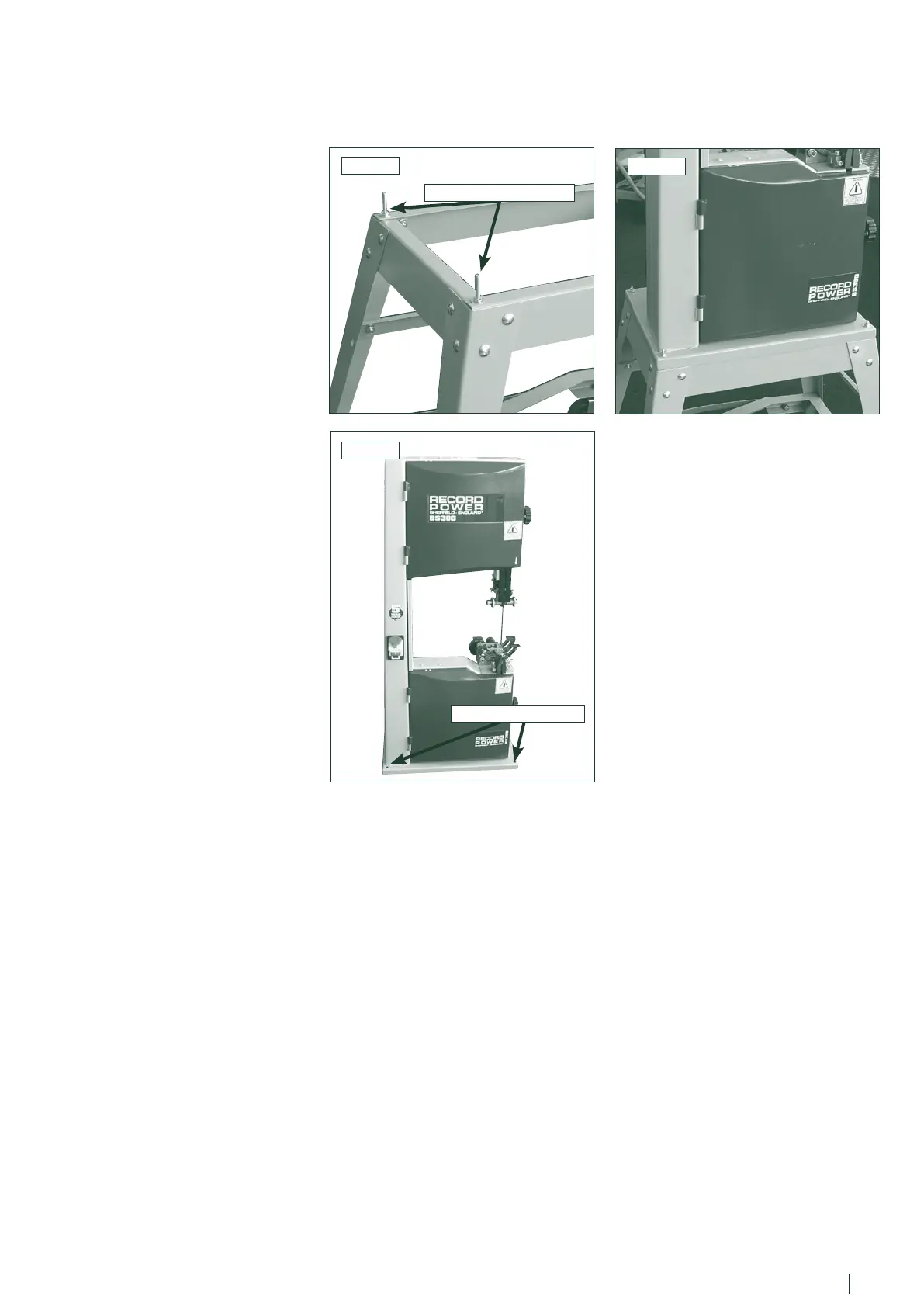

1. Feed the long fixing bolts up through
the stand and secure the four corners
using the washers and bolts provided
Fig.4.17.
2. Lift the bandsaw over the stand.
Locate the long fixing bolts over the four
holes in the bandsaw base Fig.4.18 and
lower the bandsaw onto the mounted
long fixing bolts Fig.4.19.
3. Secure the bandsaw to the stand with
the remaining washers and nuts Fig.4.19.
Fig.4.17
Fig.4.19
Fig.4.18
LONG FIXING BOLTS
LOCATING HOLES
14 15
