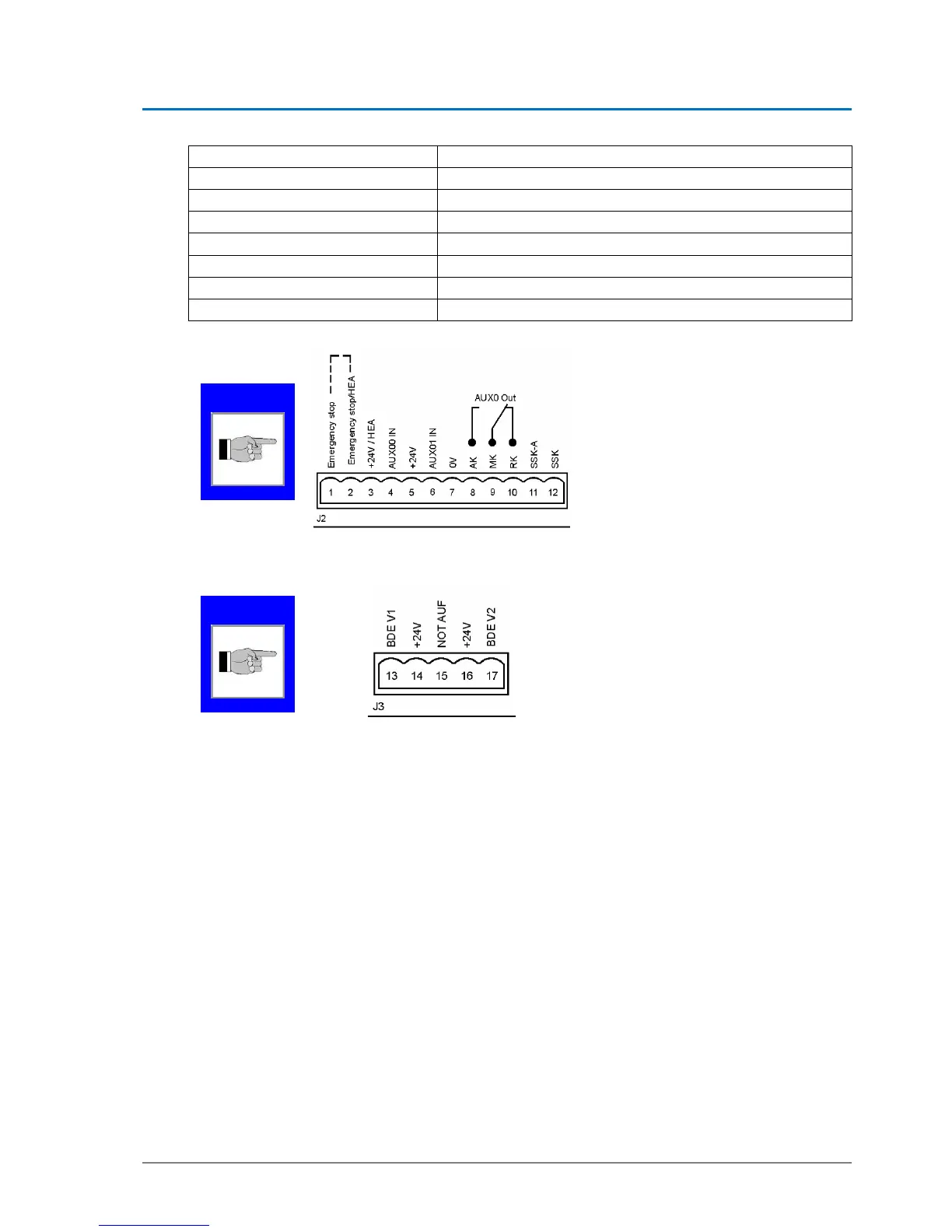

Control module STM 20 RED/DUO 3
B6_Control_SYS20_EN_V1.3.doc Art. Nr. 102-020401135 15 / 36
J11
Extra printed circuit board ELS (ZLP-ELS)
J12
Extra printed circuit board AKI (ZLP-AKI)
J13
CAN bus plug for FPC-servicing
J14
Reserved for future modules
J15
Encoder motor 1
J16
Encoder motor 2 (not necessary for DUO-applications)
J17
Reserved for future modules
J18
Reserved for future modules
Emergency stop:
Cuts the motor off the amplifier
Door can be moved manually
Only for DUO-applications
Inapplicable for RED-applications
Emergency open:
Opens the door if not locked
Only for RED-applications
NOTE
NOTE
