Control module STM 22 RED/DUO 6
B6_Control_SYS20_EN_V1.3.doc Art. Nr. 102-020401135 33 / 36
J5
Battery 2 (just use for RED-applications)
J6
Locking
J7
Motor brake
J8
ATE motor 1 (The DUO-application can be driven with 1 mo-
tor only)
J9
ATE Motor 2
J10
CAN-Bus / CAN Sensors
J11
Additional printed circuit board ELS (ZLP-ELS)
J12
Additional printed circuit board AKI (ZLP AKI)
J13
CAN-Bus service plug for FPC
J14
Reserved for future modules
J15
Encoder Motor 1
J16
Encoder motor 2 (not necessary for DUO-applications)
J17
Reserved for future modules
J18
Reserved for future modules

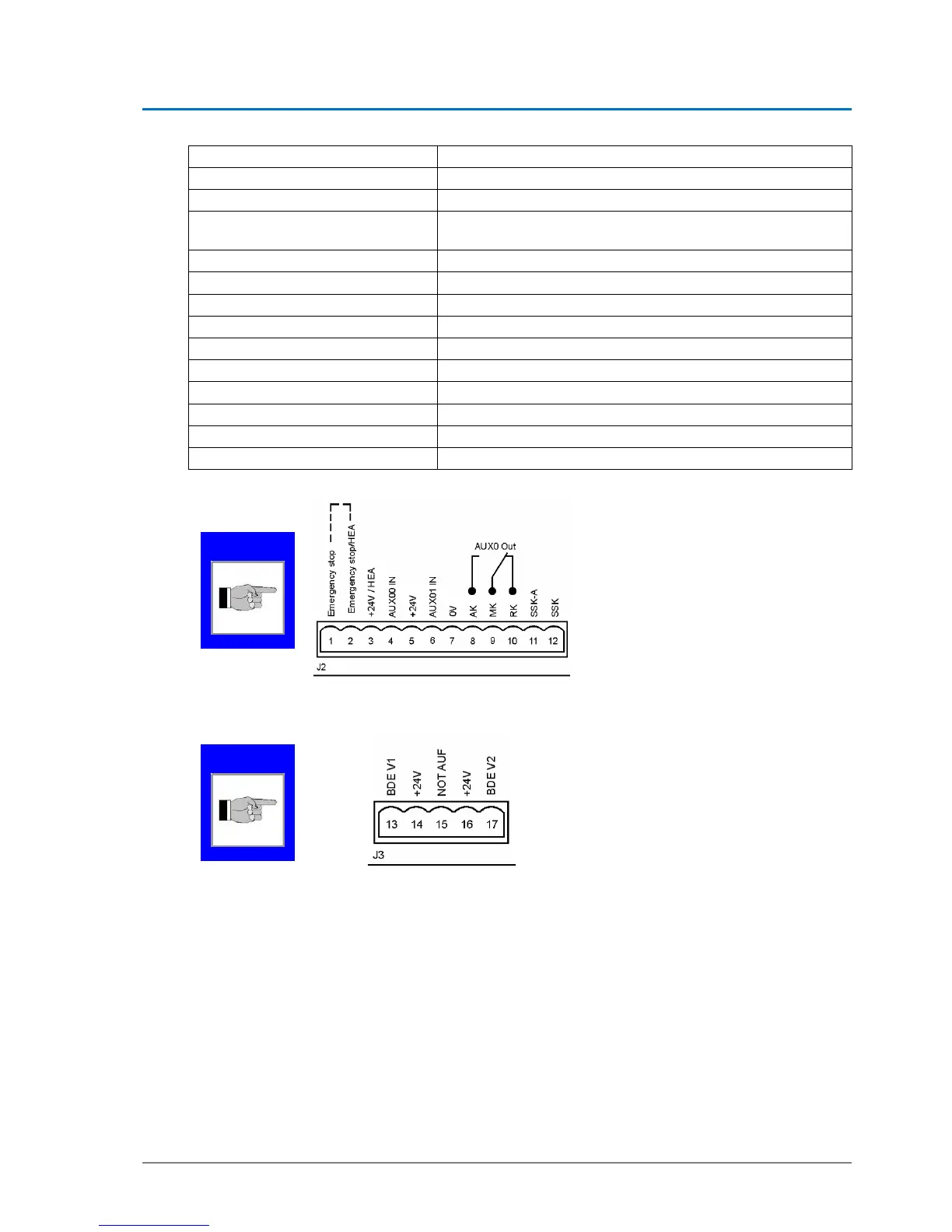

Emergency stop:
Cuts the motor off the amplifier
Door can be moved manually
Only for DUO-applications
Inapplicable for RED-applications
Emergency open:
Opens the door if not locked
Only for RED-applications
NOTE
NOTE
