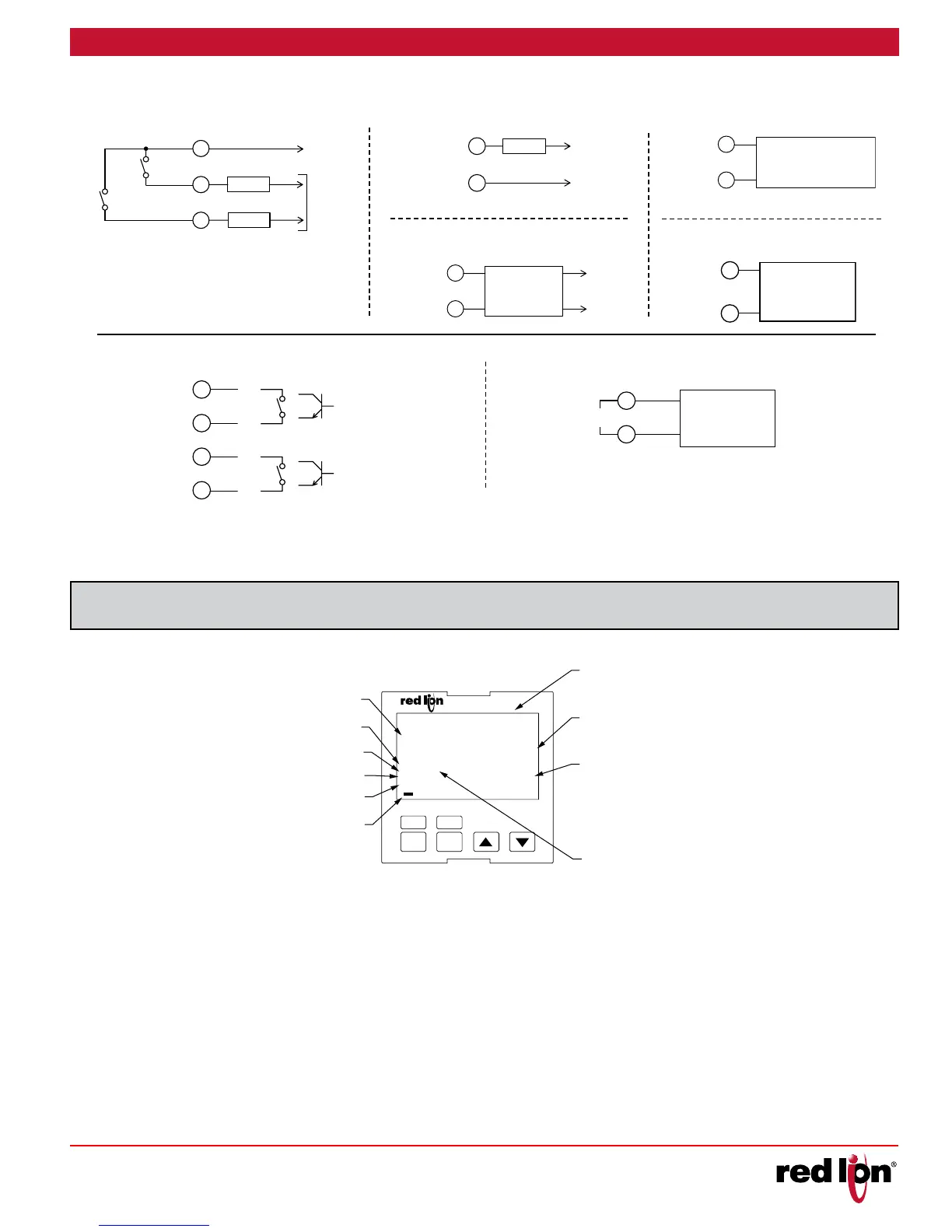

In the Display Loop, the D key is pressed to identify the display
parameter and to advance to the next enabled display item. In all
other loops, the D key is pressed to exit (or escape) directly to the
first enabled Display Loop item.
The P key is pressed to advance to the next parameter, to
activate a selection/value change, and to enter the Hidden Loop
when held for three seconds.
The Arrow keys are used to scroll through parameter
selections/values and in the Configuration Loop they are
used to scroll to the appropriate Parameter Module.
The F1/F2 keys are used to perform the function assigned
to the key in Configuration Module 1.
BJ
F1
F2
D
P
°
ALM 1
ALM 2
ALM 3
OUT 1
OUT 2
AT
MAN
REMOTE
BOTTOM DISPLAY
ILLUMINATES WHEN TEMPERATURE INPUT
IS SELECTED (°F or °C).
- DISPLAYS TEMPERATURE/PROCESS VALUE
- DISPLAYS PARAMETER NAME IN
CONFIGURATION LOOP.
- PROGRAMMABLE SECONDARY DISPLAY
- INDICATES DISPLAY, PARAMETER AND
HIDDEN LOOP SELECTIONS.
ILLUMINATES WHEN MAIN
CONTROL OUTPUT IS ACTIVE.
ILLUMINATES WHEN CORRESPONDING
ALARM OUTPUT IS ACTIVE.
ILLUMINATES WHEN CONTROLLER
IS IN AUTO TUNE MODE.
ILLUMINATES WHEN CONTROLLER
IS IN MANUAL MODE.
ILLUMINATES WHEN SECONDARY
OUTPUT IS ACTIVE.
FLASHES TO INDICATE A
RUNNING PROFILE.
ILLUMINATES WHEN IN REMOTE
INPUT MODE.
:
=
12
LOAD
AC/DC
Power (-)
LOAD
COMM
NO
NO
AC/DC
Power (+)
AL 2
AL 1
AC/DC
Power
LOAD
COMM (-)
NO (+)
AC Powe
SSR
COMM (-)
NO (+)
POWER
UNIT
+
-
AC
AC
User 1
+
User 2
+
-
-
D+
D-
RS485
RECEIVING
DEVICE
+
-
RS-485
ANALOG INPUT
CONTROL
DEVICE
COMM (-)
NO (+)
IN +
IN -
* See unit label for terminal identification.
USER 2/RETRANS
+
-
-
+
IN-
IN+
ANALOG INPUT
CONTROL
DEVICE
To Next Page
