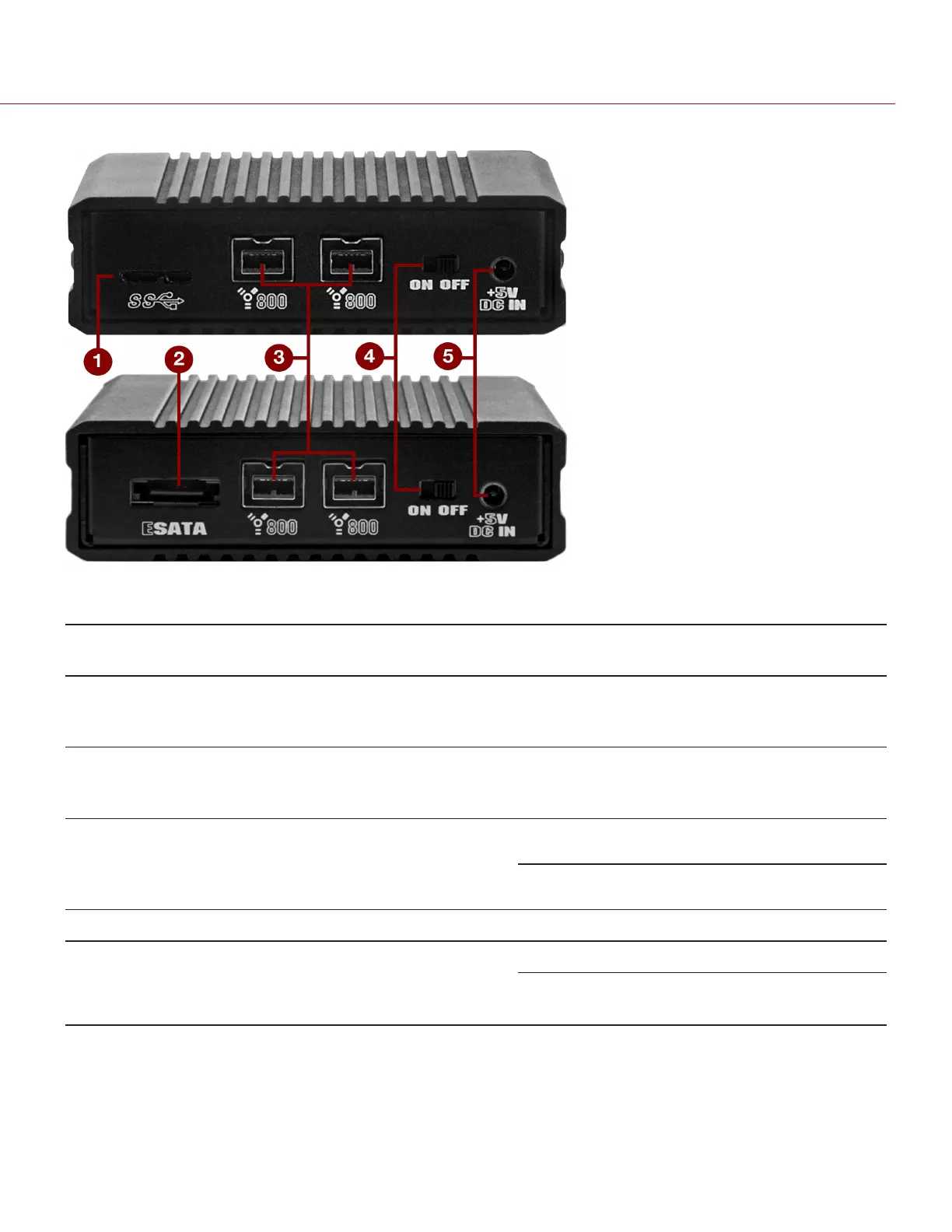

Figure: RED STATION REDMAG 1.8" (MINI)-USB 3.0 (Rear) and RED STATION REDMAG 1.8" (MINI)-eSATA (Rear)
# CONNECTOR DESCRIPTION COMPATIBLE PARTS PART
NUMBERS
1 USB 3.0 slot Connect to a computer via a USB
3.0 connection (only on P/N 750-
0036)
RED STATION USB 3.0 Cable (24") 790-0314
2 eSATA connector
1
Connect to a computer via an
eSATA connection (only on P/N
750-0035)
RED STATION eSATA Cable (24") 790-0250
3 FireWire 800 Use either connector to connect to
a computer or additional RED
STATIONs via a FireWire 800
connection
RED STATION FW800 Cable (2") 790-0253
RED STATION FW800 Cable (24") 790-0251
4 On/Off Switch Turn on/off N/A N/A
5 +5 VDC IN +5 VDC power in RED STATION AC Power Adaptor 790-0292
RED STATION USB to DC Power
Cable (24")
790-0316
