RED STATION BASE INCLUDED COMPONENTS
The items listed in the table below ship with the RED STATION Base.
ITEM PARTNUMBER
RED STATION Base 750-0004
RED STATION Base AC POWER ADAPTOR 790-0308
RED STATION DC Power Coupler (2") 790-0249

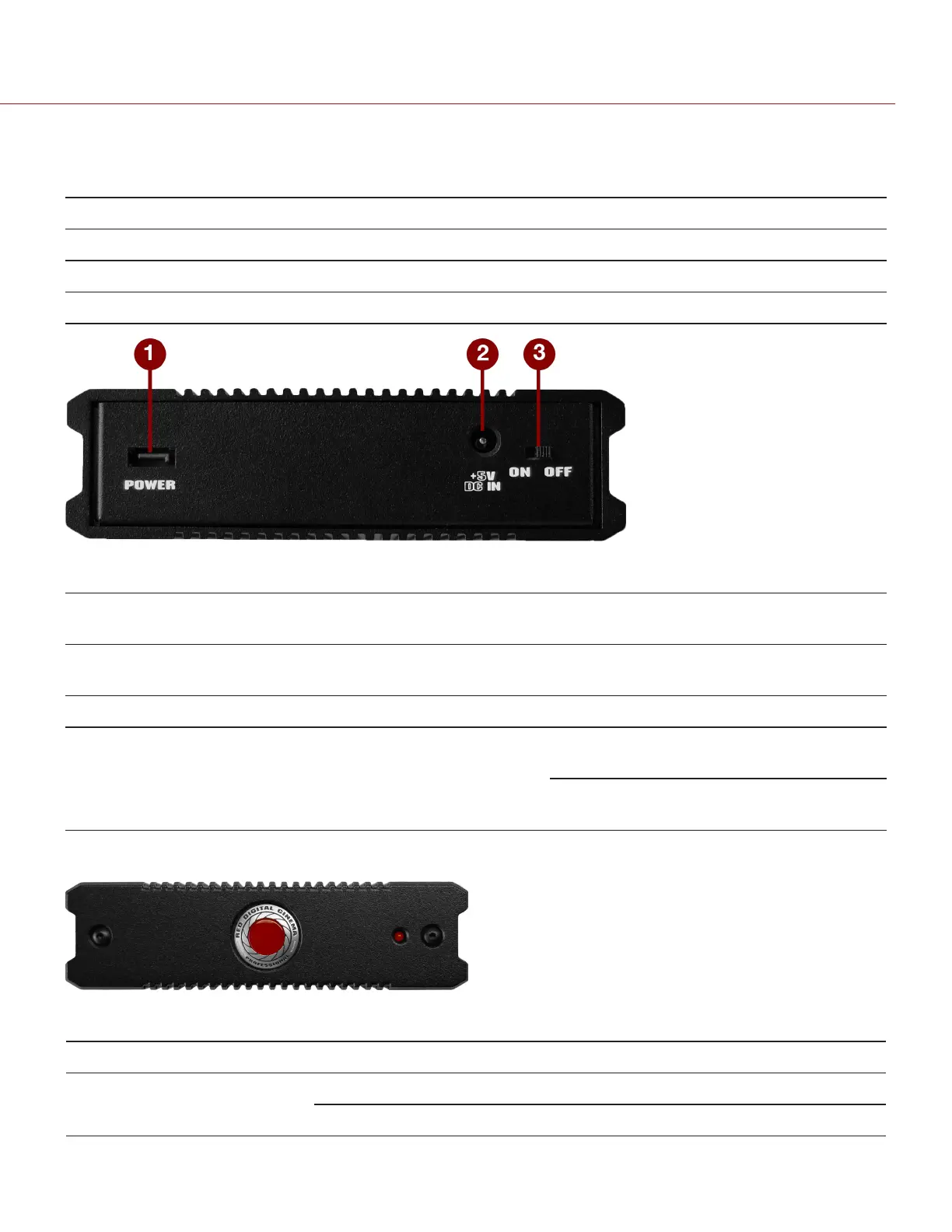

Figure: REDSTATIONBase (Rear)
# CONNECTOR DESCRIPTION COMPATIBLE PARTS PART
NUMBERS
1 POWER Allows RED STATION Base to power up to three
(3) RED STATIONs
RED STATION DC Power
Coupler (2")
790-0249
2 On/Off Switch Turn on/off N/A N/A
3 +5 VDC IN +5 VDC power in RED STATION AC Power
Adaptor
790-0292
RED STATION USB to DC
Power Cable (24")
790-0316
RED STATION BASE LEDS
Figure: RED STATION Base (Front)
LED COLOR/FLASHING DESCRIPTION
Power Indicator LED Off Powered off and turned off
Red Powered on and turned on
C O PYRIGHT © 2 017 R ED.C OM , LLC 955- 0047, REV- AH| 36
