WARNING: Damage to the camera, aluminum side SSD module, or other components of the camera system caused
by mixing carbon fiber components with non-carbon-fiber components is not covered under warranty, and may void
the warranty for both the camera and the side SSD module. For more information, go to "Mixing Carbon Fiber and
Aluminum Components" on page7.
REMOVE EPIC/SCARLET SIDE MEDIA MODULES
Follow the instructions in this section to remove any of the following modules from an EPIC or SCARLET camera:
RED MINI-MAG Side SSD Module
Carbon Fiber RED MINI-MAG Side SSD Module
DSMC 1.8" SSD Side Module
DSMC 1.8" SSD Side Module (DRAGON)
Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON)
REQUIRED TOOL(S): T10 TORX
®
driver
Inspect the connections and pins on the camera and ensure that they are clean and undamaged.
NOTE: DO NOT remove the two (2) red and black tamper-proof stickers.
1. Turn off the camera.
2. Use a T10 TORX driver to remove the four (4) cap screws that attach the module to the camera in a cross pattern
(“X” pattern). The screw types for the side SSD modules are listed below:
Aluminum side SSD modules: Black M3x0.5 x 6 mm or M3x0.5 x 5.5 mm cap screws.
Carbon fiber side SSD modules: Red M3x0.5 x 6 mm cap screws that come with the carbon fiber
EPIC/SCARLET.


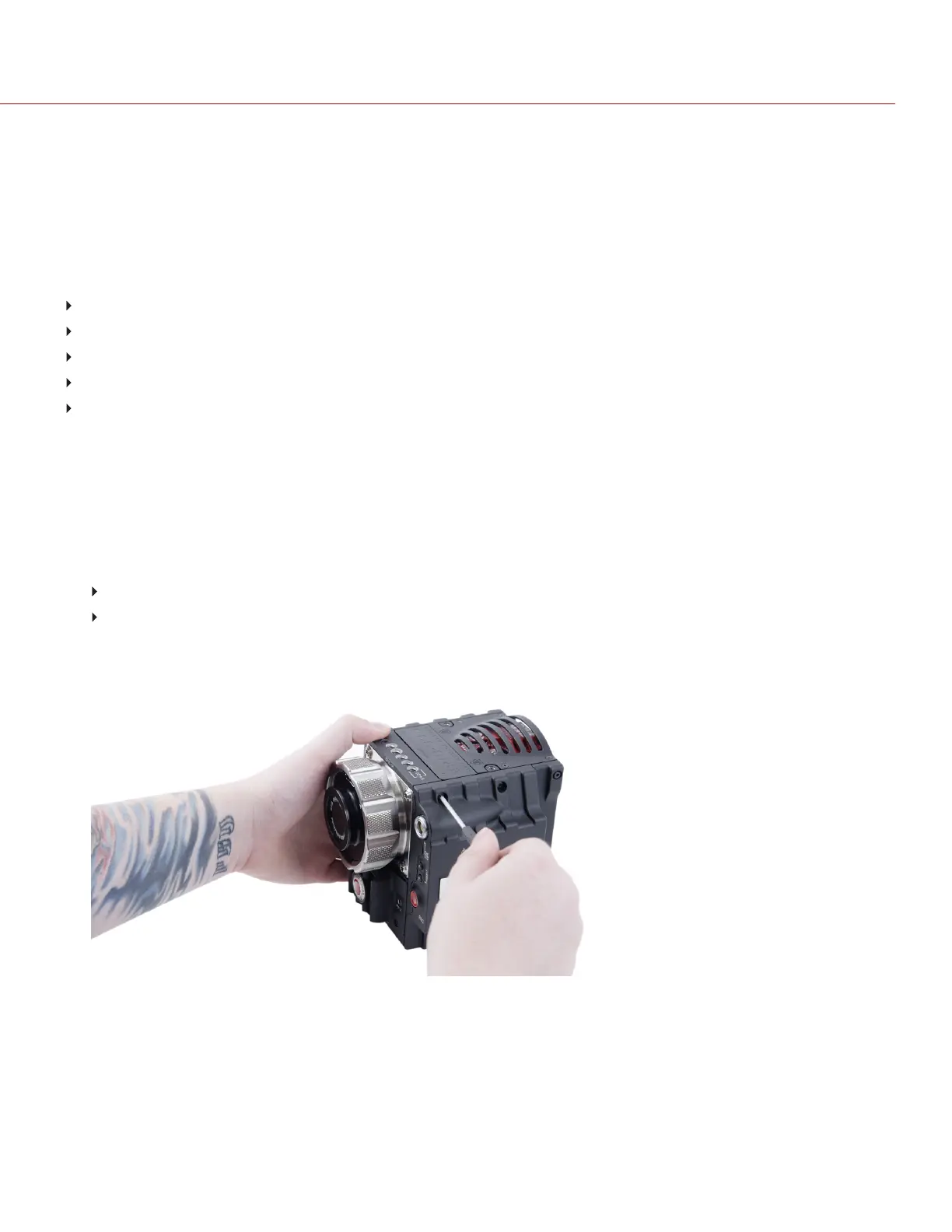

Figure: Remove Screws
