6. The PTO AXLE
The PTO is a very important component that takes care of the drive from the tractor to the machine.
The PTO axle ensures safe use of the machine on condition that it is properly installed and
maintained. The PTO has its own CE certification and manual. This manual is located near the PTO
axle.
See the details listed on the PTO page of the components booklet for specific adjustment values.
DO NOT exceed these values. This could result in an unsafe situation and could overload the
machine, resulting in damage to the machine.

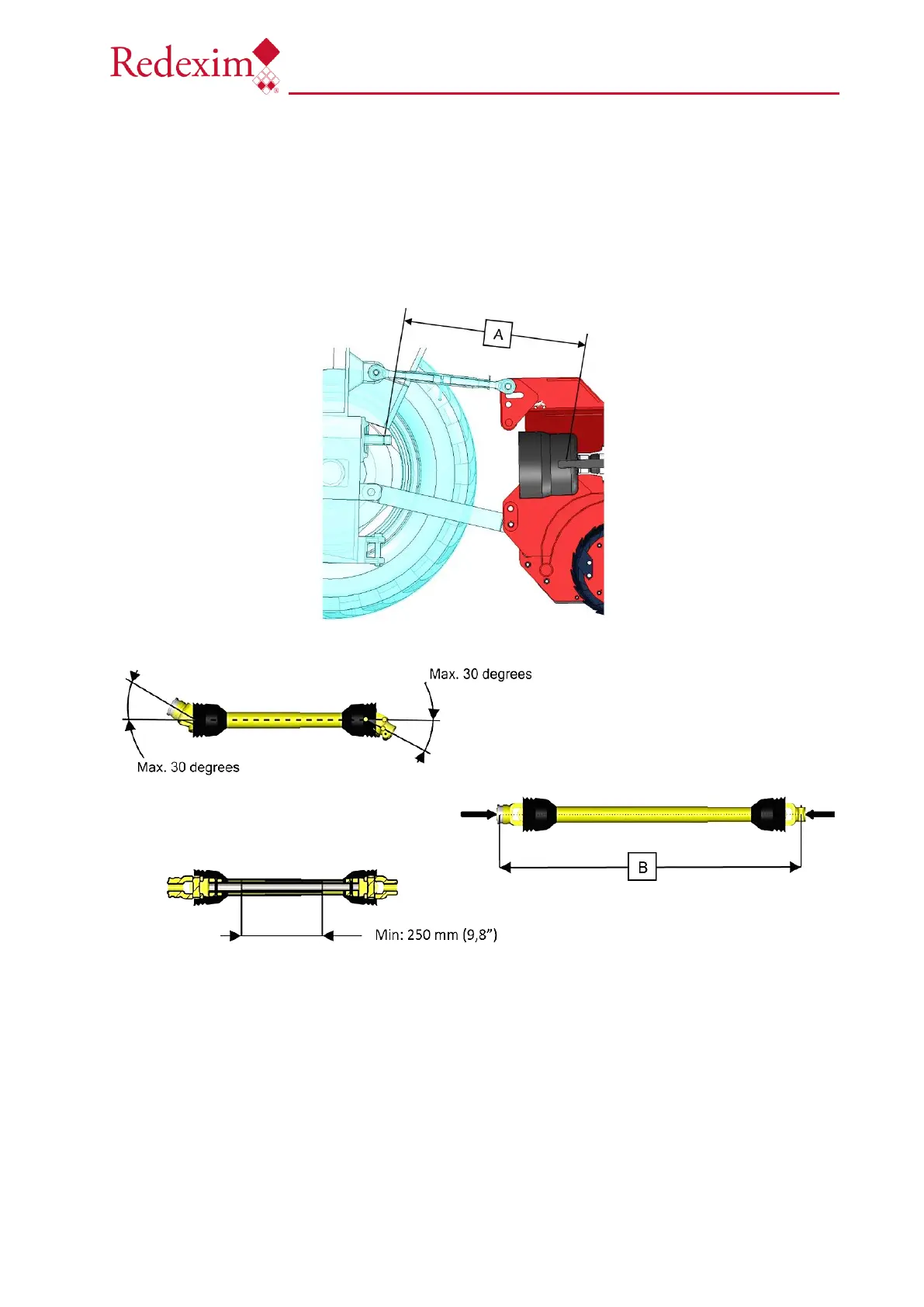

Fig. 4
6.1. Length of the PTO axle
The length of the PTO axle is very important. If it is too long, it can damage the drive of the tractor
and/or the machine. If the overlapping length of the cylinders becomes less than 250 mm (9.8”) at any
time, it can damage the PTO axle. The required length changes when the machine is lifted or when a
different tractor is used! If a new machine is purchased or if another towing vehicle is used, the length
of the PTO axle should be checked and shortened, if necessary (see Fig. 4):
1. Measure the distance ‘A’ (from groove to groove) between the tractor’s PTO and the machine’s
connection point, when the machine is horizontal on the ground and the tractor is attached.
