2.0 GENERAL DESCRIPTION
The Verti-Drain
®
is a machine for aerating fields of grass and sports fields.
The Verti-Drain
®
is a three-point machine which requires a tractor or Verti-Power in order to
utilize the Verti-Drain
®
.
3.0 FIRST INSTALLATION, REMOVING THE MACHINE FROM
THE PALLET
4
3
1
5
1
2

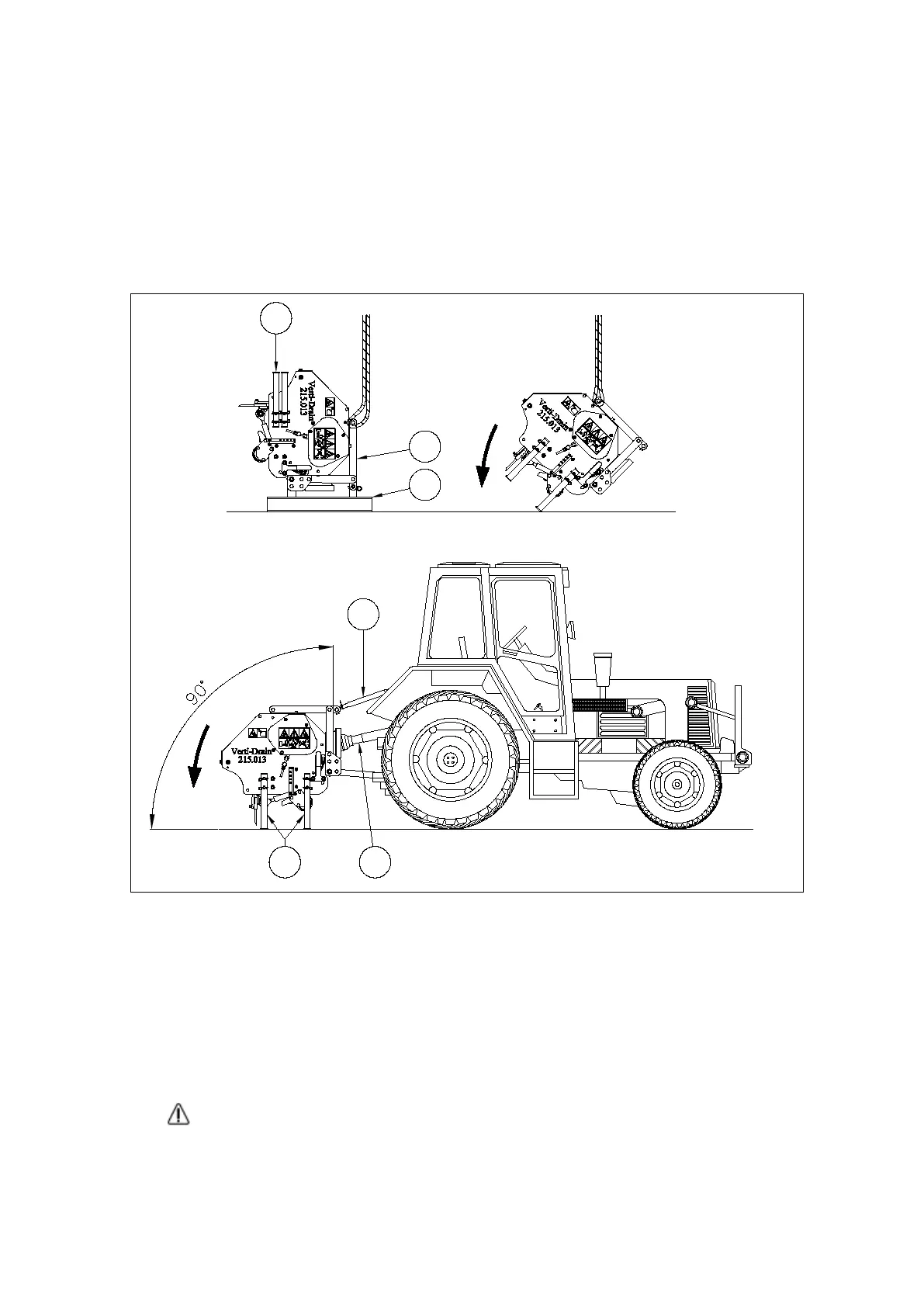

Fig. 8
The machine is positioned vertically on the pallet. To remove the pallet and position the
machine horizontally on the floor, act as follows (see fig. 8):
1. Remove the PTO, PTO protective covers and tines from the machine.
2. Disassemble the support legs (1) and position them so the Verti-Drain
®
can be
placed on the legs.
3. Attach a cable underneath the top link strips (2) so the machine can be lifted.
Ensure that the cable/crane/hoist has a minimal load lifting capacity of 2000
kg (4410 lbs).
4. Lift the machine together with the pallet 50 mm (2”) off the ground.
