11.0 UNCOUPLING THE VERTI-DRAIN
®

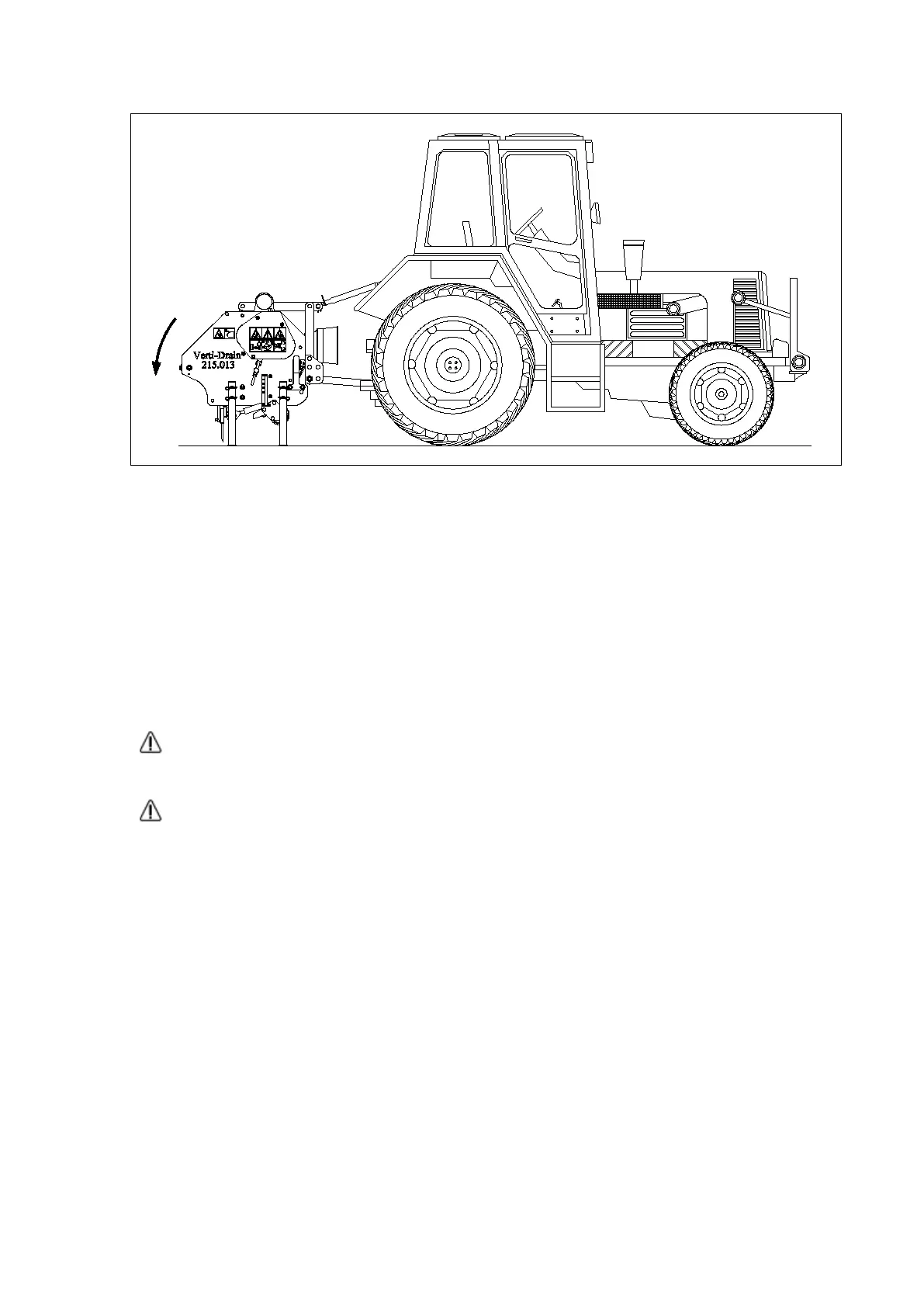

Fig. 12
To uncouple the Verti-Drain
®
from the tractor, use the following procedure:
1. Open the rear cover.
2. Turn the crankshaft until all tine holders are in the highest position possible.
3. Assemble legs so the Verti-Drain
®
will rest on the legs when the machine is lowered
further (see fig. 12).
4. Next place the machine, in the highest position, on a stable surface.
5. Remove the top bar.
6. Undo the PTO at the tractor’s end.
7. Remove the support brackets of the tractor from the Verti-Drain
®
.
Turn off the tractor engine when walking around the machine and block the tractor
from moving!
When storing the machine for a longer period of time, it is advisable NOT to fold
up the tines for the sake of the durability of the shock absorber springs.
