RedMax CHTZ600 - Major Repair Procedures

7 Repair instructions

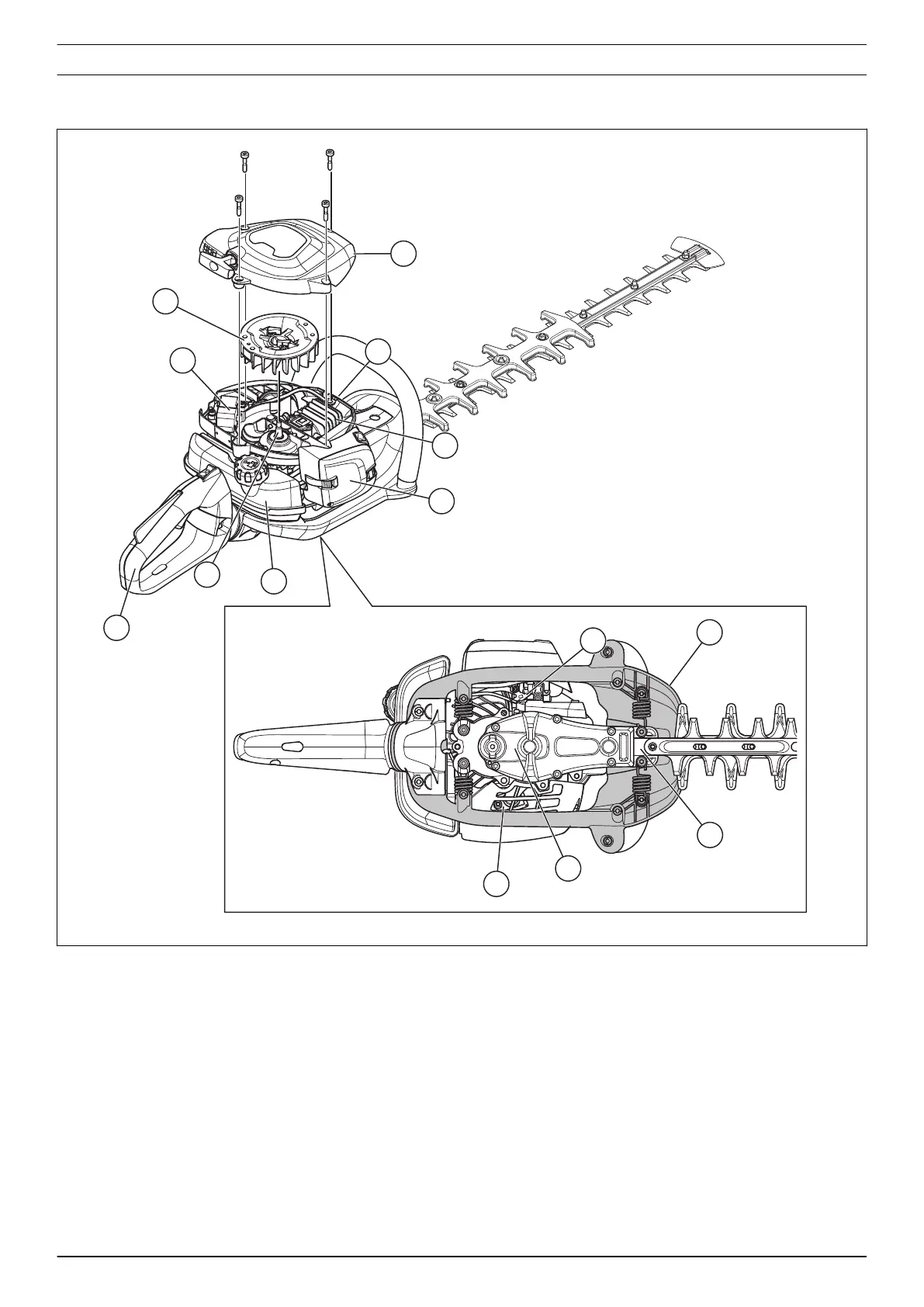

7.1 Product overview for repair instructions
1
10
9
6
2
12
3
4
8
7
5
14
11
13
1. Starter unit
2. Muffler
3. Spark plug
4. Flywheel
5. Ignition module
6. Air filter
7. Fuel tank
8. Carburetor
9. Handle
10. Gearbox
11. Cutting attachment
12. Cylinder and piston
13. Crankcase and crankshaft
14. Vibration damping system
7.2 To clean and examine the product parts
• Clean and examine all parts fully. You find more
instructions in the chapter for each part if special
tools or procedures are necessary.
• Replace damaged or defective parts.
• Always use original spare parts.
