7.10.3 To assemble the clutch, gearbox and clutch
drum
Install the clutch shoes with the text on the clutch shoes
visible.
1. Use approximately 20 g of grease to lubricate all
parts. Refer to
Servicing data on page 6
.
2. Assemble in the opposite sequence of
To
disassemble the clutch, clutch drum and gearbox on
page 35
.
3. Add approximately 10 g of grease to the gearbox.
7.11 Cutting equipment
7.11.1 To remove the cutting equipment
1. Disassemble the cutting equipment as shown in
Servicing data on page 6
.
7.11.2 To clean and examine the cutting equipment
1. Clean all parts.
2. Examine the cutting equipment parts for cracks.
3. Examine the sharpness of the blades.
7.11.3 To assemble the cutting equipment
1. Assemble the cutting equipment as shown in
Servicing data on page 6
. Make sure to use the right
type of distance between the blades.
7.12 Cylinder and piston
7.12.1 To prepare to remove the cylinder and
piston
1. Remove the gearbox, the cutting equipment and the
clutch. Refer to
To disassemble the clutch, clutch
drum and gearbox on page 35
.
Note: Do this step only if it is necessary to also
remove the crankcase.
2. Remove the starter unit. Refer to
To disassemble
the starter unit on page 16
.
3. Remove the flywheel. Refer to
To disassemble the
flywheel on page 20
.
Note: Do this step only if it is necessary to also
remove the crankcase.
4. Remove the muffler and the exhaust pipe. Refer to
To disassemble the muffler on page 19
.
5. Remove the air filter. Refer to
To disassemble the
air filter on page 19
.
6. Remove the air filter housing and the carburetor.
Refer to
To disassemble the carburetor on page 28
.

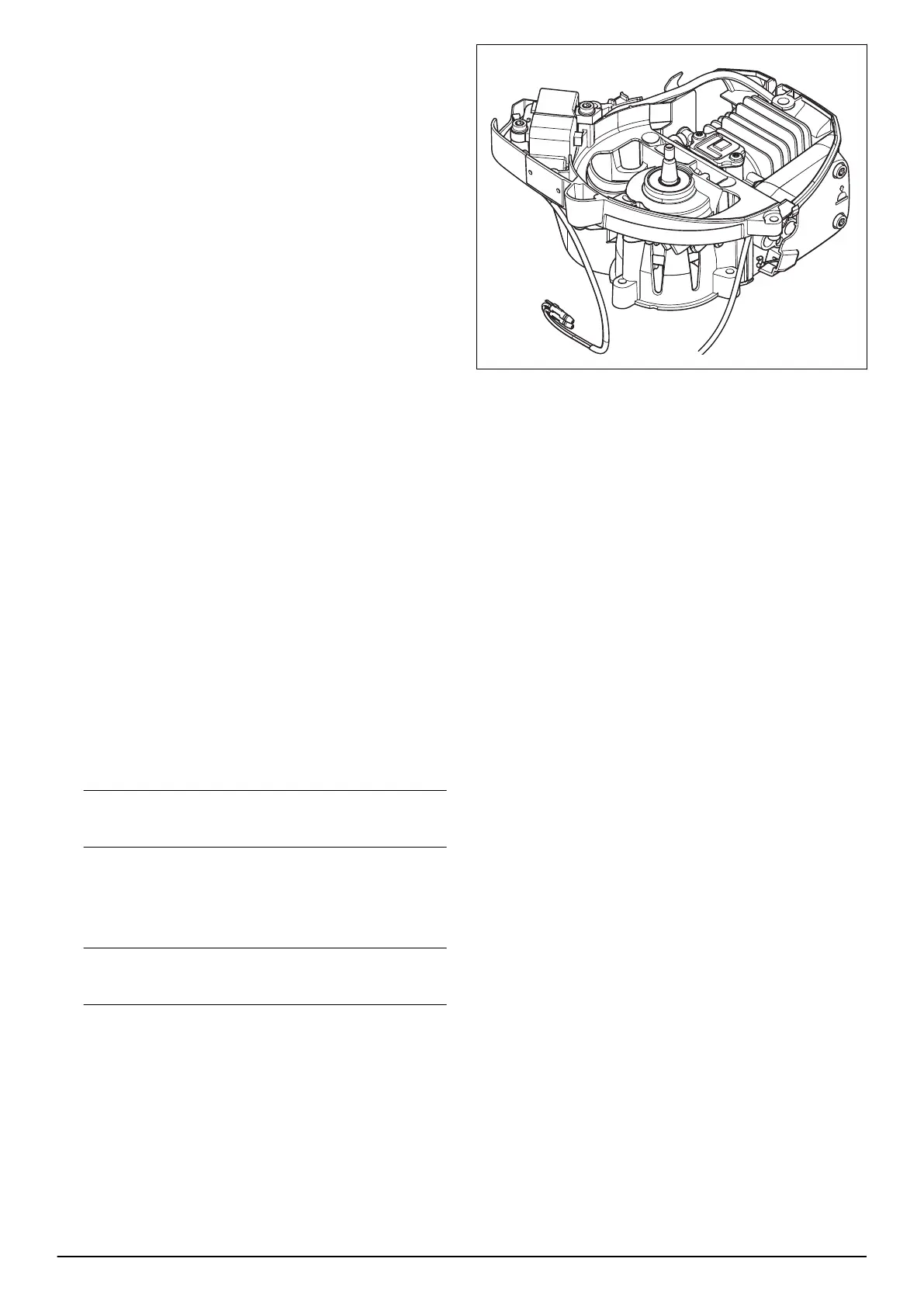

The illustration shows how the product looks before you
start to remove the cylinder and piston.
38 - Repair instructions 1108 - 001 - 24.11.2020
