7.3 Starter

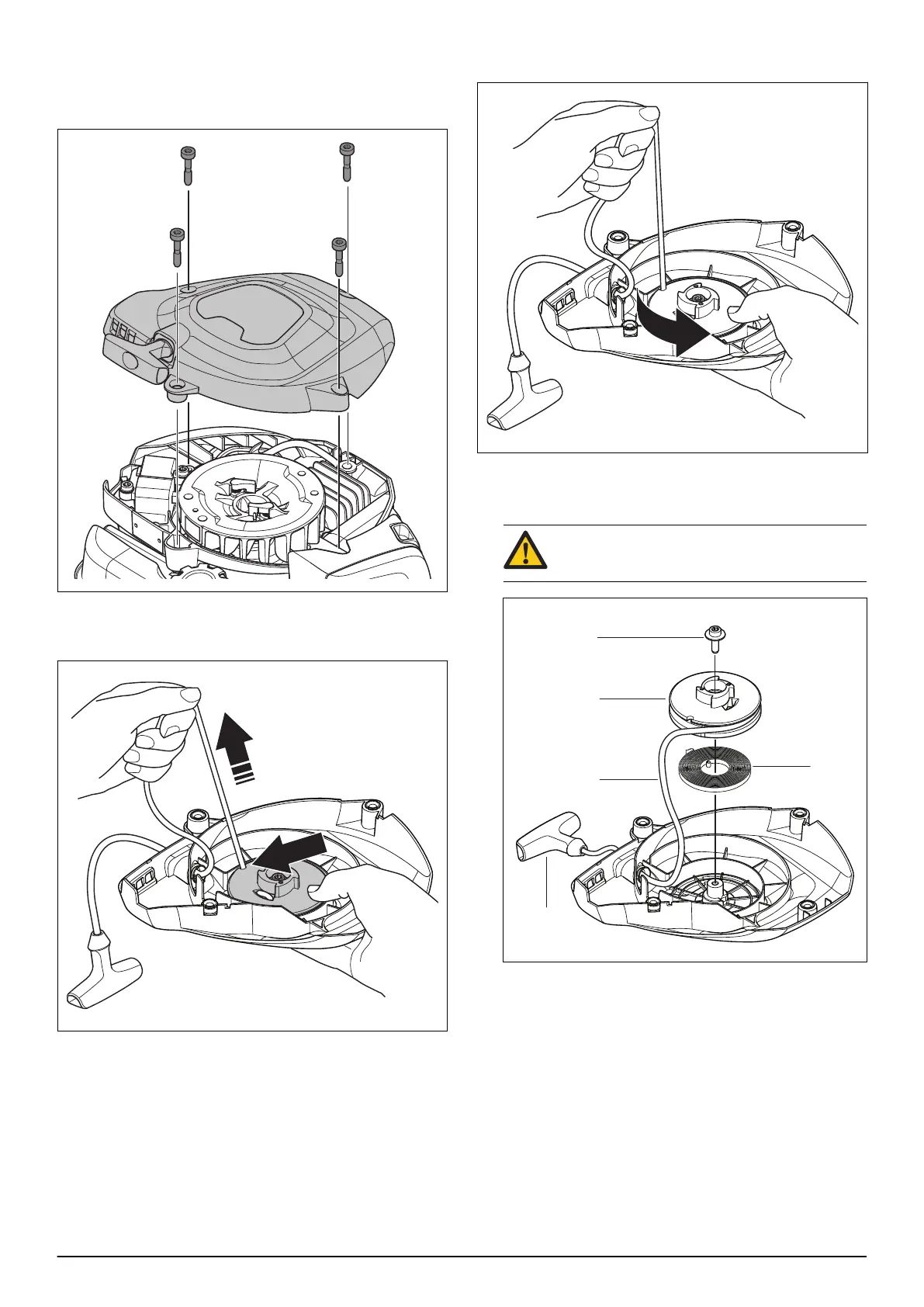

7.3.1 To disassemble the starter unit
1. Remove the 4 screws and remove the starter unit.
2. Pull out the rope approximately 30 cm /12 in and put
it into the notch in the pulley. Slow the starter pulley
with your thumb.
3. Let the pulley rotate slowly rearward to release the
tension of the recoil spring.
4. Remove the bolt (A) and washer. Carefully remove
the starter pulley (B) together with the recoil spring
(C).
WARNING: The recoil spring can eject and
cause injury. Use eye protection.
5. Use pointed pliers to pull out the ends of the starter
rope (D) from the handle (E). Loosen the knot, if it is
possible. If not, cut the rope.
6. Use pointed pliers to pull out the ends of the starter
rope from starter pulley (B).
7.3.2 To clean and examine the starter unit
• Clean all components.
• Examine the starter rope. Replace the starter rope if
it is damaged.
