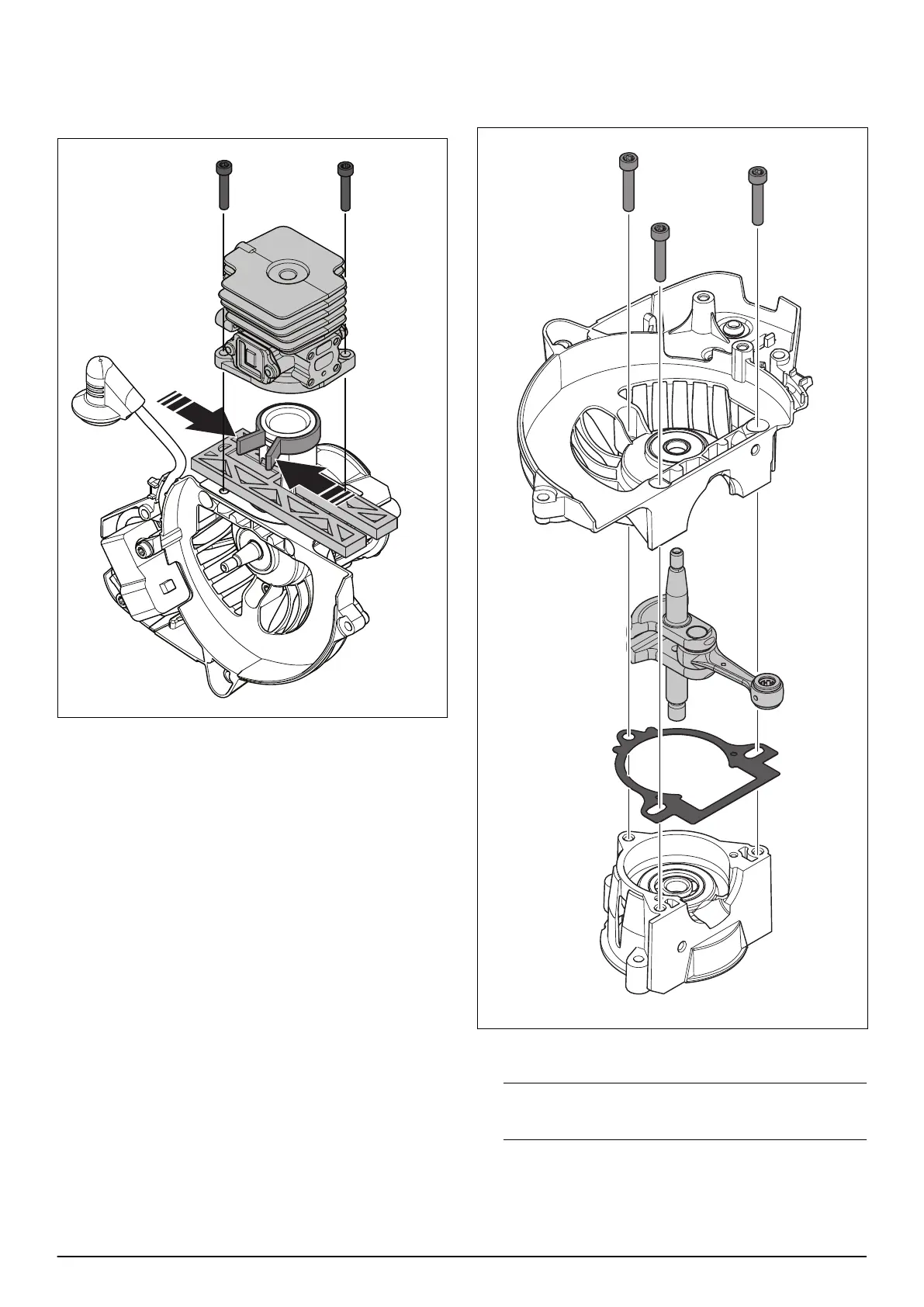

7. Use the clamp from the piston assembly kit to
compress the piston ring. Carefully push the piston
into the cylinder opening. Tighten the 2 screws to
the specified torque. Refer to Servicing data on page
6 .
8. Install the remaining parts in the opposite sequence
to how they were removed.
7.13 Crankshaft and crankcase
7.13.1 To get access to the crankcase and
crankshaft
1. Do step 1-13 in To remove the cylinder and piston
on page 39 .
2. Remove the ignition module, if it is attached.
7.13.2 To disassemble the crankcase and
crankshaft
1. Remove the 3 screws and disconnect the crankcase
halves.
2. Lift the crankshaft out of the crankcase half on the
starter side.
Note: The crankshaft has a tight fit in the crankshaft
bearing.
3. Remove the gasket and clean remaining gasket
material from the surfaces.
