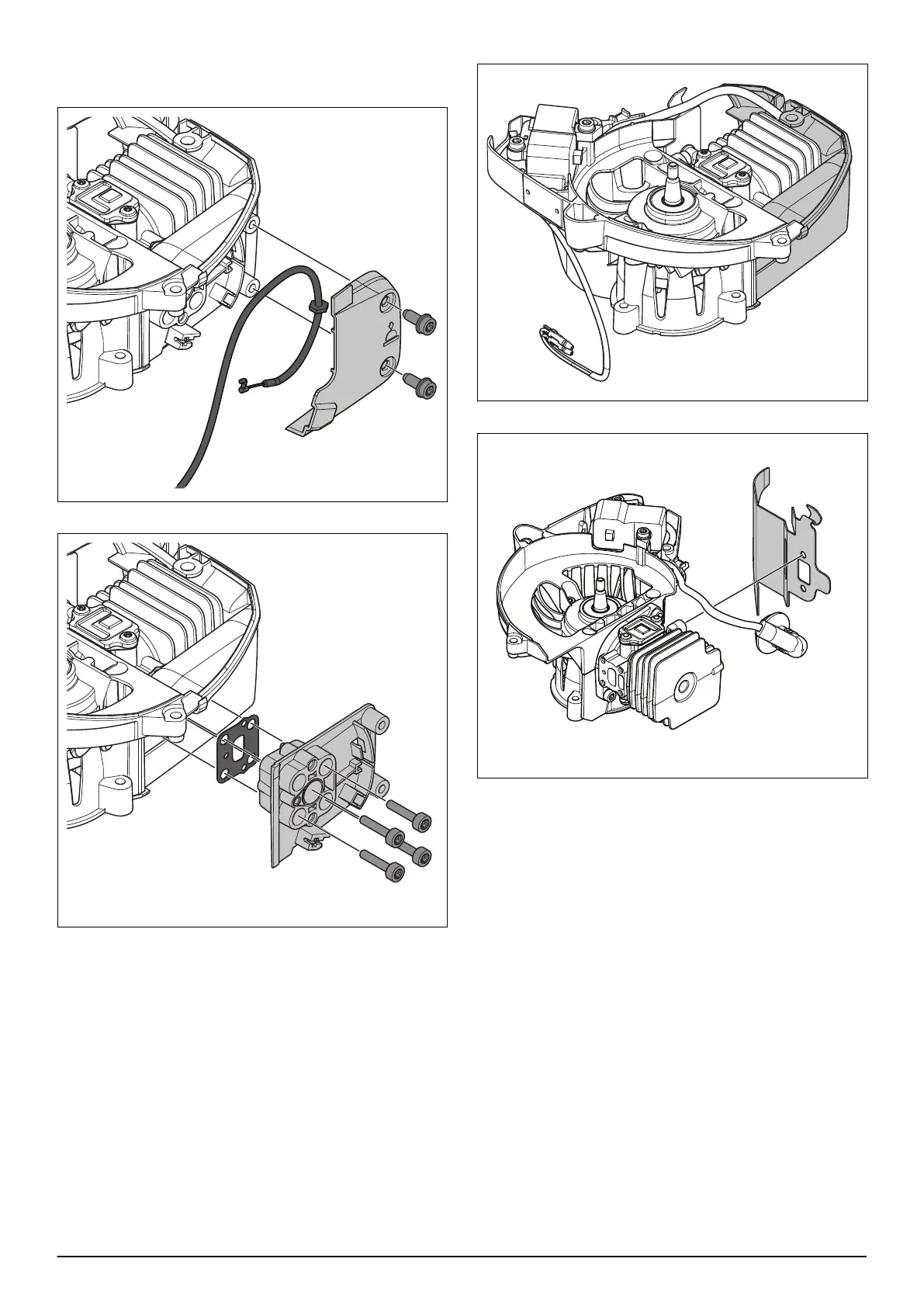

7.12.2 To remove the cylinder and piston
1. Remove the 2 screws, the throttle wire cover and
throttle wire.
2. Remove the 4 screws, the manifold and the gasket.
3. Remove the cylinder cover.
4. Remove the heat shield, if it is attached.
1108 - 001 - 24.11.2020 Repair instructions - 39
