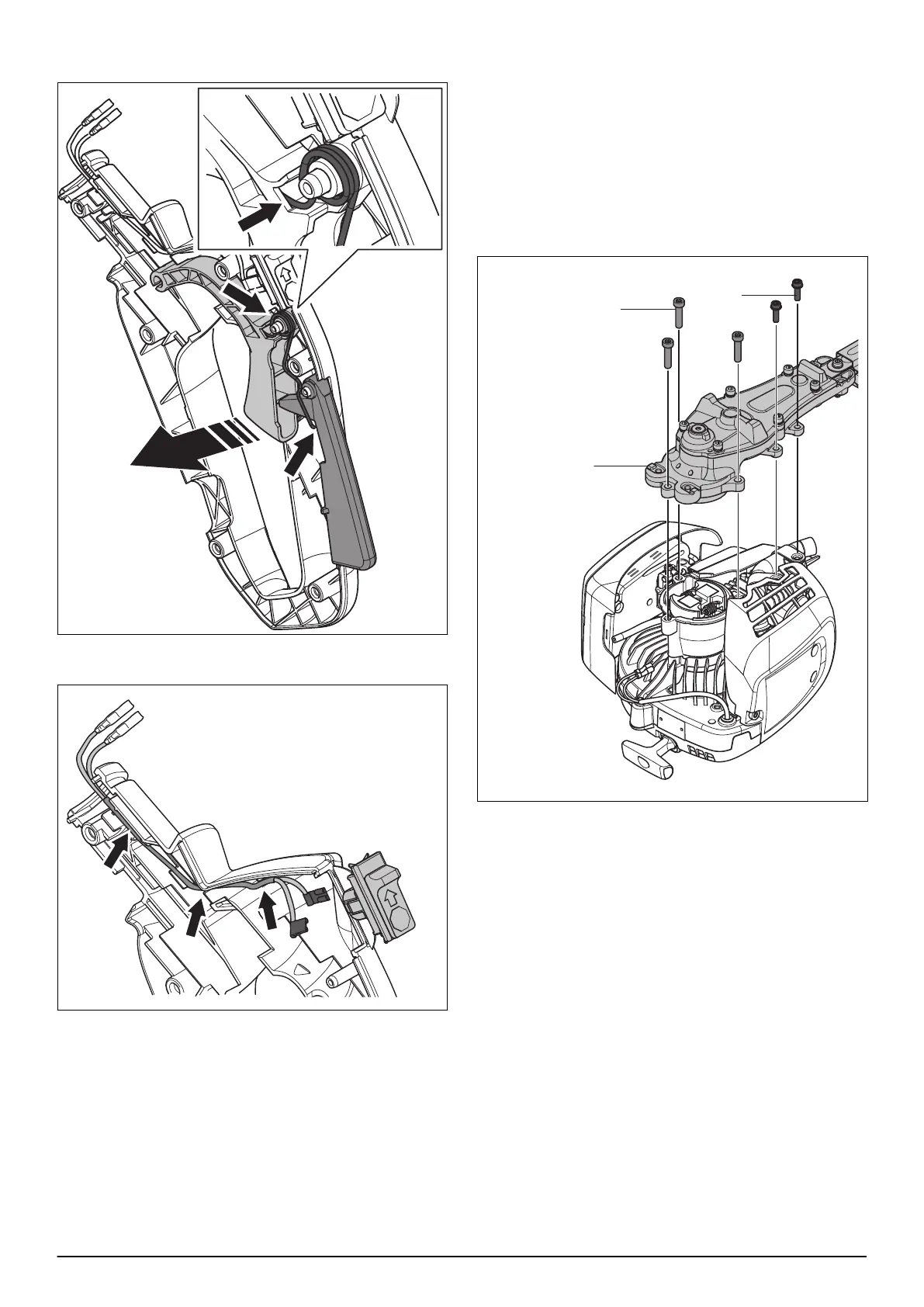

11. Remove the handle parts. Make a note of the
position of the spring.
12. Remove the cables from the start switch. Make a
note of the position of the cables.
7.9.2 To assemble the handle
• Assemble in the opposite sequence of To
disassemble the handle on page 32 .
7.10 Clutch, clutch drum and gearbox
7.10.1 To disassemble the clutch, clutch drum and
gearbox
1. Remove the spark plug.
2. Put a piston stop in the spark plug hole.
3. Remove the handle. Refer to
To disassemble the
handle on page 32 .
4. Remove the 3 screws (A).
A
B
C
5. Remove the 2 screws (B) that are attached to the
exhaust pipe brackets.
6. Remove the gearbox and cutting deck (C).
1108 - 001 - 24.11.2020 Repair instructions - 35
