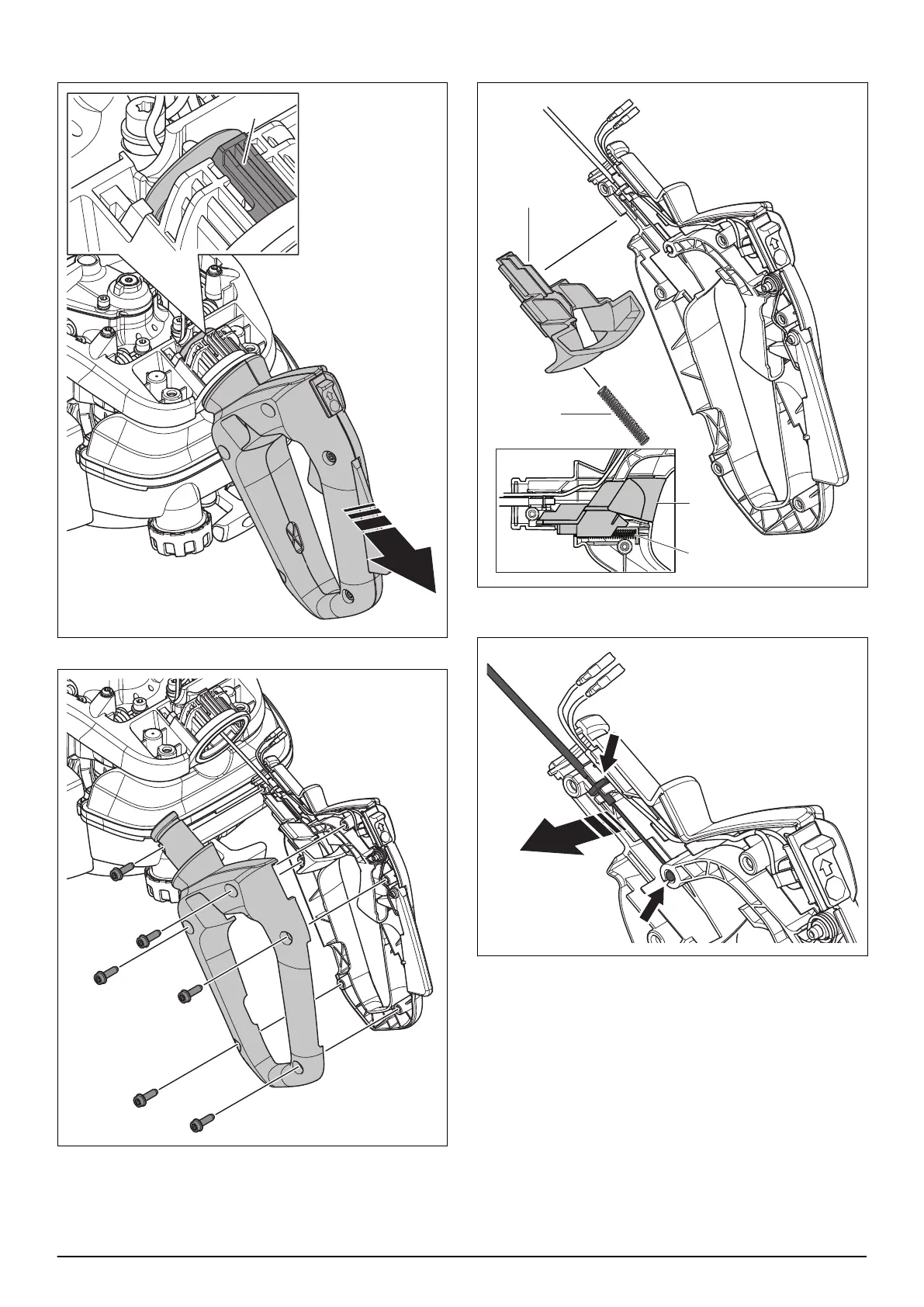

7. Open up the lock tab (D) with a very small flat
screwdriver. Pull out the handle.
D
8. Remove the 6 screws.
9. Remove the safety catch (E) and remove the spring
(F) from the safety catch.
E
F
E
F
10. Remove the throttle wire from the throttle trigger.
Make a note of the position of the throttle wire.
34 - Repair instructions 1108 - 001 - 24.11.2020
