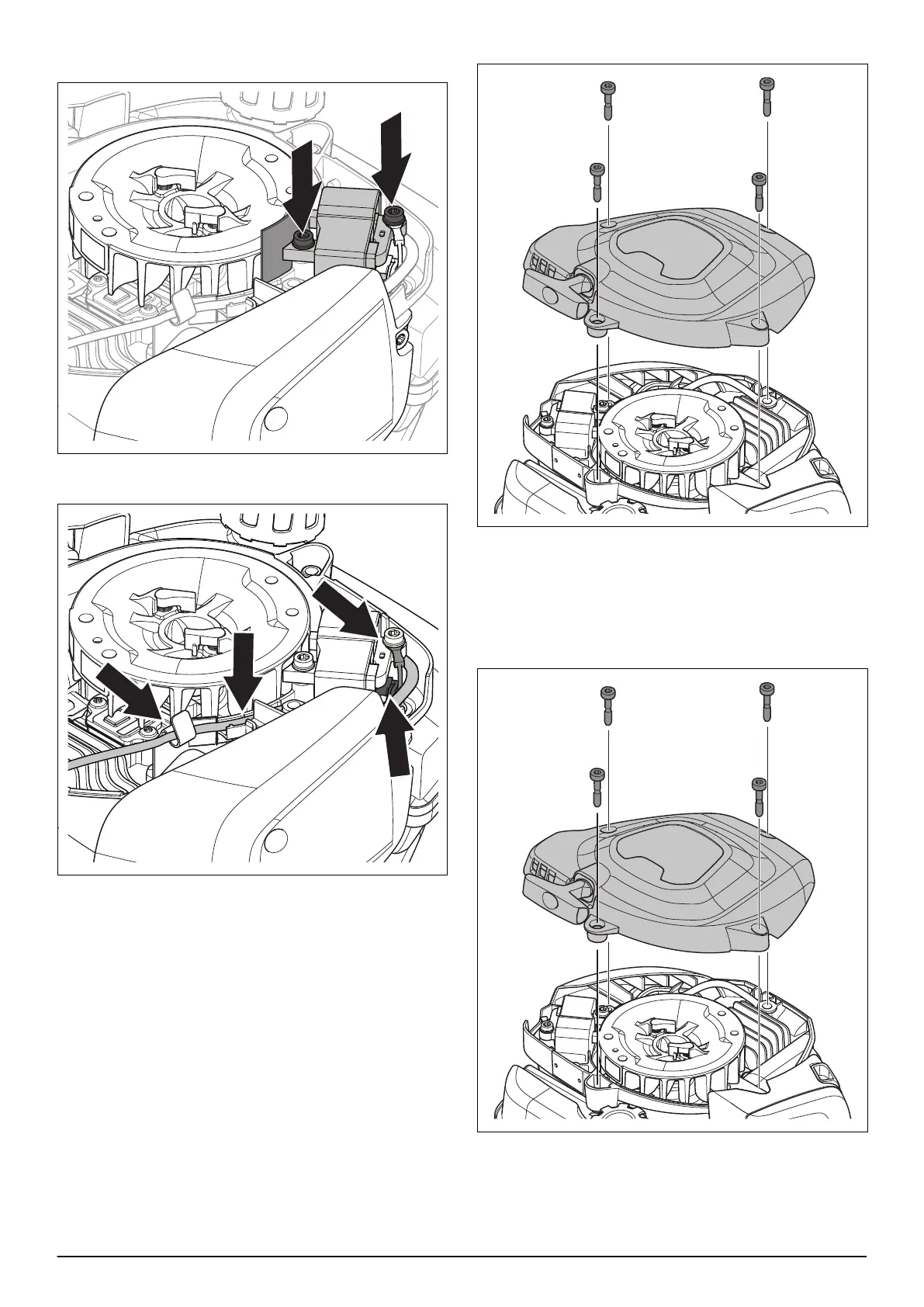

3. Adjust the distance. Tighten the screws when the
distance is correct.
4. Make sure that the cables are in their correct
position.
5. Install the starter unit.
6. Install the spark plug and the spark plug cap.
7.8 Carburetor
7.8.1 To disassemble the carburetor
1. Remove the starter unit.
2. Remove the air filter. Refer to
To disassemble the
air filter on page 19
.
28 - Repair instructions 1108 - 001 - 24.11.2020
