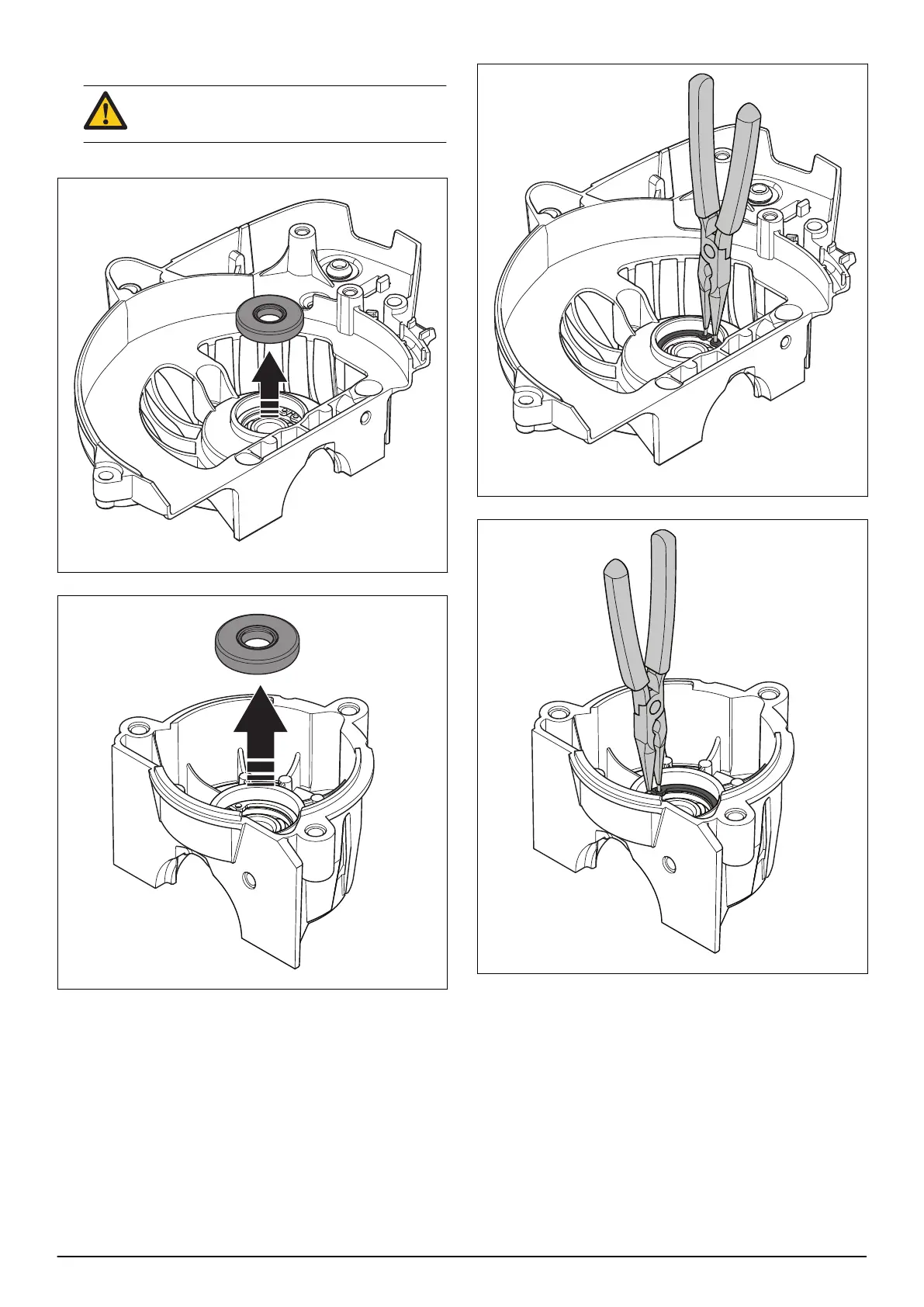

4. Use a screwdriver or equivalent to remove the
sealing ring from the crankcase halves.
CAUTION: Remove the sealing rings
carefully. The crankcase is easily damaged.
a) Flywheel side.
b) Clutch side.
5. Discard the sealing ring.
6. Use a snap ring pliers to remove the snap ring from
the crankcase halves.
a) Flywheel side.
b) Clutch side.
1108 - 001 - 24.11.2020 Repair instructions - 45
