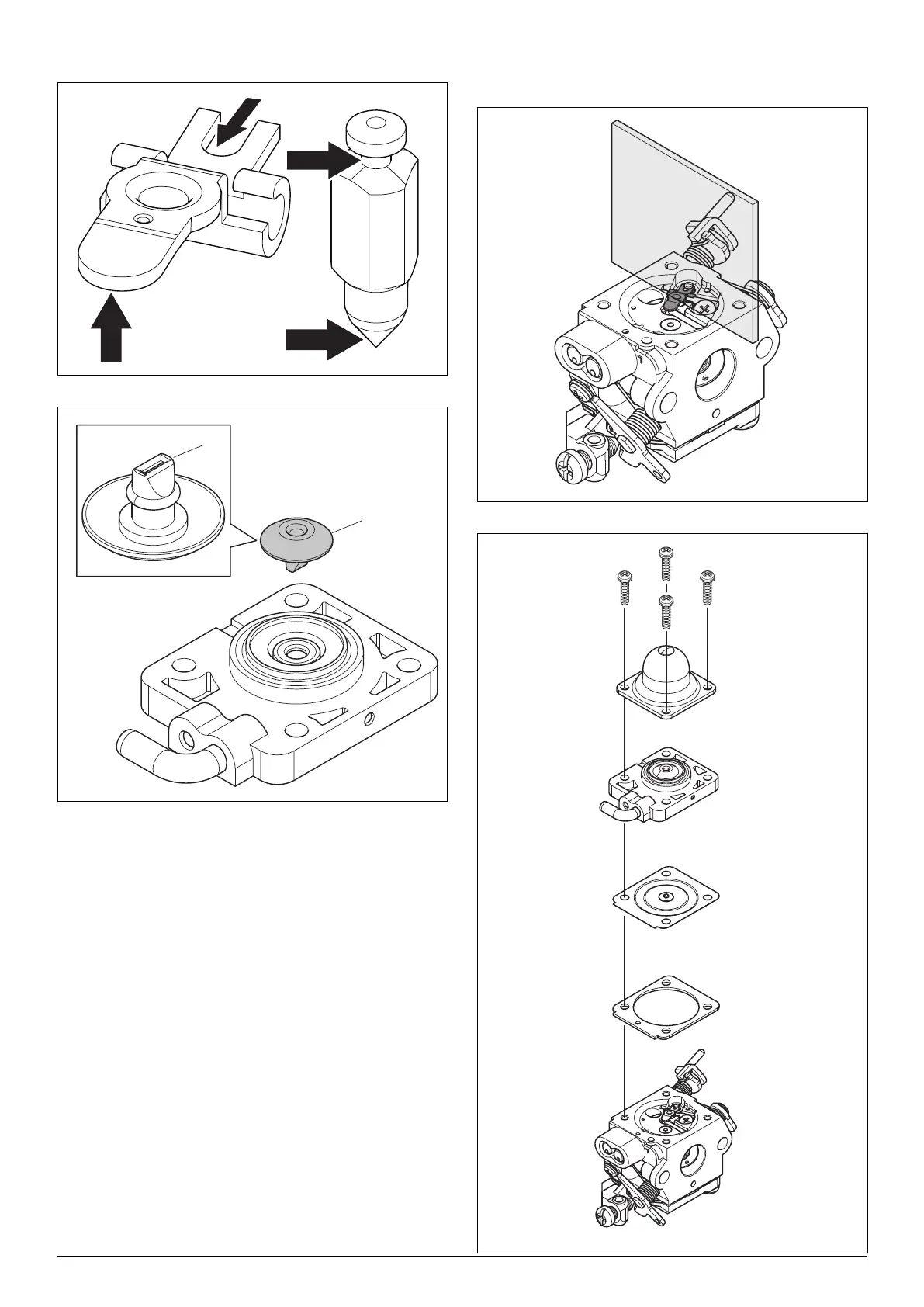

11. Examine the wear to the lever arm and the needle
valve.
12. Carefully lift up check valve (N).
13. Clean the valve housing and make sure that the
openings are clear.
14. Examine the seals of the check valves (O) for
damage.
7.8.2 To clean and examine the carburetor
• If 1 or more parts of the carburetor are worn or
damaged, replace the carburetor.
• Clean all parts.
7.8.3 To assemble the carburetor
1. Examine that the lever arm is flush with the
carburetor housing without a gasket.
2. Assemble the carburetor parts.
30 - Repair instructions 1108 - 001 - 24.11.2020
