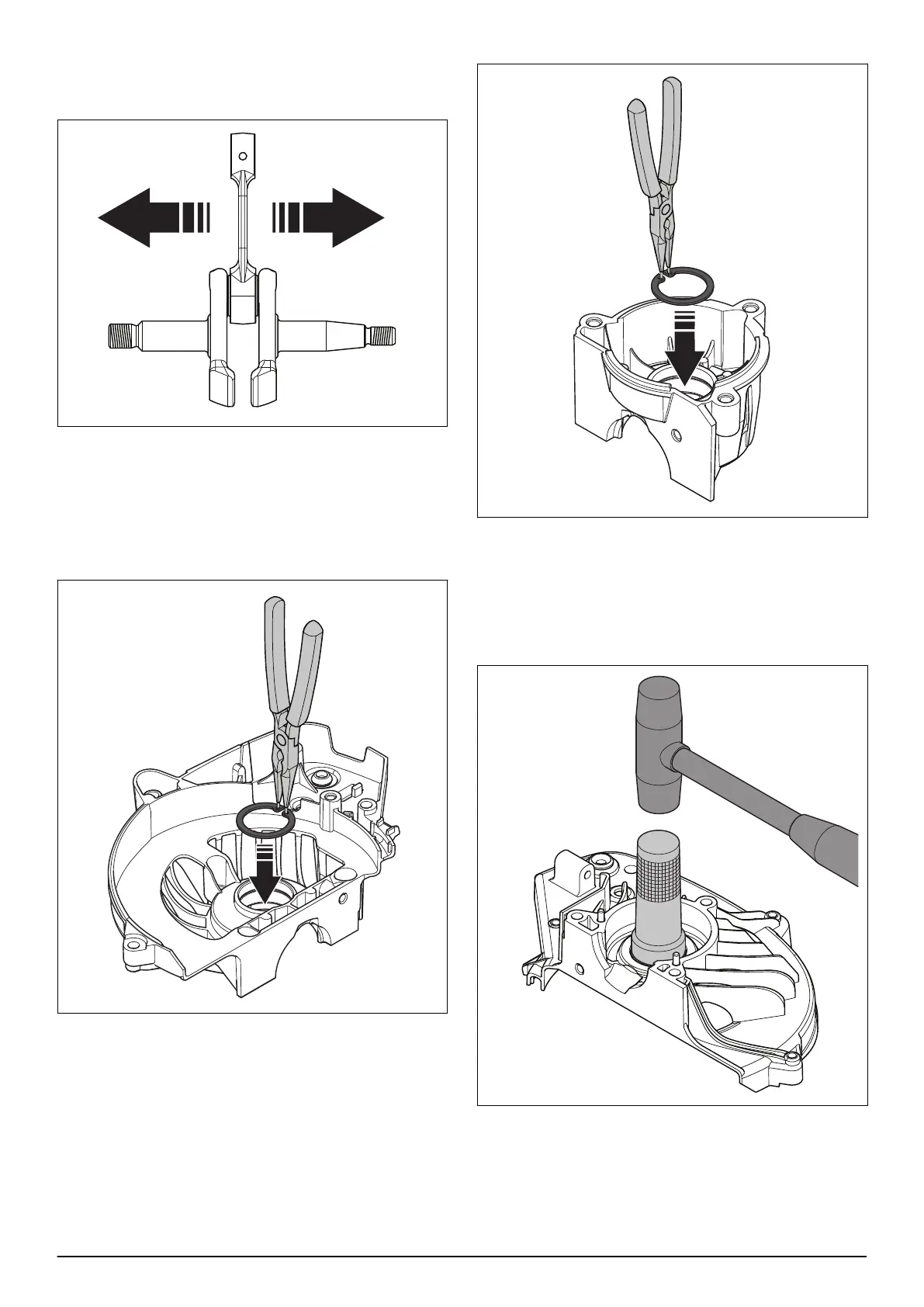

• Examine the crankshaft bearing. There must be no
radial play in the connecting rod. Make sure that
there is axial play to sufficiently lubricate the
crankshaft bearing.
• Examine the crankcase halves for cracks and
damages.
7.13.4 To assemble the crankcase and crankshaft
1. Use a snap ring pliers to attach the snap ring on the
crankcase halves.
a) Flywheel side.
b) Clutch side.
2. Put the bearing in the crankcase. Carefully tap the
removal tool for the ball bearing, refer to
To get
access to the crankcase and crankshaft on page 44
,
with a rubber hammer until the bearing is in position.
Make sure that the ball bearings is against the snap
ring.
a) Flywheel side.
1108 - 001 - 24.11.2020 Repair instructions - 47
