Redsail M500 - Adjust Optical Path of the Device

M500 激 光 雕 刻 机 使 用 说 明 书
12
济南红帆科技有限公司
Redsail Tech Co., Ltd
h t t p : / / w w w . e a s y c u t . c n

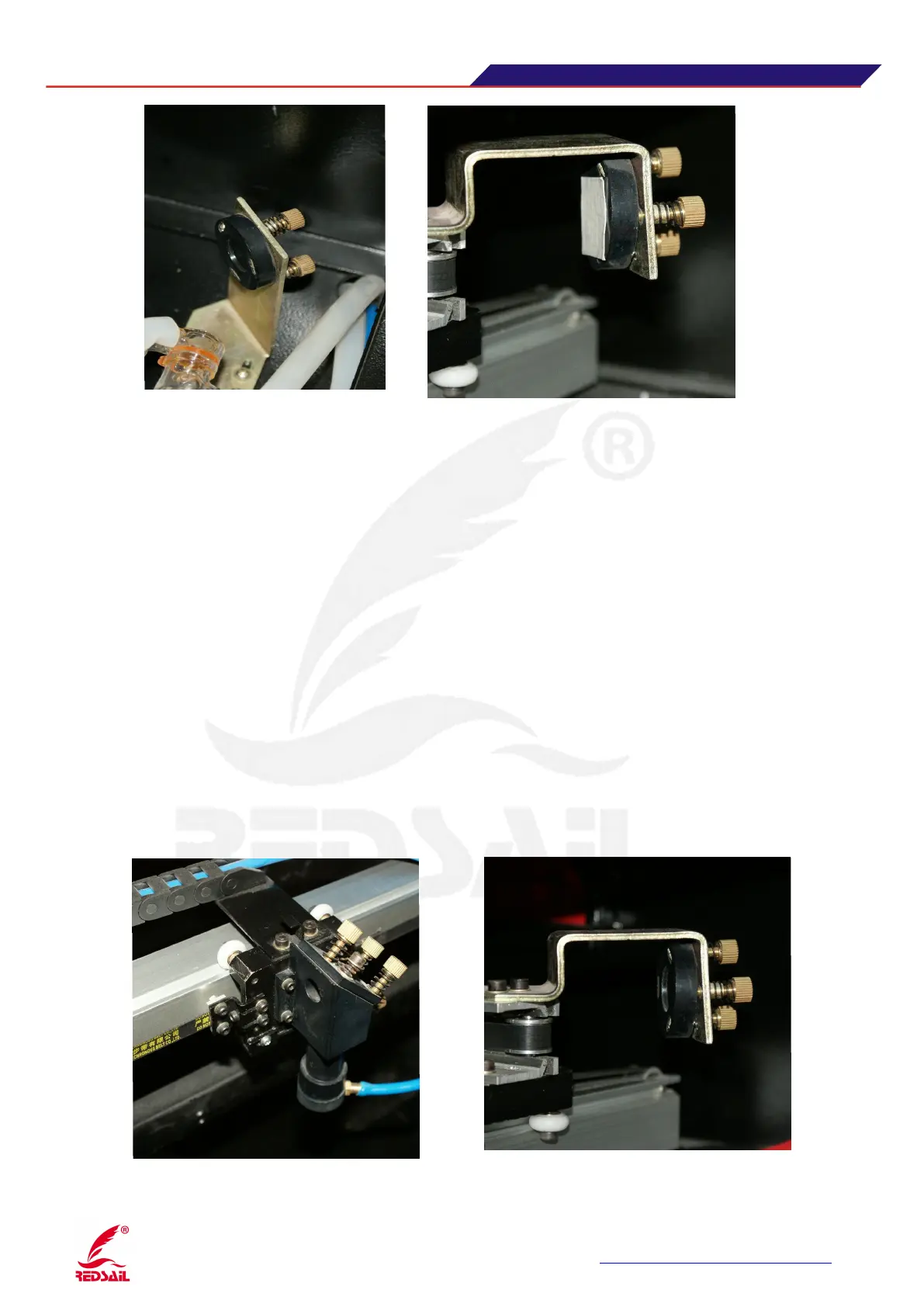

The first Reflect Stand The Second Reflect Stand
（
Picture 9
）
The fourth step: Optical path adjustment between the second and the third reflecting mirror
.
First, move the laser head to the left of the X axis, put the test paper in front of the hole of the
laser head, press "laser" slightly and check the spot. Then move the laser head to the right of
the X axis, press "laser" again, and check whether the two spots coincide with each other, if
coincide and the two spots are within the hole of the laser head, then optical path is correct. If
not, please adjust the screws on the second mirror holder to reach above standard（Attention：
the principle of optical path adjustment is the same between mirror 1 and 2, 2 and 3
）
. Then
adjust the location of second mirror holder (Y-axis direction) and the height of the laser tube,
to make sure the spots are within the hole of laser head (center is better). (Please see Picture
10)
Laser head The second mirror frame
