8. Transmitter controls

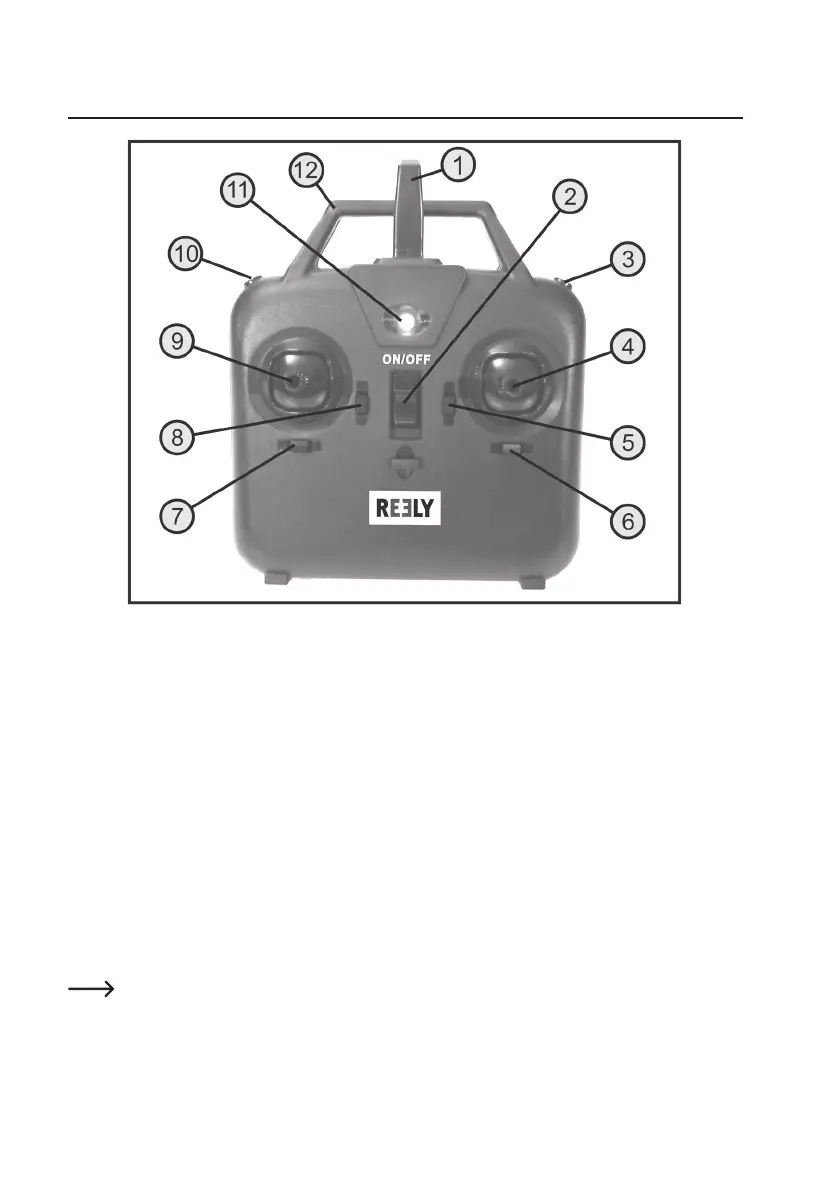

Figure 1
1 Transmitter antenna cover
2 On/off switch
3 Push button for the remote control mode switching
4 Joystick for bob and roll functions*
5 Trim button for the bob function
6 Trim button for the roll function
7 Trim button for the tail function
8 Push button for beginner and expert modes
9 Joystick for the pitch and tail function*
10 Push button for take-off, landing and emergency stop
11 LED indicator
12 Carrying handle
* The two joysticks are automatically held in the middle position by spring force. For further information on
thesteeringfunctions,seethesection“Generalinformationoncontrollingmodelhelicopters”.
