45
Pitch function

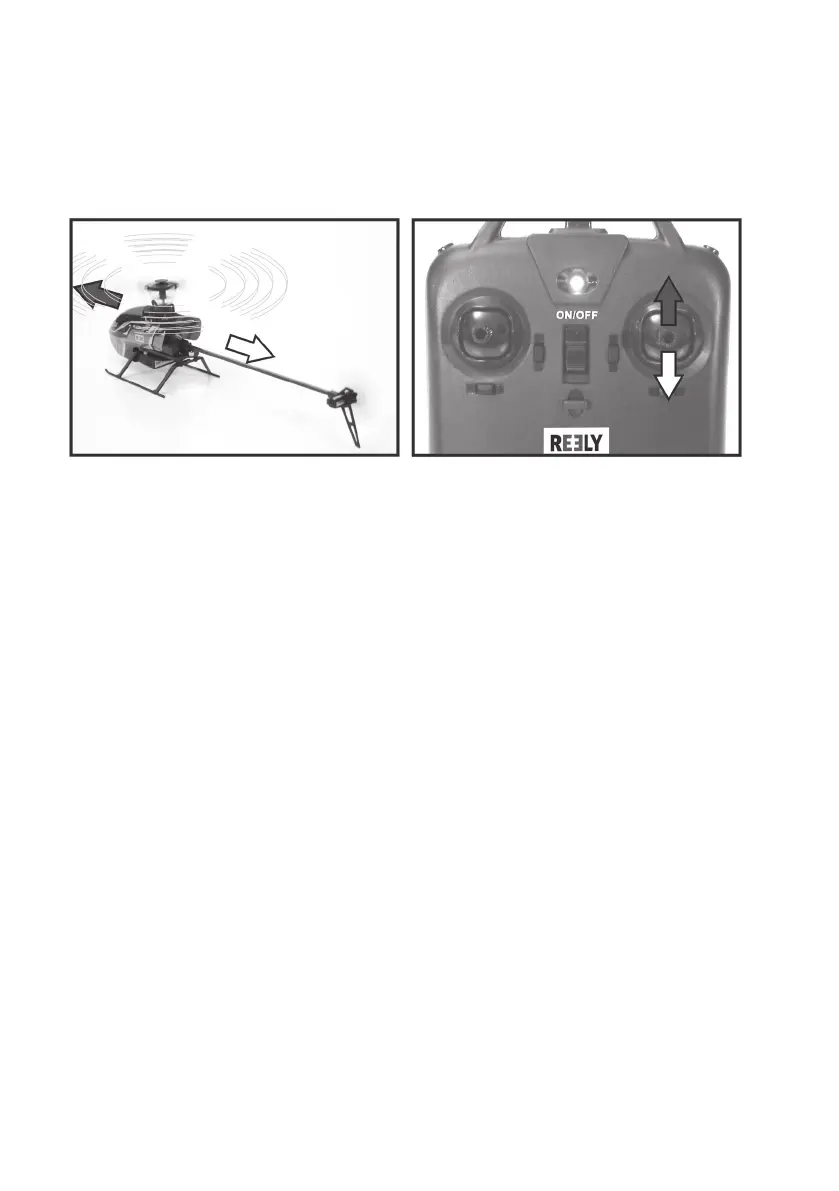

With the bob function you can move the model helicopter forwards and backwards (see Figure 11). Use the joystick
for bob and roll functions for steering (see Figure 1, no. 4).
If you push the joystick slightly forwards, the model will move forward (see dark arrows in Figure 11).
If you pull the joystick backward, the model will move backwards (see light arrows in Figure 11).
Figure 11
