“Gate” input

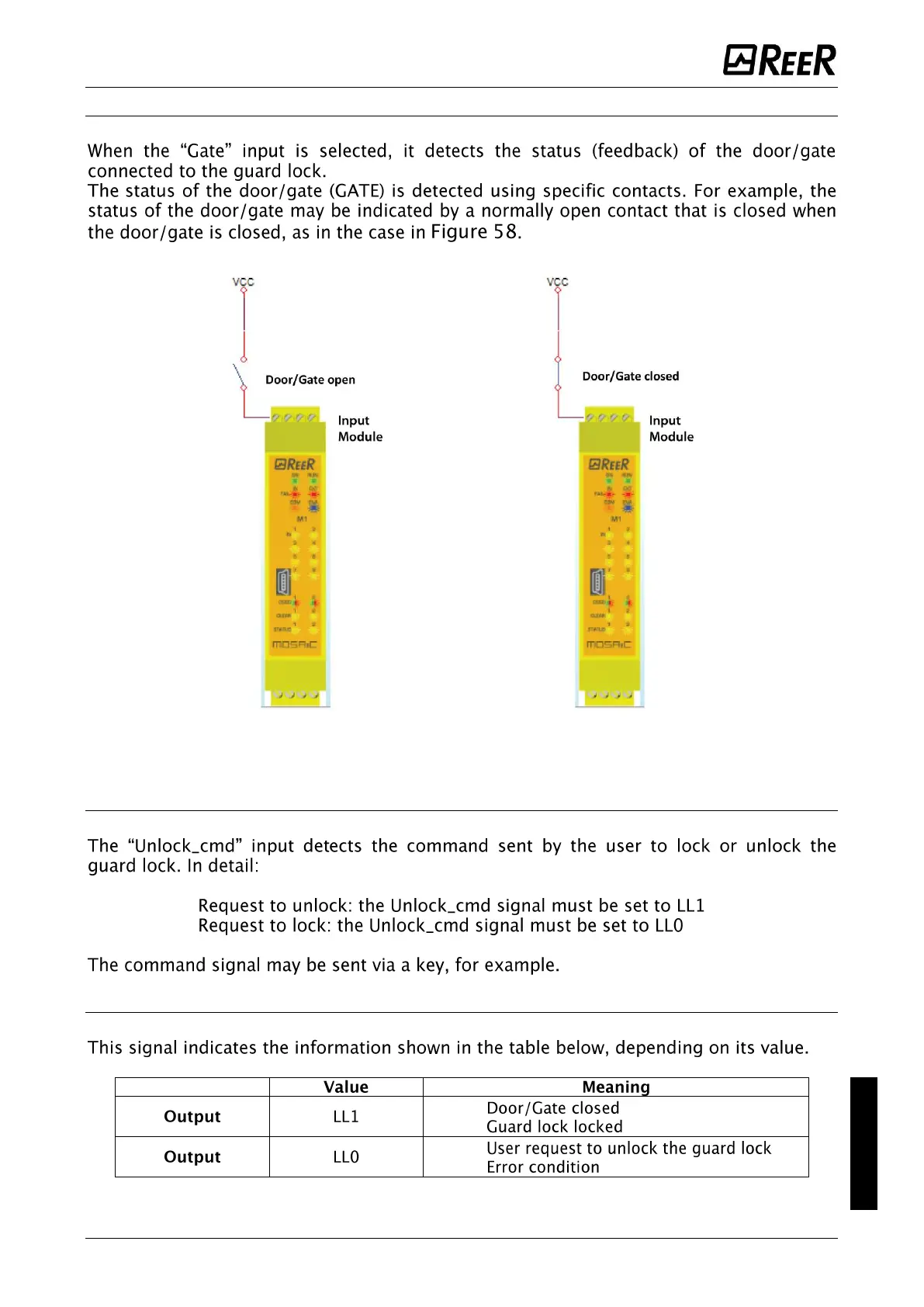

Figure 58 - Example of feedback of the status of a door/gate connected to the guard lock. The
signal received by the module is processed by the "Guard Lock" operator.
“Unlock_cmd” input


“Output” out




