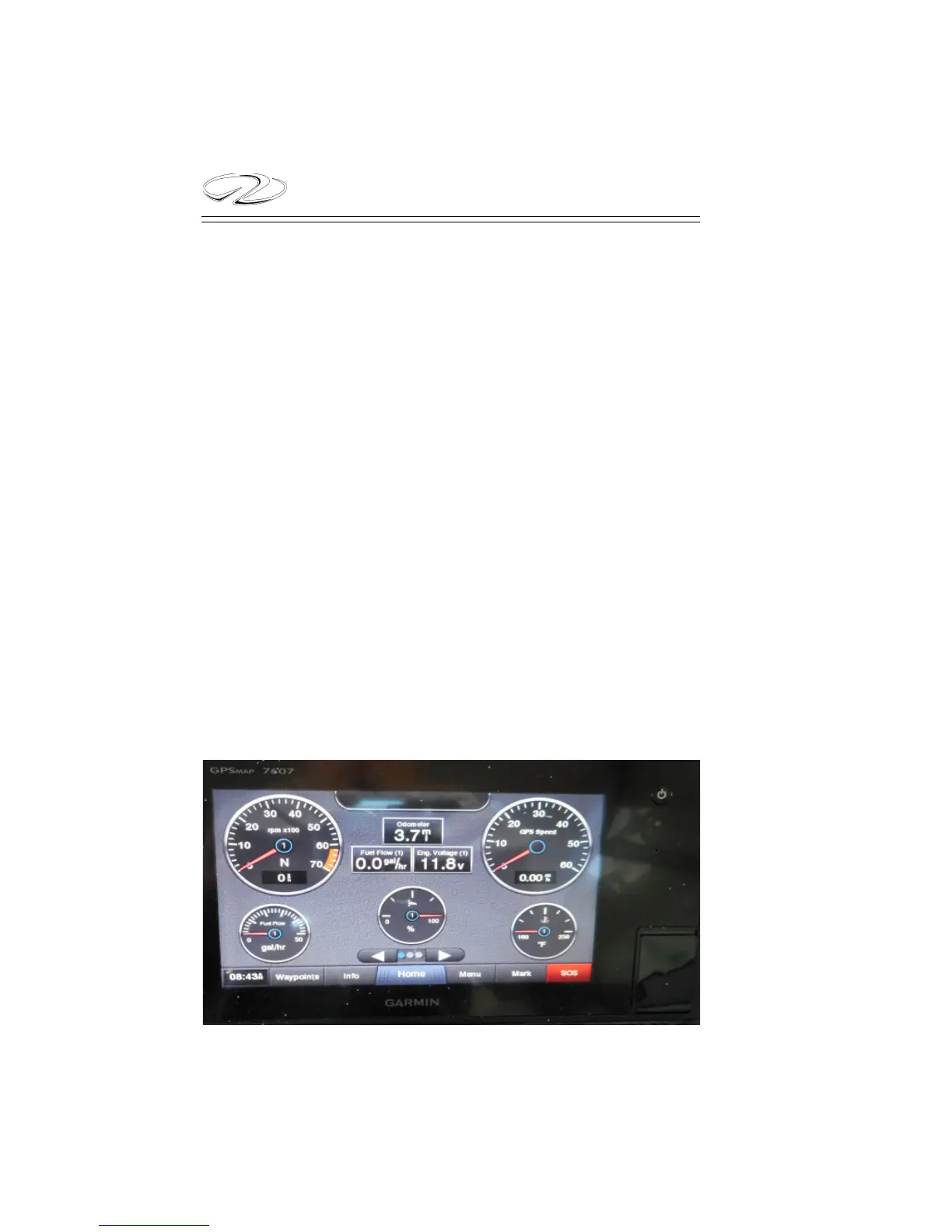

Garmin Engine Monitoring Display
A Garmin chartplotter is standard equipment on your Regal outboard.
It features many GPS features along with the ability to monitor engine
system functions including revolutions per minute (rpm’s),
GPS speed, voltage, fuel fl ow rate, trim, and temperature along with
tracking engine hours.
Note that the Garmin and Fusion circuitry use individual sources to
power up the system. The key switch does not power up these 2
systems. Also, the depth and fuel gauge displays are independent
of the Garmin engine displays.
1. To power up the Garmin GPS press the on button located on the
upper display.
2. The function AV/Gauges,Controls will appear as one of the choice
boxes. Press the box. Another screen with engine will appear.
3. Press the engine box and the engine gauge displays will appear (oil
pressure is engine code driven only); fuel level uses dash gauge to
display fuel levels).
