Engine & Controls
3-19
The main helm switch panel controls various vessel electrical
components.The main battery switch must be activated for most of
the switch functions to work except for the automatic side of the aft
bilge pump.. Below is a brief description of each switch. Note that
select switches may represent optional equipment that is not installed
on your vessel.

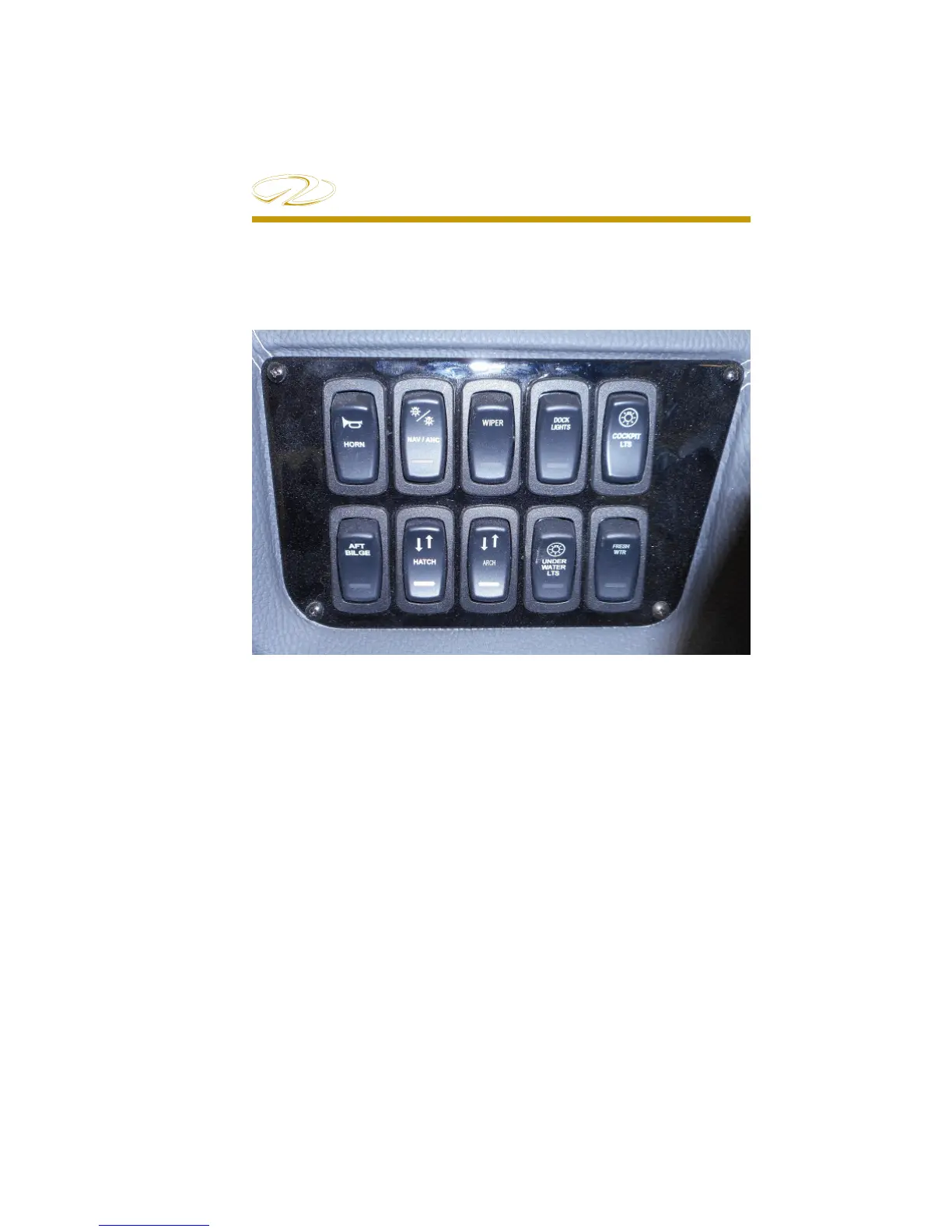

Main Switch Panel
Typical Panel
Horn
This momentary switch controls the electric bow horn located at the
starboard bow area. Make sure the horn is tested before each outing as
it can be valuable in navigation situations and can be used for bridge
communications. Normally there is an adjustment screw on the horn
top to alter the horn tone. Periodically inspect the horn hardware for
tightness and polish the horn grill located on the outside hull side.
