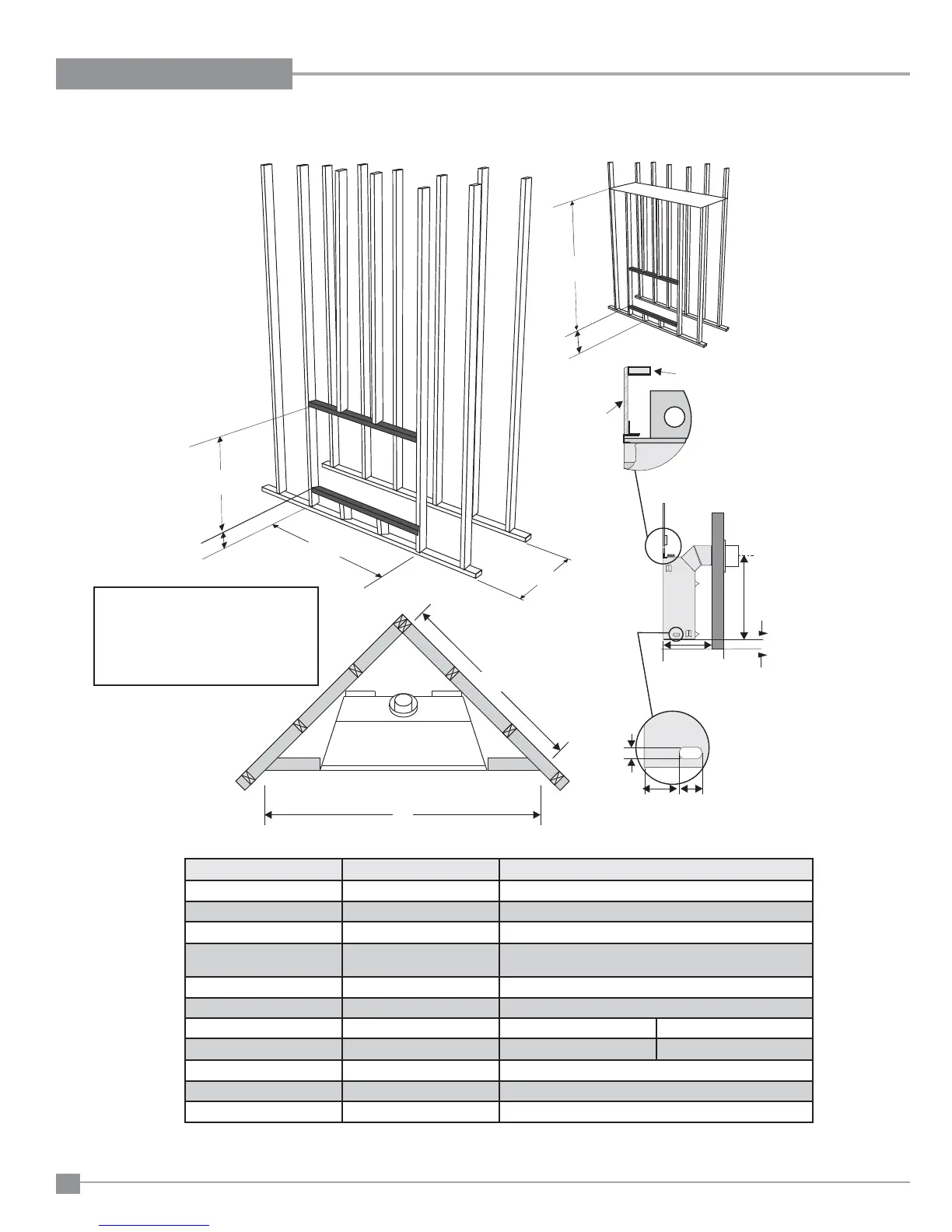

Regency P33-LP4 - Framing Dimensions with Contemporary Faceplate

14
Regency
®
P33-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
G
H
I
I
M
J
L
K
P
Q
O
N
10" (254mm)
dia. Hole through
wall Vent.
Opening for gas
connection
Top Header
.
Wood, drywall
or other facing
J
I
Floor
Framing Dimensions Description P33-4
G Framing Width 33-1/4"(845mm)
H Framing Height * 31-3/4" (806mm)
I Framing Rise from Floor 1" (25mm) Min.
J Framing Depth Vertical
Horizontal
19-1/2" (495mm) Vertical Rise
16-1/2" (419mm) Rigid / 12-3/4" (324mm) Flex
K Corner Wall Length 37-1/2" (953mm)
L Corner Facing Wall Width 53-1/4" (1353mm)
M Framed Chase Ceiling* 36" (914mm) Rigid 32" (812mm) Flex
N
Vent Centerline Height* 30" (762mm) Rigid 26" (660mm) Flex
O
Gas Connection Height* 1 1/2" (38mm)
P Gas Connection Inset* 4" (102mm)
Q Gas Connection Width* 3" (76mm)
FRAMING DIMENSIONS WITH CONTEMPORARY FACEPLATE
NOTE: If this is an outside corner, the
minimum distance between the vent
and the outside corner is 6" (15cm)
with AstroCap termination cap or 12"
(30cm) with Rigid Vent termination cap.
(For example Dura-Vent)
* Measured from base of unit.
