P33-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
with Co-linear Flex System for both
Residential & Manufactured Homes
into Masonry Fireplaces

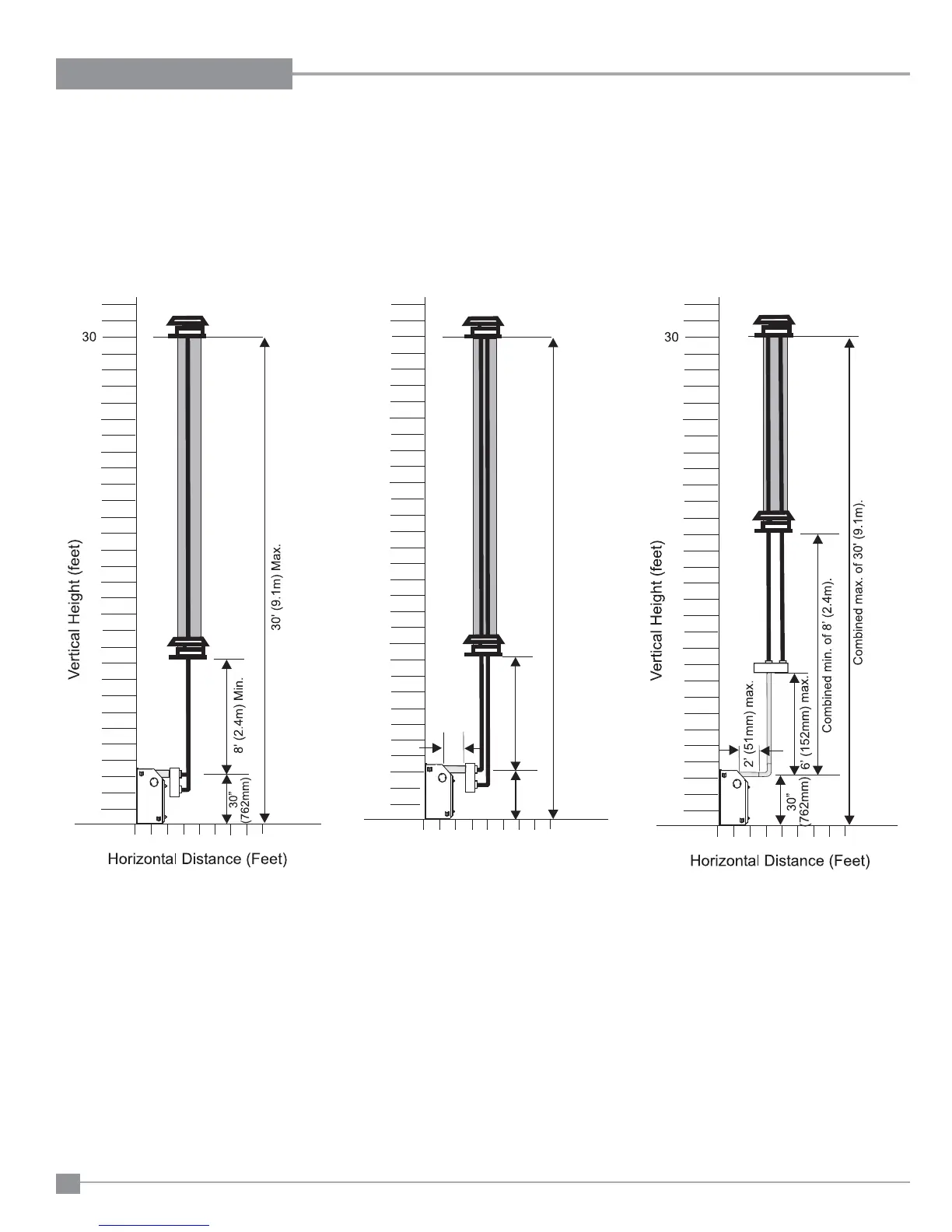

The shaded area in the diagrams show
the allowable vertical terminations.
8' (2.4m) Min.
30”
(762mm)
30' (9.1m) Max.
30
Horizontal Distance (Feet)
Vertical Height (feet)
2’ (51mm) max.
When using Contemporary Faceplate, unit must be raised 1".
