Regency P33-LP4 - NG to LP Conversion

34
Regency
®
P33-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Each Kit contains one LPG
Conversion Kit and one DC
Sparker Kit.
LPG Conversion Kit Contains:
Qty. Part # Description
1 904-163 Burner Orifi ce #54
1 904-434 Burner Orifi ce #56
(For use on P33-4 with Faceplate ONLY)
1 918-590 Decal "Converted to
LPG"
1 908-528 Red "LPG" label
1 904-529 5/32" Allen Key
1 910-037 LPG Injector
DC Sparker Kit Contains:
Qty. Part # Description
1 820-475 Bracket DC Sparker
1 820-476 Bracket DC Sparker
1 904-153 Washer #8 External Star
1 904-330 Nut 8-32 Hex
1 904-438 Plug Nylon 0.750 Hole,
Black (for H25 only)
1 904-531 Bushing Split Plastic
0.500 in.
1 904-543 Screw 8-32 x 3/4 Pan
Head
2 904-553 Screw #8 x 1/2 Type
"B", Black Oxide
1 910-073 Spark Generator
Battery Holder
1 910-074 Spark Generator
Switch C/W Wire
1 910-078 Battery Size AA
Energizer En91
2 910-199 Clip Wire Holder
1 910-903 Wire Fan To Power Cord
Ground 30 in.
904-781 Velcro Hook, Black
904-782 Velcro Hook, Black

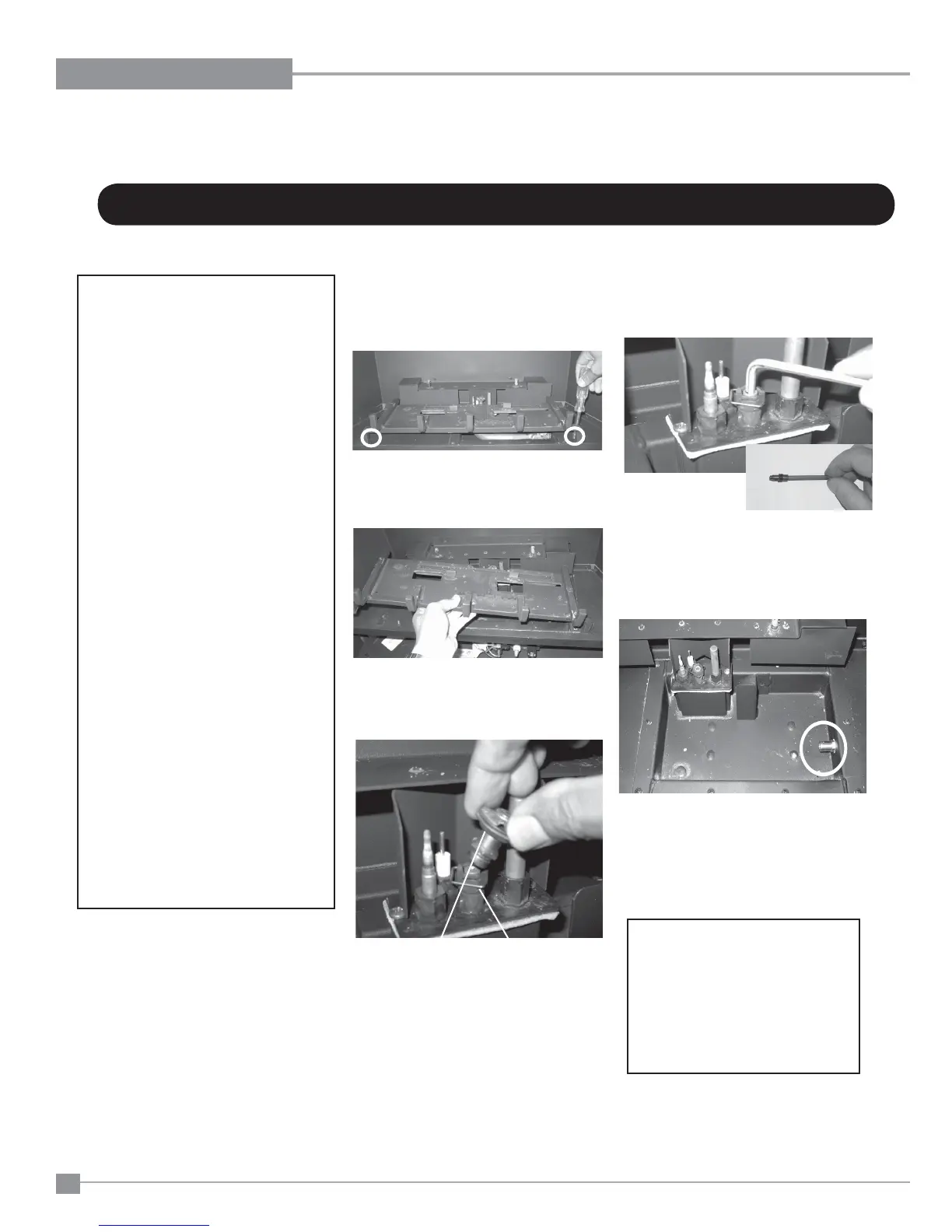

Remove the 2 screws, push Burner
Assembly to the left and lift out.
Installation of the LPG
Conversion Kit:
1) Shut off the gas supply.
2)
a) Remove the louvers, bay door or
faceplate if installed.
b) Open the fl ush door and remove the
door.
c) Remove the logs, embers, and brick
panels (if used).
Pilot assembly is now accessible for
steps 4) to 9).
d) Remove the 2 screws holding the
Burner Assembly to the fi rebox base.
Push the Burner Assembly to the left
and lift out.
4) Unscrew the pilot orifi ce with the Allen
key and replace with the LPG pilot orifi ce
in the kit and replace pilot cap.
5) Remove burner orifi ce with a 1/2"
wrench and discard. Use another
wrench to hold on to the elbow behind
the orifi ce.
Burner Orifi ce
6) Reinstall new burner orifi ce LPG
stamped #54 and tighten.
3) Undo clip and remove pilot cap to
expose pilot orifi ce.
Clip
Pilot Cap
Warning
Must install LPG Orifi ce #54 for use
with Flush, Louver, or Bay Door.
Must install LPG Orifi ce #56 for use
with Faceplate.
NOTE: See page 1 for H25 / H27 conversion instructions and page 7 for E33S / U32S conversion instructions.
CONVERSION KIT# 434-969 FROM NG TO LP
For P33-4 Using SIT 820 NOVA Gas Valve
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
