P33-4 Zero Clearance Direct Vent Gas Fireplace
23
INSTALLATION
• Vent must be supported at offsets.
• Firestops are required at each fl oor level and whenever passing through a wall.
• Maintain clearances to combustibles.
• When using Contemporary Faceplate, unit must be raised 1".
Note: Must use optional rigid pipe adapter when using rigid vent systems (Part # 510-994).
RIGID PIPE VENTING ARRANGEMENTS
Vertical Terminations
(Propane & Natural Gas)

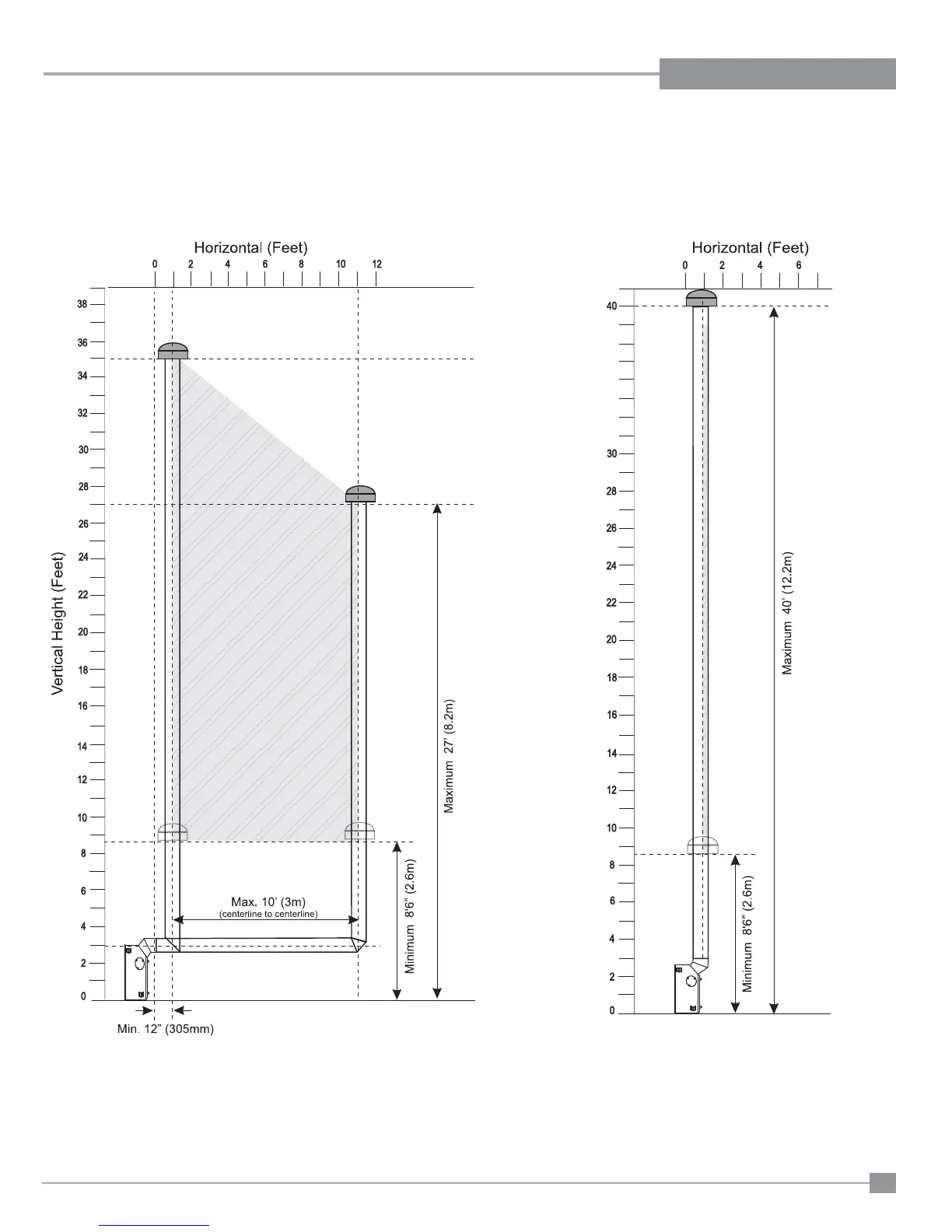

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90
o
elbow, with rigid pipe
vent systems for Propane and Natural Gas.
