14 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
14
installation
FINISHING
Non-combustible
Material
J-styleTrim
or metal corner bead
may be used to finish these
edges
Material
Combustible
Material

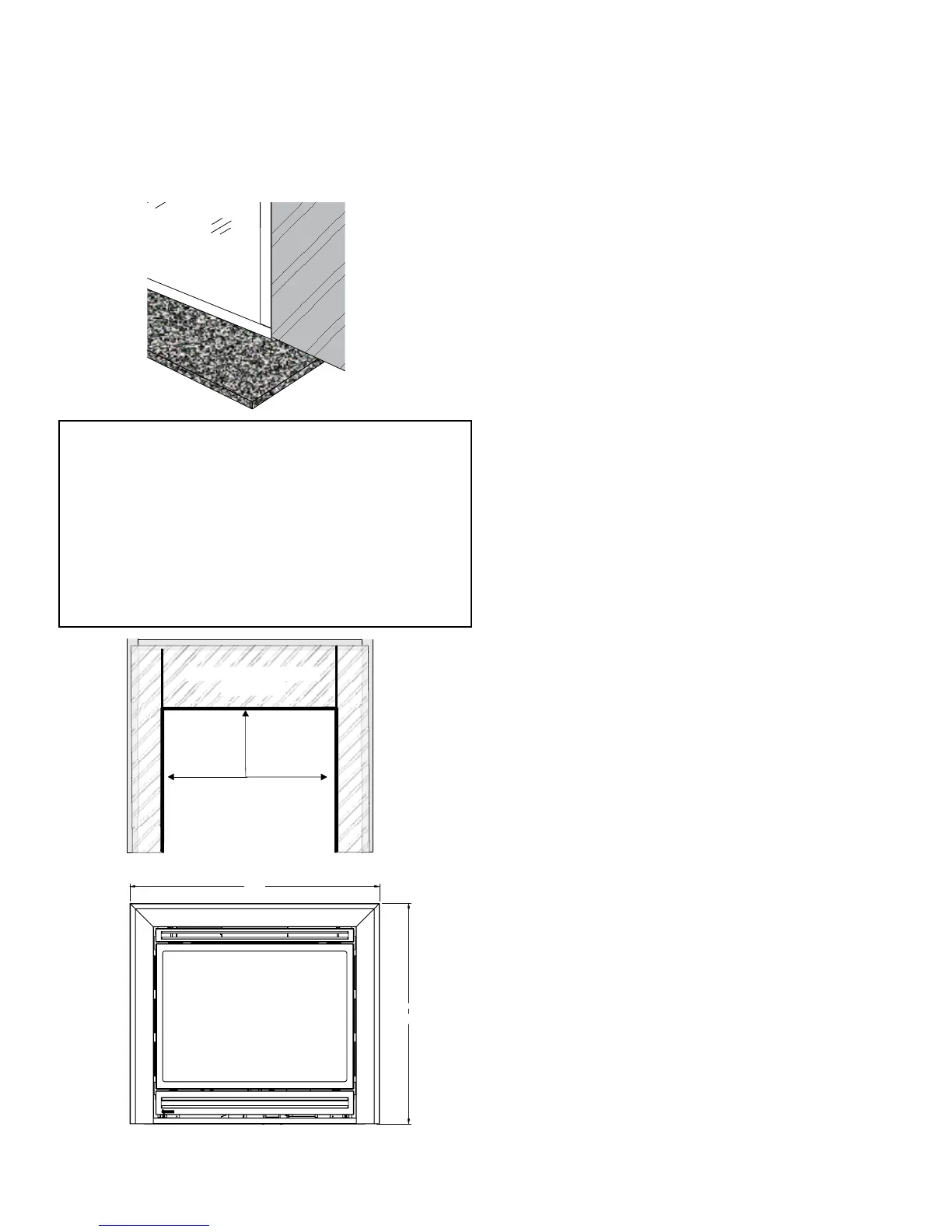

Diagram 2
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into final position - it is important to know the total
thickness / height of finished hearth (tile, carpet, etc.) The base of the
fireplace should be level or higher than the finished hearth height.
Diagram 3 Shown with optional finishing trim
Note: All non-combustible and combustible facing material should
butt up cleanly to the flanges around the firebox opening.
Rough edges will be visible from the front view with the Vignette
faceplate - if not using the optional finishing trim.
To maintain a clean finished edge - it is recommended to install
the combustible facing material with the finished edge against the
fireplace / nailing strips.
Alternatively, you can use J Style Trim or Metal Corner Bead
to cover cut edges of the non-combustible facing material.
38
"
33
3
4
"
Diagram 1
