24 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
24
installation
RIGID PIPE VENTING ARRANGEMENTS
VERTICAL TERMINATIONS
(Propane & Natural Gas)

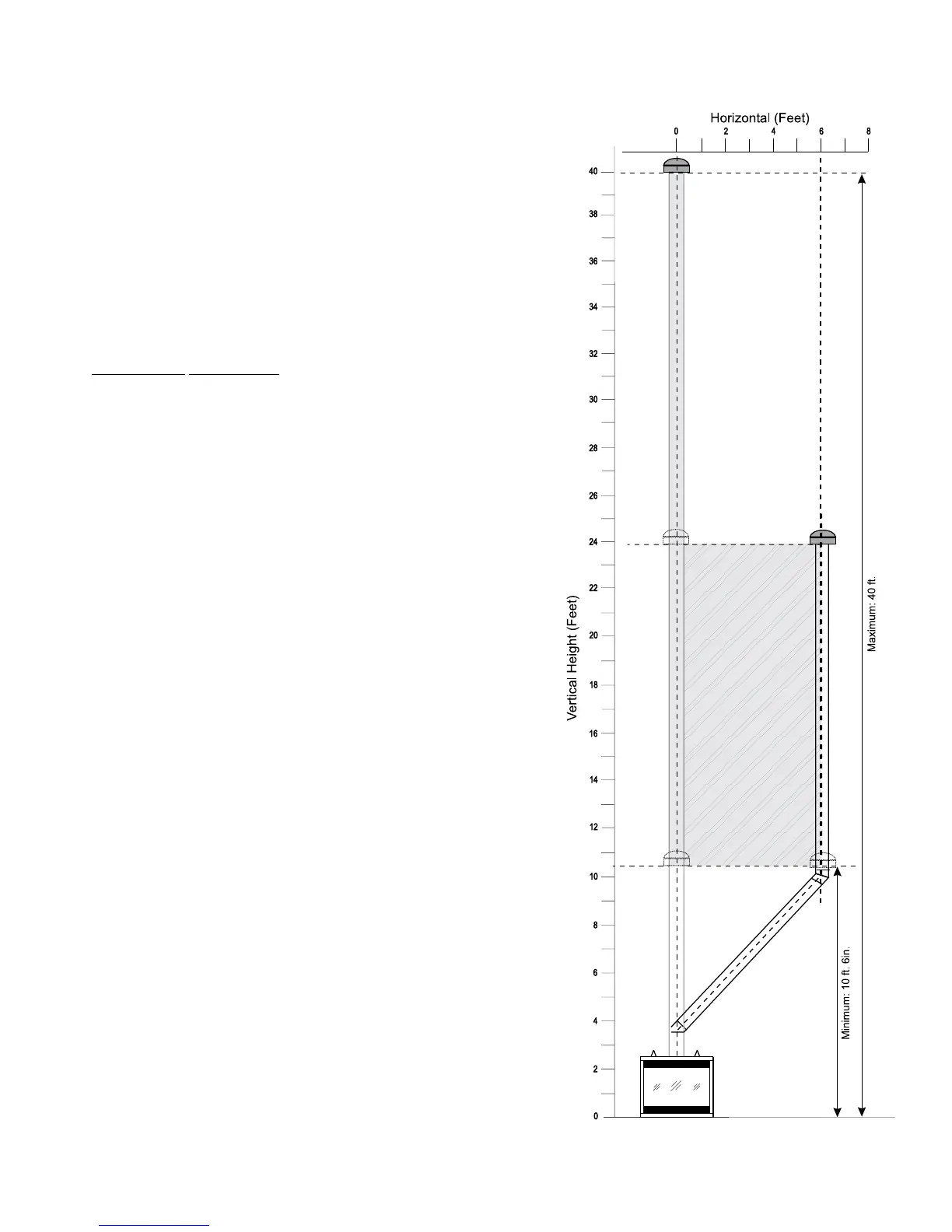

The shaded area in the diagram shows all allowable combinations of straight vertical and
offset to vertical terminations, using two 90
o
elbow, with Rigid Pipe vent systems for Propane
and Natural Gas.
Diagram 1
The P36 is approved for a 40 ft. straight vertical, with rigid pipe vent systems for Propane
and Natural Gas, as per the diagram 1.
The shaded area in the diagram 1 shows all allowable combinations of straight vertical
and offset to vertical terminations with rigid pipe vent systems for Propane and Natural
Gas. Maximum two 45
o
elbows allowed.
• Vent must be supported at offsets.
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
