P36-10 Zero Clearance Direct Vent Gas Fireplace | 39
|
39
installation
Diagram 3
Use the hook to pull the spring out until you can put the hook into the
slot on the bottom door bracket. Repeat for 2nd spring. See Diagram 3.
Diagram 2

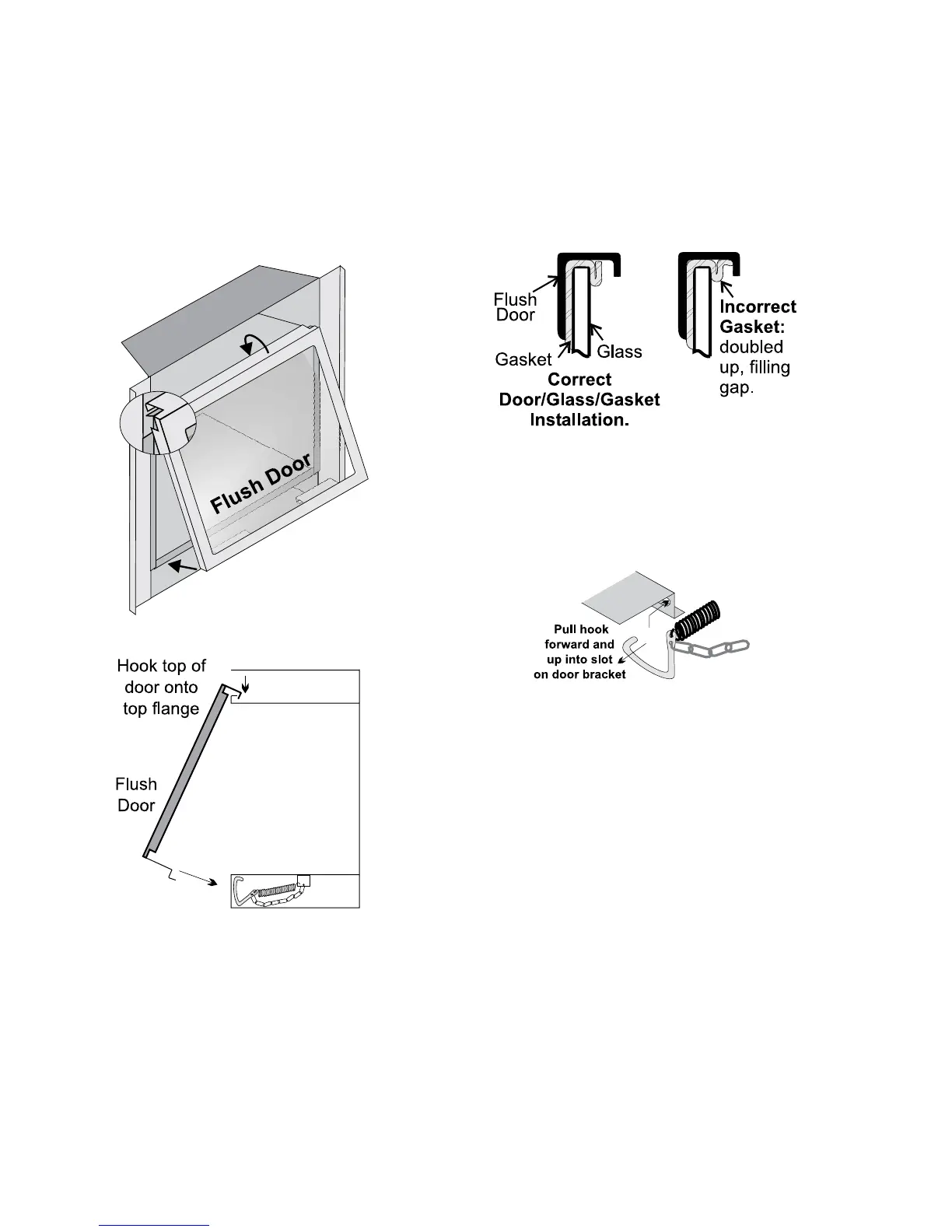

The standard flush door comes with a black frame. To install the frame,
simply hook the top door flange onto the top of the unit and swing the
door towards the unit, see Diagram 1.
Be careful that the glass gasket does not roll up; there must be a gap
between the gasket and the door lip to ensure that the door sits securely
on the unit, see Diagram 2.
Diagram 1
STANDARD FLUSH DOOR
To remove the flush door, reverse the above steps.
