VIGNETTE FACEPLATE AND SAFETY SCREEN INSTALLATION
1
11.05.14
919-471
Vignette faceplate and safety screen installation

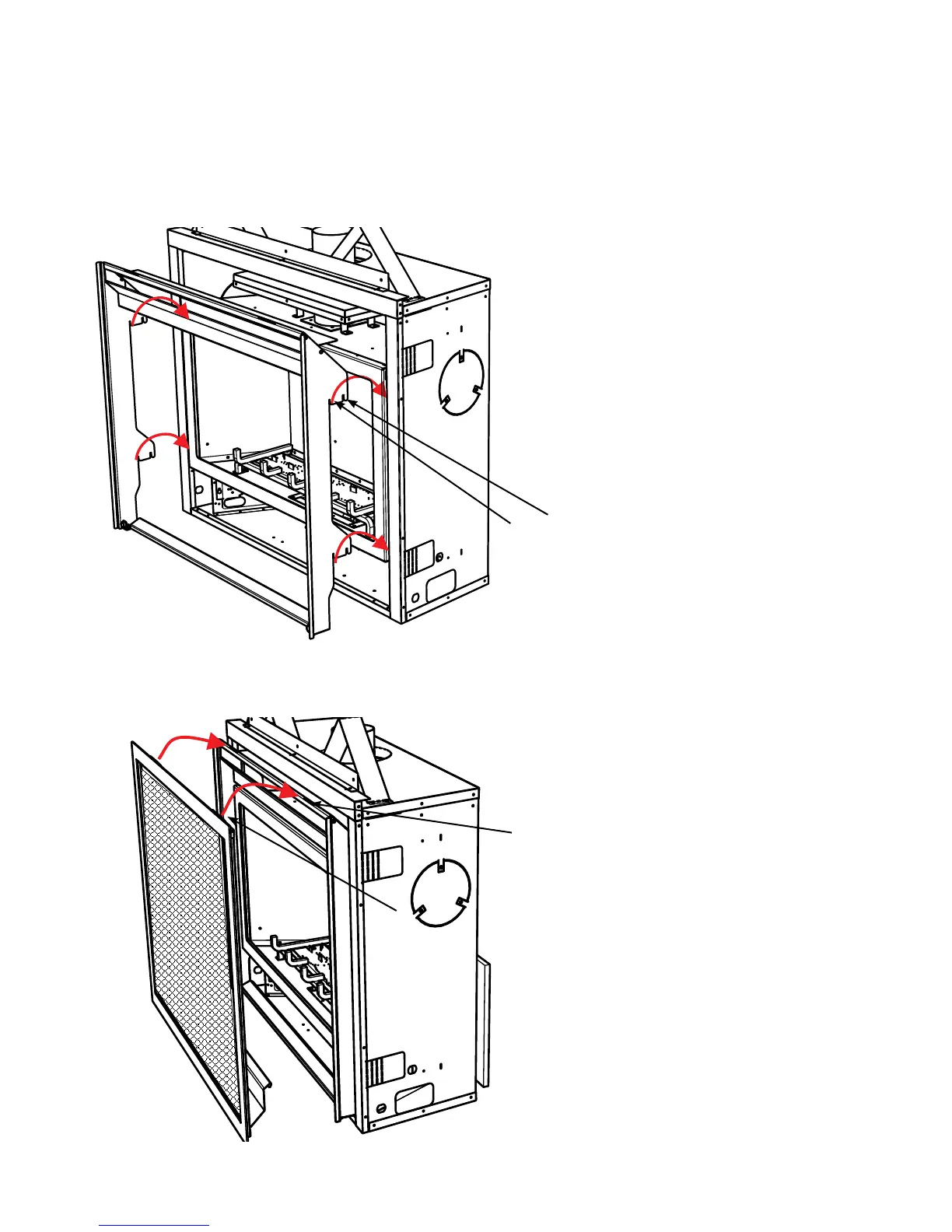

1. Hook the outer Vignette frame onto the unit. Brackets on the frame hook on to tabs in the
unit.
Note: Use the inner slots for the P36/P36E units and the outer slots for the P36D.
P36D
P36/P36E
Tab
Slot
2. Slot the tabs on the inner Vignette frame with safety screen into the
corresponding slots in the outer Vignette frame as shown below.
