38 | P36-10 Zero Clearance Direct Vent Gas Fireplace
|
38
installation
01/04/08908-734a
GAS FIREPLACE
P36
Page 3 of 3

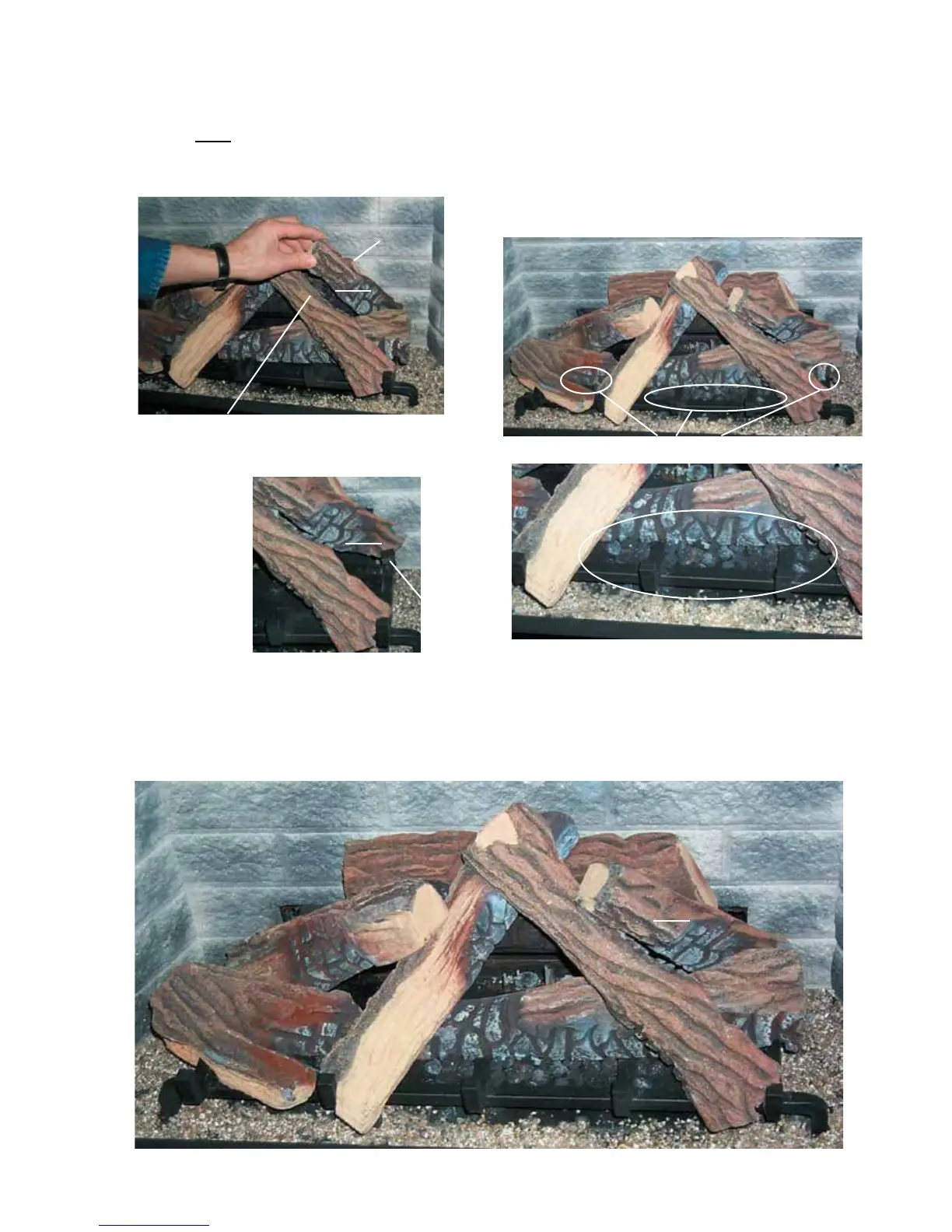

Use the indentation in log 02-54 to
locate log 02-52.
Photo shows rear
grate tab. Log 02-51
was removed to
show the positioning
of Log 02-52.
Rear
Grate
Tab
Place embers in these 3 locations on the burner tray.
02-52
02-49
02-51
02-54
02-52
02-54
02-50
02-55
02-49
02-53
02-51
02-54
02-52
9) Place Log 02-52 between Logs 02-51 and 02-49 and on
the indentation on Log 02-54. The bottom right end sits
behind the rear grate tab.
10) Place the embers on the front of the burner tray in the
places shown on the photo.
Separate platinum embers and place on the front burner on
and around the embers. Avoid stacking platinum embers.
Platinum embers may be placed over burner ports.
11) Te st fi re to ensure proper light off (make sure fl ame fl ows
smoothly from one end of burner to the other). If there is
any fl ame hesitation, check that area for any blockage of
the burner ports.
12) Install fl ush glass and bay glass (if used) as per instruc-
tions in this manual.
