5.9.2.3
Suction socket
➜ Install suction sockets at the same height
as the electrical outlets for a pleasing
appearance.

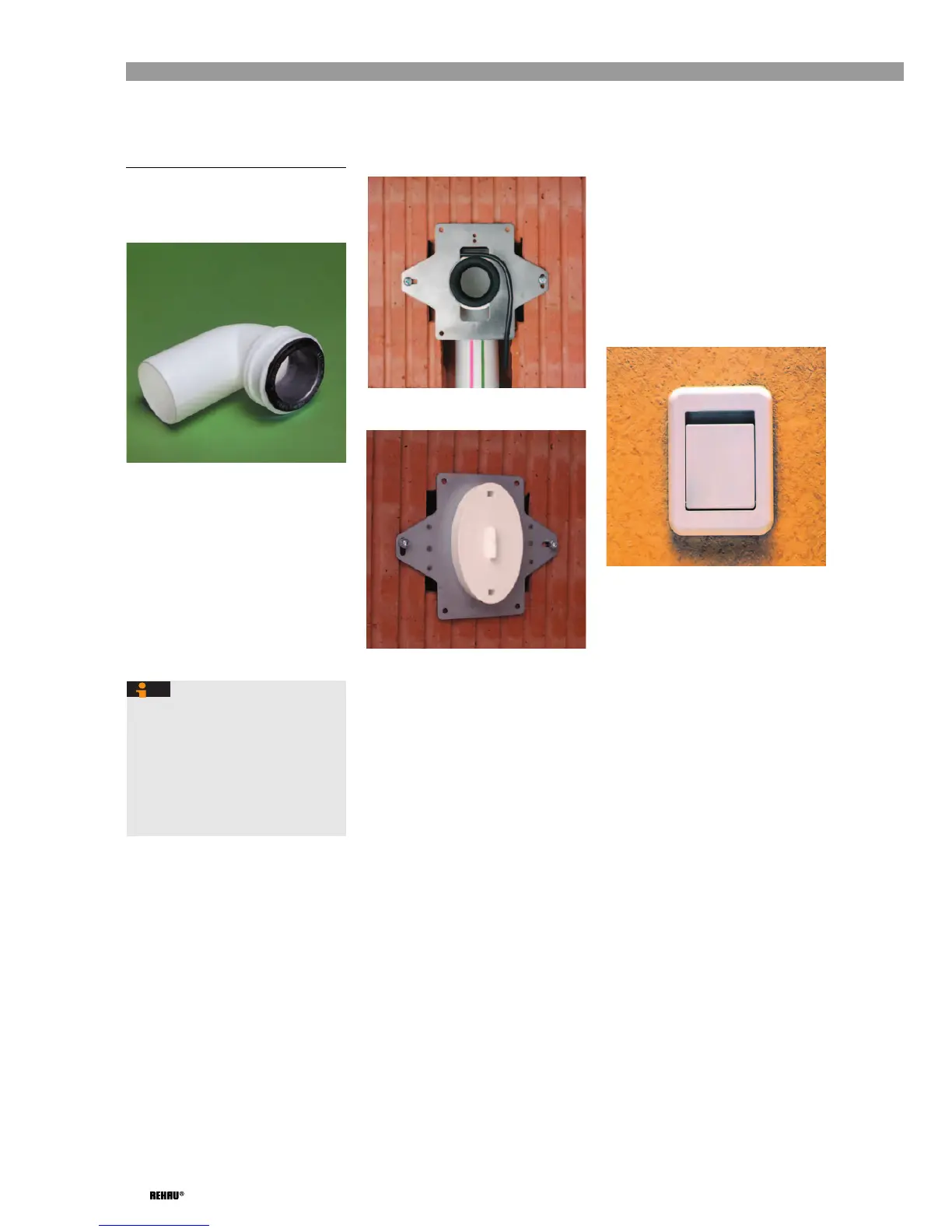

Fig. 5-34: Suction socket connecting bend
➜ Pull the suction socket adapter (black
rubber nipple, Item No. 243578-001) out
of the suction socket connecting bend.
➜ Attach suction socket connecting bend
onto the back of the mounting frame (Item
No. 243352-001) in such a way that the
holding plate runs in the groove of the
bend.
➜ Insert the pointed end of the suction
connecting bend into the sleeve of the
suction pipe running in the wall slot.
➜ Secure mounting frame vertically in the
wall.
➜ Reinsert suction socket adapter.
Fig. 5-35: Installed mounting frame and
control cable
Fig. 5-36: Mounting frame with plaster
cover
➜ Let the control cable (Item No. 243472-
001) project approx. 20 cm (see
Fig. 5-35).
➜ In order to plaster, attach the plaster cover
(Item No.: 242767-001) (see Fig. 5-36),
while laying the control cable into the cavity
of the plaster cover.
➜ To remove the plaster cover, insert a
narrow screwdriver into the slot, press the
clip toward the central bridge and pull off
plaster cover.
➜ Connect the control cable at the suction
socket.
➜ Apply a sliding agent to insertion end of
suction socket (Item No. 128933-002) and
press into the suction socket adapter.
➜ Screw in and tighten socket at mounting
frame (Cover opening faces upward or
downward).
➜ Press on the cover frame.
Fig. 5-37: Fully installed suction socket
The alignment of the suction socket is
defined by the vertical mounting of the
mounting frame.
The opening direction of the suction
socket cover is determined by the
installation direction of the mounting
frame (see mounting instructions of the
mounting frame (Brochure No.
00F2075 d,e,f)).
